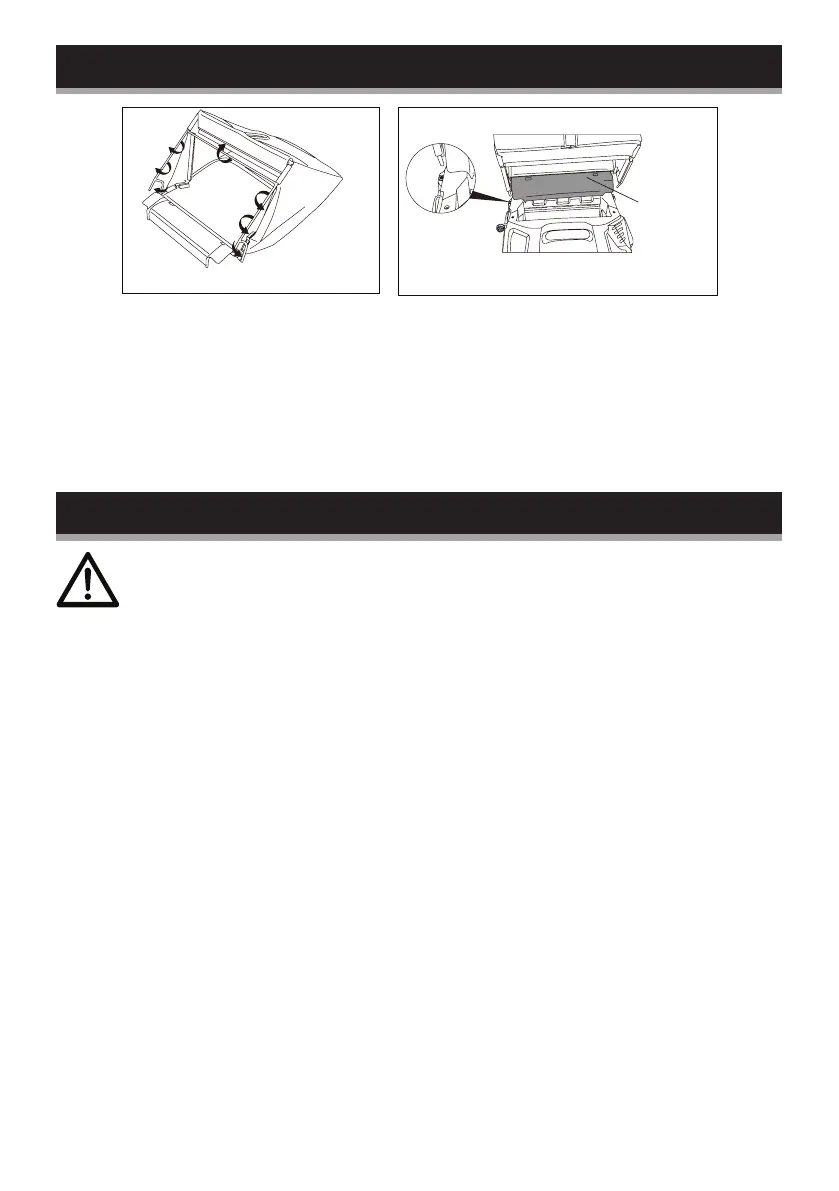

Assembling the grass bag to the machineAssembling the grass bag/frame
1. Fix all of the P-Clip plastic extrusions over the metal frame.
2. When assembling the grass bag onto the machine, lift the
front plastic cross strap and locate the pins into the slot holes
on the deck.
Note: Make sure the extension plastic part is on the bar above
front roller.
WARNING!
– Read all of the instructions in this manual before connecting
the machine to the power supply.
– If the insulation on a power cable or extension lead is found
to be cut or damaged, do not touch it! Disconnect the power
supply immediately and have the damaged cable replaced by
an authorised service agent.
– If operating the equipment in a damp location is unavoidable,
use a residual current device (RCD) protected supply. Use of an
RCD reduces the risk of electric shock.
– Use only extension cords suitable for outdoor use, preferably
with a high-visibility cable colour. Always unwind all extension
cables fully. Coiled cables can overheat and reduce the
efficiency of your product.
– For extension cables up to 15 metres, use a wire cross section
of 1.5mm
2
(cable diameter). For extension cables over 15
metres but less than 40 metres, use a wire cross section of
2.5mm
2
(cable diameter).
– This product is designed to operate on 230-240V AC 50Hz.
The voltage and current must comply with the information on
the ratings label!
Step 4 - Fitting the grass box
Step 5 - Connection to the power supply
