13. SPECIFICATION
Operating voltage: 4.0 V - 9.0 V
Power supply: 2s LiPo/LiIon, 2s LiFePo, 5s NiMH/NiCd
Current drain: When operating: approx. 185 mA
Idle current: approx. 30
µA
Output voltage: 5.9 V and / or 7.4 V stabilised
Current load: Peak 4 x 20 A
Dropout voltage: 0.3 V
Servo signal resolution: 0.5
µs
Variable frame-rate: 9 ms, 12 ms, 15 ms, 18 ms, 21 ms
Screen: LCD, 128 x 64 pixels, graphic
Servo sockets: 24 sockets
Channels: max. 18
Telemetry: Spektrum, HoTT, M-Link, Futaba, Jeti, JR
Dimensions: 136 x 83 x 20 mm
Weight incl. screen and switch: 250 g
Temperature range: -30°C to +75°C
EMV approval: EN 55014-1:2006
CE approval: 2004/108/EG

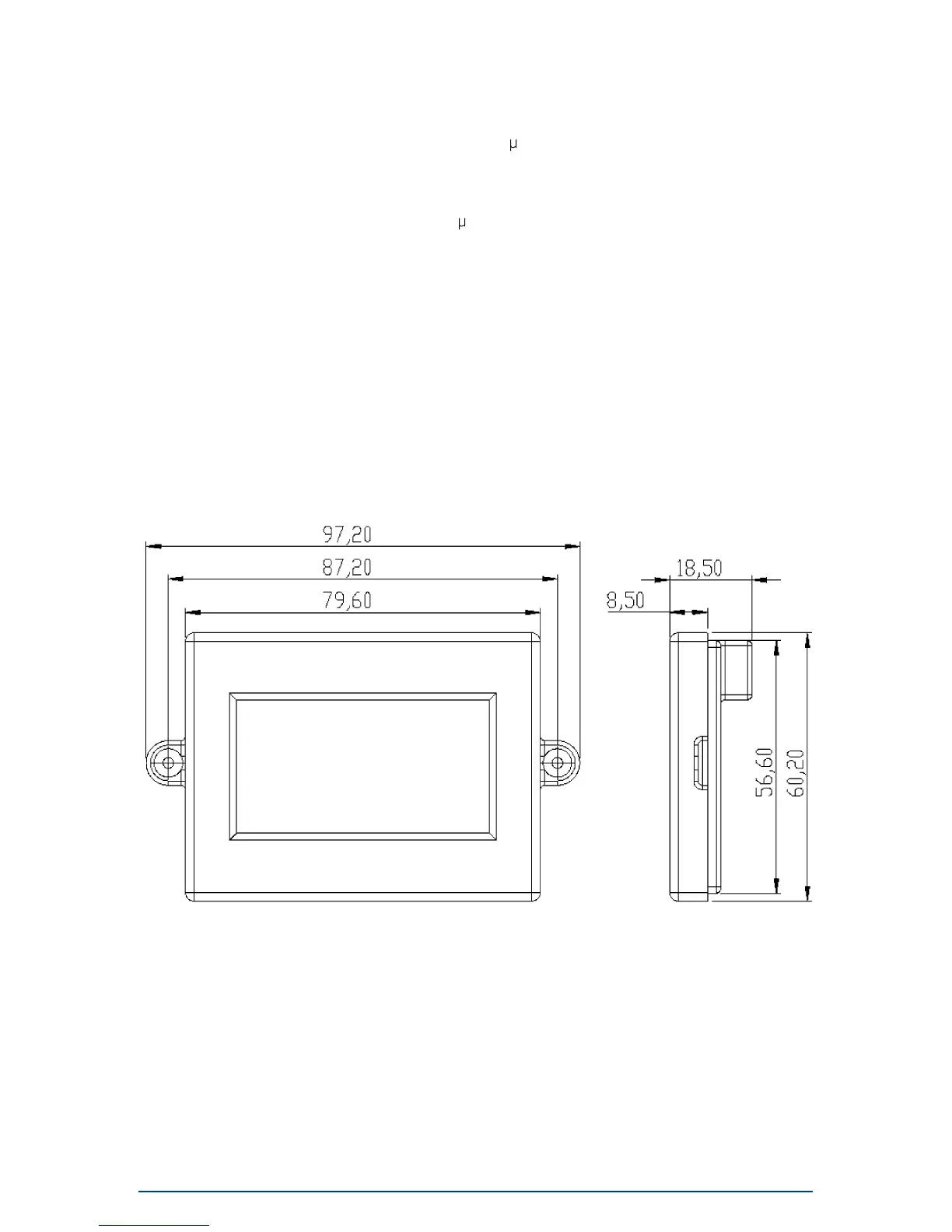

14. DIMENSIONS
