PowerDrive P1000FC - Page 5

Open
Emer. Retract
Com
Close
Com
Fire
Access
Alarm
Input 2
Alarm
Input 1
Test
SC
Battery Fuse 7.5A
Automotive Blade
OSE
Receiver
OSE
Transmitter
SELECT
Prg UP
Prg DOWN
L
5A
E N
Incoming Mains Supply
14
12
10
15
11
13
1918
18
19
17
16
11
Firefighter Access
Curtain Override
15
10
20
21

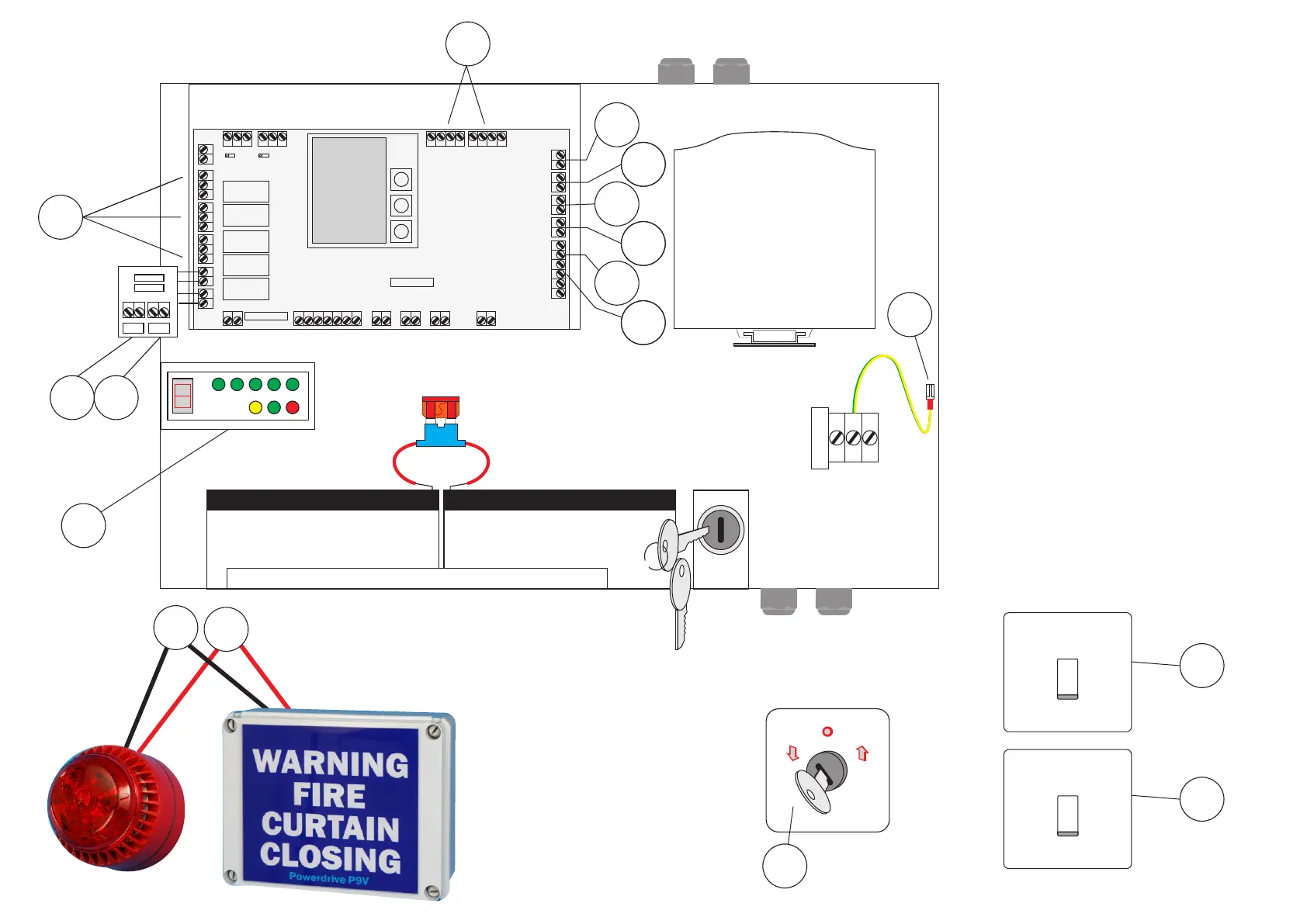

P1000 Connections
10. Emergency retract switch (user escape)
11. Key switch connection from lid. To fit
external key switch remove existing switch
connections
12. Test Input
13. Alarm Input 1 - Master Alarm
14. Alarm Input 2 - Secondary Alarm
15. Fire access input (firefighter access)
16. OSE Optical beam input
17. Volt free c/o relay outputs - programmable
18. 24V relay output for AV - programmable
19. 24V relay output for AV - programmable
20. LED indicator board
21. Grounding point for lid
RELAY 4
24V 0V
RELAY 5
24V 0V
