PowerMaster rsw User Manual

12

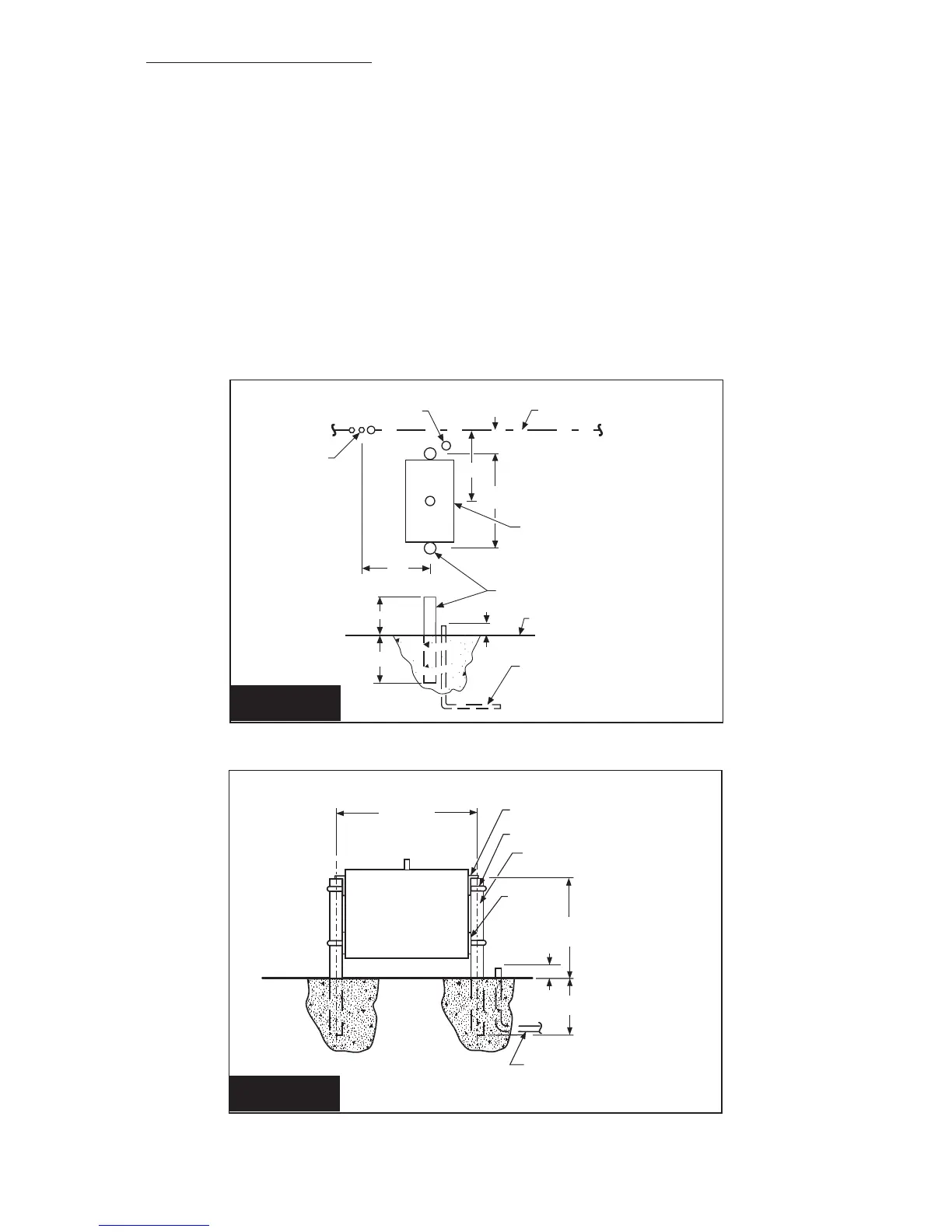

INSTALLATION LAYOUT
1. Layout mounting post and electrical conduit locations as shown in gures below.
Excavate required area for conduit installation and cementing of mounting posts
(Minimum of 2 feet deep. Check local codes.)
2. Set mounting post and electrical conduit in place.
3. Pour cement to secure mounting posts and let cure for two days prior to operator
installation.
Note: Distance between mounting posts and relative location to gate is very
important! Operator must be installed perpendicular to the fence.
GATE HINGE
GROUND LEVEL
17-3/8”
21-1/2”
APPROX. 16”
24” MIN.
4” MIN.
28”
18”
2” O.D. (MOUNTING POST) BY OTHERS
CENTER LINE OF FENCE
ELECTRICAL ACCESS
SIDE COVER
ELECTRICAL CONDUIT
PER LOCAL CODE
ELECTRICAL
CONTUIT
TOP MOUNTING ANGLE
2” U-BOLTS
ELECTRIAL CONDUIT PER
LOCAL CODE
APPROX. 16”
24” MIN.
4” MIN.
21-1/2”
LOWER
MOUNTING
PLATE
SWING GATE OPERATOR
2” O.D. (MOUNTING POST)
BY OTHERS
FIGURE 5
FIGURE 4
