RADIO CONTROL INSTALLATION
A three or four wire radio control
receiver can be installed on this
operator. This radio control receiver
can only be used to open the gate,
therefore the TIMER TO CLOSE option
must be activated for closing.
ACCESSORY CONNECTIONS
NOTE: If your radio’s connecting wires are not color coded as shown, see the radio’s
installation manual to determine which wires are for the normally open contacts and which
require the 24VAC Power Supply.
GREY
BLACK
RED
24 VAC
GREY
N.O.
CONTACT
4 WIRE
RADIO
SINGLE BUTTON
COMMON
TERMINAL A
TERMINAL B

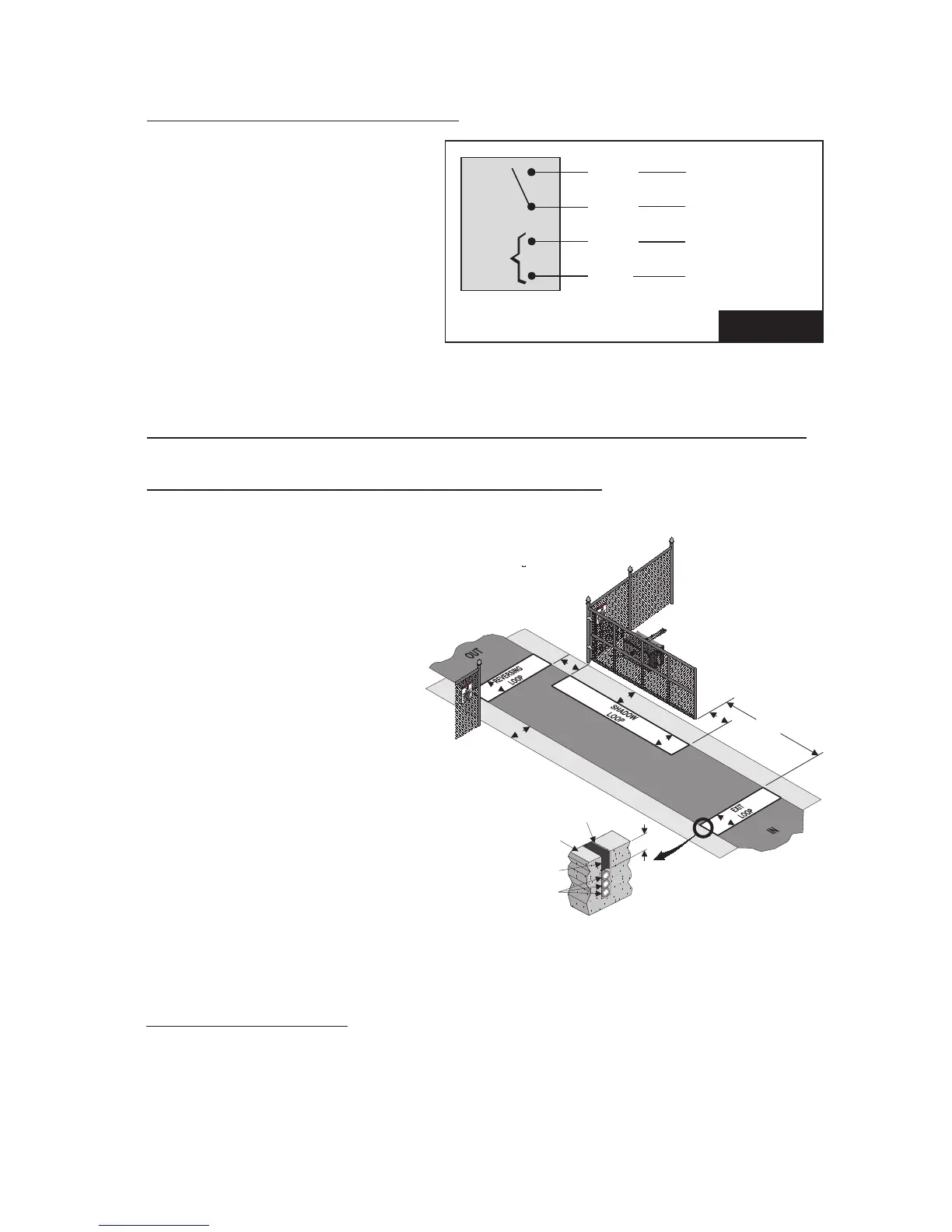

LOOP DETECTOR SYSTEMS AND INSTALLATION
The diagram on the right depicts the
typical loop options for a Swing Gate
installation.
1. The Exit Loop provides a signal
to open the gate when a vehicle
enters the loop zone.
2. The Reversing Loop protects
a vehicle in the loop zone from
being contacted with the gate by
overriding any close signal while
the gate is open, and by reversing
the gate if closing.
3. The Shadow Loop protects a
vehicle in the loop zone from
being contacted with the gate
by overriding any close signal
while the gate is in the full open
position.
4'
4'
4'
4'
4'
4'
4'
Road Surface
3/16” to 1/4”
Saw Slot
Sealant
Min 1”
Approx.
10’
Loop Wires
LOOP INSTALLATION
1. Lay out the desired loop locations per the diagram. The standard size chart on the
following page will give an approximate length of wire required for various loop
dimensions and number of turns required.
FIGURE 13
To Next Page
