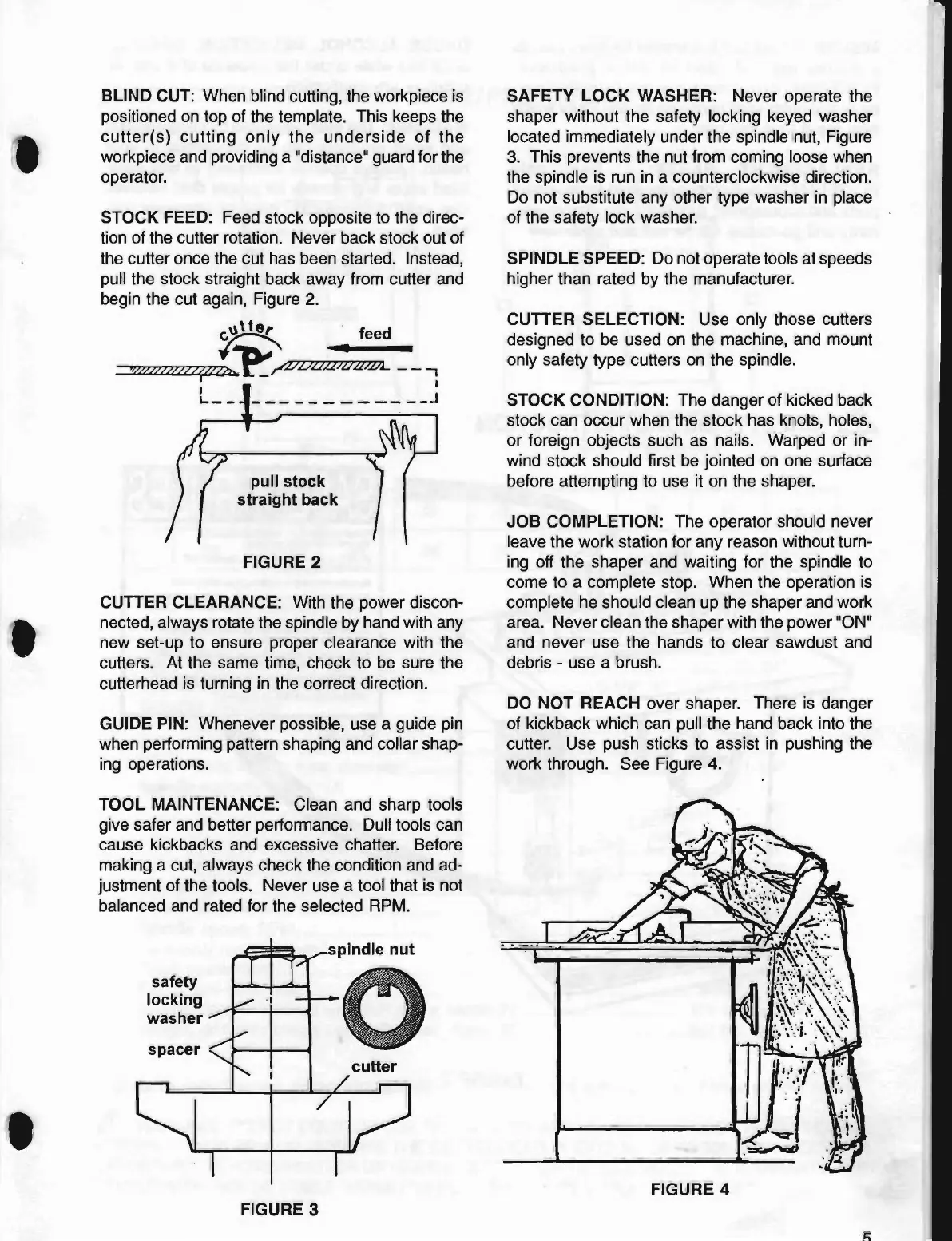

BLIND CUT: When blind cutting, the workpiece is
positioned
on
top of the template. This keeps the
cutter(s)
cutting
only
the
underside
of
the
workpiece and providing a "distance" guard for the
operator.
STOCK FEED: Feed stock opposite to the direc-
tion of the cutter rotation. Never back stock out of
the cutter once the cut has been started. Instead,
pull the stock straight back away from cutter and
begin the cut again, Figure
2.
~
. feed
~
..
W!mmzzf«~
L_.,.aw.zuz-/o:ZUbl..
-
--,
I I
L. _ _ _
___________
-1
pull
stock
straight
back
FIGURE 2
CUTTER CLEARANCE: With the power discon-
nected, always rotate the spindle by hand with any
new set-up to ensure proper clearance with the
cutters. At the same time, check to be sure the
cutterhead is turning in the correct direction.
GUIDE PIN: Whenever possible, use a guide pin
when performing pattern shaping and collar shap-
ing operations.
TOOL MAINTENANCE: Clean and sharp tools
give safer and better performance. Dull tools can
cause kickbacks and excessive chatter. Before
making a cut, always check the condition and ad-
justment of the tools. Never use a tool that is not
balanced and rated for the selected RPM.
safety
locking
washer
..........,~-f--~
spacer
FIGURE 3
SAFETY
LOCK
WASHER: Never operate the
shaper without the safety locking keyed washer
located immediately under the spindle nut, Figure
3.
This prevents the nut from coming loose when
the spindle is run
in
a counterclockwise direction.
Do not substitute any other type washer
in
place
of the safety lock washer.
SPINDLE SPEED: Do not operate tools at speeds
higher than rated by the manufacturer.
CUTTER SELECTION: Use only those cutters
designed to be used
on
the machine, and mount
only safety type cutters
on
the spindle.
STOCK CONDITION: The danger of kicked back
stock can occur when the stock has knots, holes,
or foreign objects such as nails. Warped or in-
wind stock should first
be
jointed on one surface
before attempting to use it on the shapero
JOB
COMPLETION: The operator should never
leave the work station for any reason without turn-
ing off the shaper and waiting for the spindle to
come to a complete stop. When the operation is
complete he should clean up the shaper and work
area. Never clean the shaper with the power
"ON"
and never use the hands to clear sawdust and
debris - use a brush.
DO NOT REACH over
shapero
There is danger
of kickback which can pull the hand back into the
cutter. Use push sticks to assist
in
pushing the
work through. See Figure 4.
FIGURE 4
