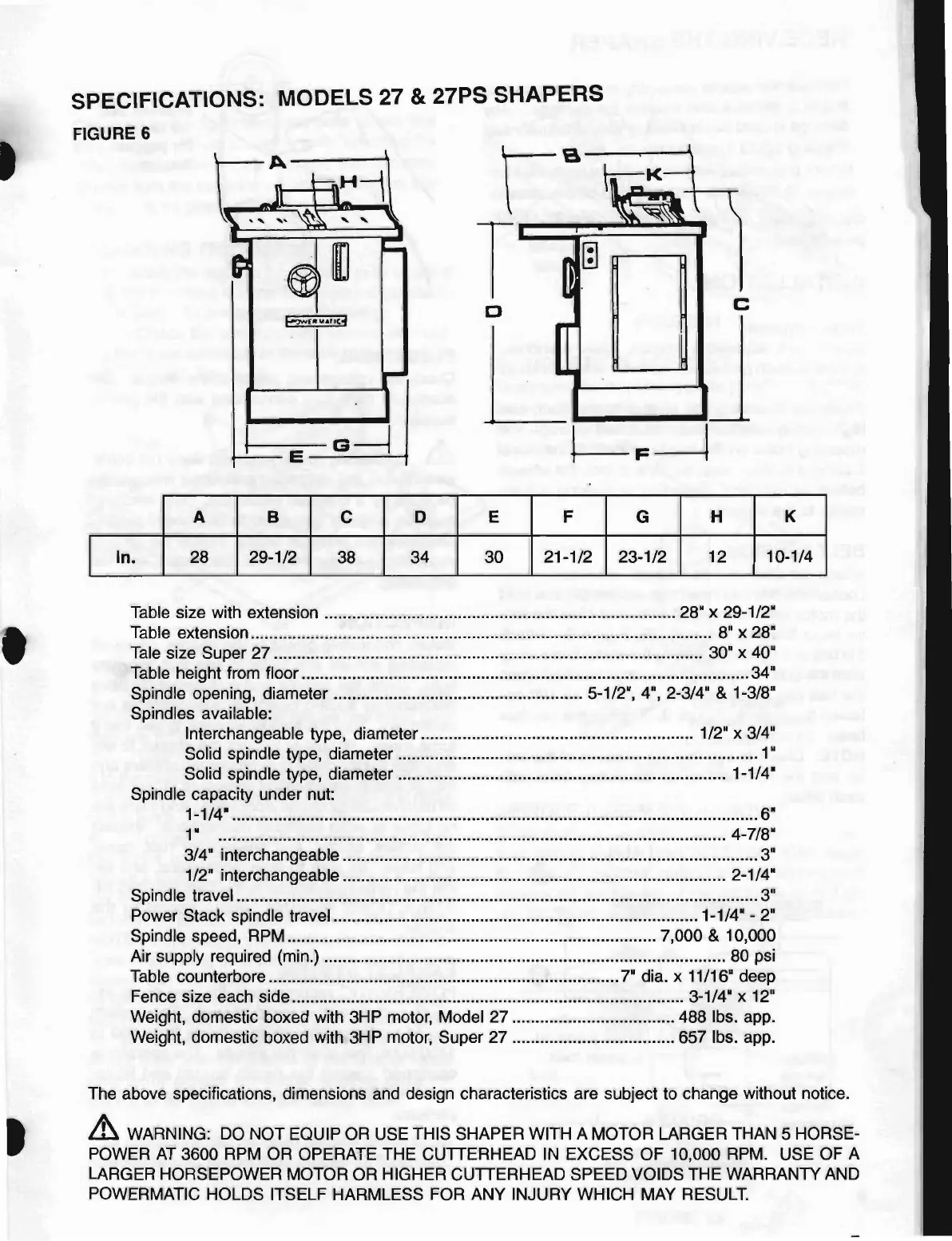

SPECIFICATIONS: MODELS 27 & 27PS SHAPERS
FIGURE 6
FiWr.".,.,1j
o
A B
C
0
E
F
c
G
H
K
I
In.
28 29-1/2
38
34
30
21-1/2 23-1/2 12
10-1/4
Table size with extension ............................................................................ 28· x 29-1/2·
Table extension .................................................................................................... 8· x 28·
Tale size Super 27 ............................................................................................. 30· x 40·
Table height from floor ................................................................................................. 34·
Spindle opening, diameter ...................................................... 5-1/2·, 4·, 2-3/4· & 1-3/8·
Spindles available:
Interchangeable type, diameter ........................................................... 1/2· x 3/4·
Solid spindle type, diameter .............................................................................. 1·
Solid spindle type, diameter ....................................................................... 1-1/4·
Spindle capacity under nut:
1-1/4· .................................................................................................................. 6·
1" .............................................................................................................. 4-7/8"
314" interchangeable .......................................................................................... 3"
1/2" interchangeable ................................................................................... 2-1/4"
Spindle travel ................................................................................................................. 3"
Power Stack spindle travel ............................................................................... 1-1/4" - 2"
Spindle speed, RPM ................................................................................ 7,000 & 10,000
Air supply required (min.) ....................................................................................... 80 psi
Table counterbore ............................................................................ 7· dia. x 11/16" deep
Fence size each side ..................................................................................... 3-1/4" x 12"
Weight, domestic boxed with 3HP motor, Model 27 ................................... 488 Ibs. app.
Weight, domestic boxed with 3HP motor, Super 27 ................................... 657 Ibs. app.
The above specifications, dimensions and design characteristics are subject to change without notice.
~ WARNING: DO NOT EQUIP OR USE THIS SHAPER WITH A MOTOR LARGER THAN 5 HORSE-
POWER AT 3600 RPM OR OPERATE THE CUTTERHEAD IN EXCESS OF 10,000 RPM. USE OF A
LARGER HORSEPOWER MOTOR OR HIGHER CUTTERHEAD SPEED VOIDS THE WARRANTY AND
POWERMATIC HOLDS ITSELF HARMLESS FOR ANY INJURY WHICH MAY RESULT.
