22

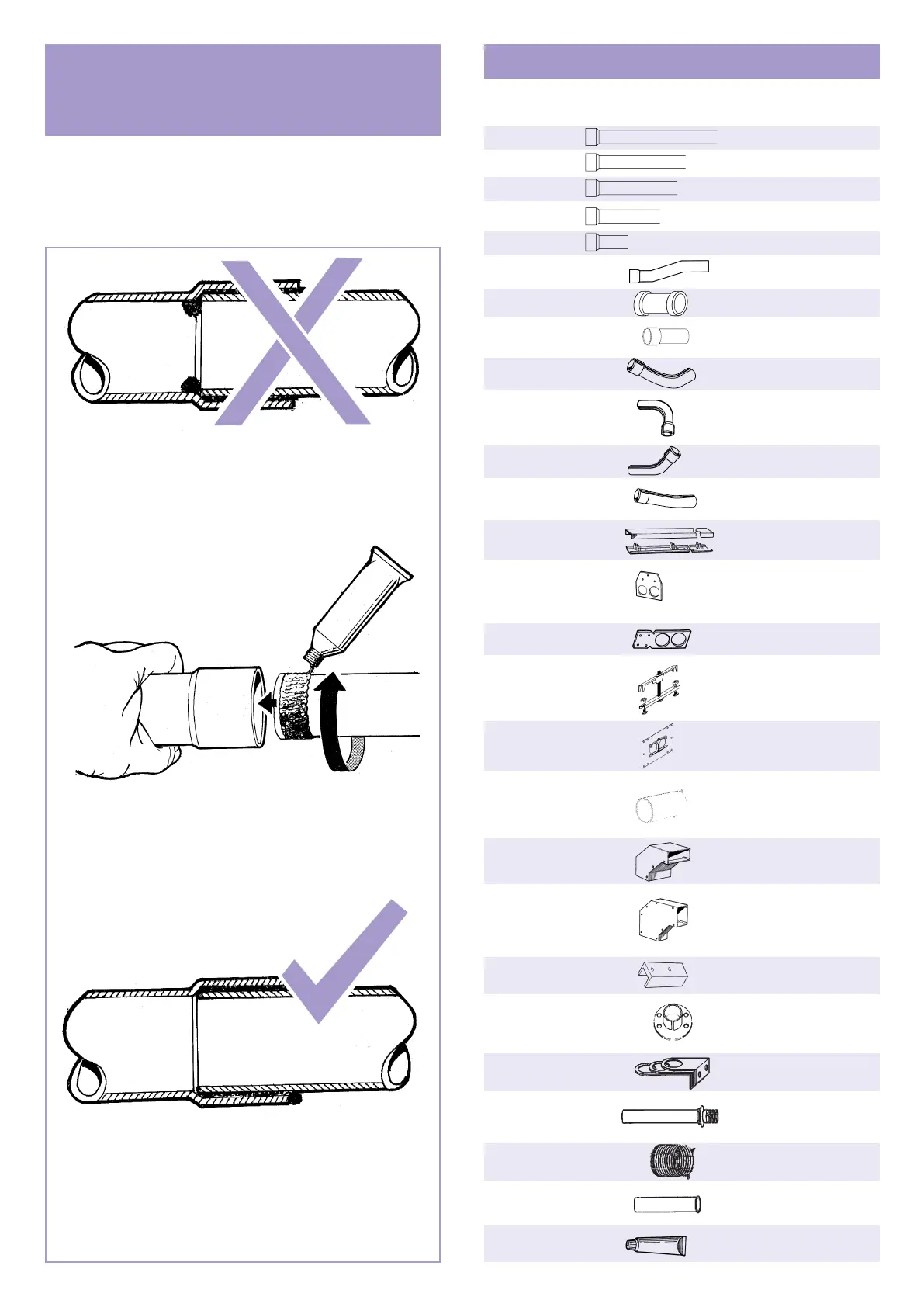

IMPORTANT – NOTICE
TO INSTALLERS
The sockets in Powermax Air/Flue pipes
are manufactured to close tolerances to
enable secure joints to be made with
minimum use of sealant.
Use of excessive sealant within the
socket must be avoided. Otherwise
sealant may be pushed in front of the
pipe (especially one that is not
deburred) thus causing a restriction
in the air/flue pipework.
Experience has shown that an
effective technique is to smear
silicone sealant around the
OUTSIDE of a DEBURRED pipe end
which is then inserted into the socket
with a twisting action.
Restricting the flue or air supply can impair
the operation of the Powermax appliance
and invalidate the manufacturer’s warranty.
Refer to Section 17 of Installation
Instructions before assembling extended
flues.
EXTENDED FLUE COMPONENTS
Air/Flue pipe 2.0m
socketed one end
Flue duct assembly c/w
clips and fastners
Silicone Sealant - tube
Air/Flue pipe 1.5m
socketed one end
Air/Flue pipe 1.0m
socketed one end
Air/Flue pipe 0.5m
socketed one end
Air/Flue Offset
400 x 42 crs.
Bend 90°
Bend 125°
Pipe support, horizontal
Pipe support, vertical
Front/Back Duct
Bend Assembly Kit
Long Wall Liner
800mm
Left/Right Duct Bend
Assembly Kit
Duct termination
assembly
Clamp Assembly
Liner Closure Plate
Assembly
Part No:
P300
P354
P355
P356
P357
P358
P385
P359
P320
P360
P361
P362
P363
P366
P315
P337
P372
P373
P369
P370
Wall Plate
P389
Flue Brackets (Set of 6)
P390
Mini Terminal
P386
Mini Terminal Guard
P209
Mini Liner
P388
Bend 135°
Bend 170°
Air/Flue pipe 3.0m
socketed one end
Slip Coupling (Kit)
P382
Flue Outlet Adaptor
(155 Only)
P338
Description
