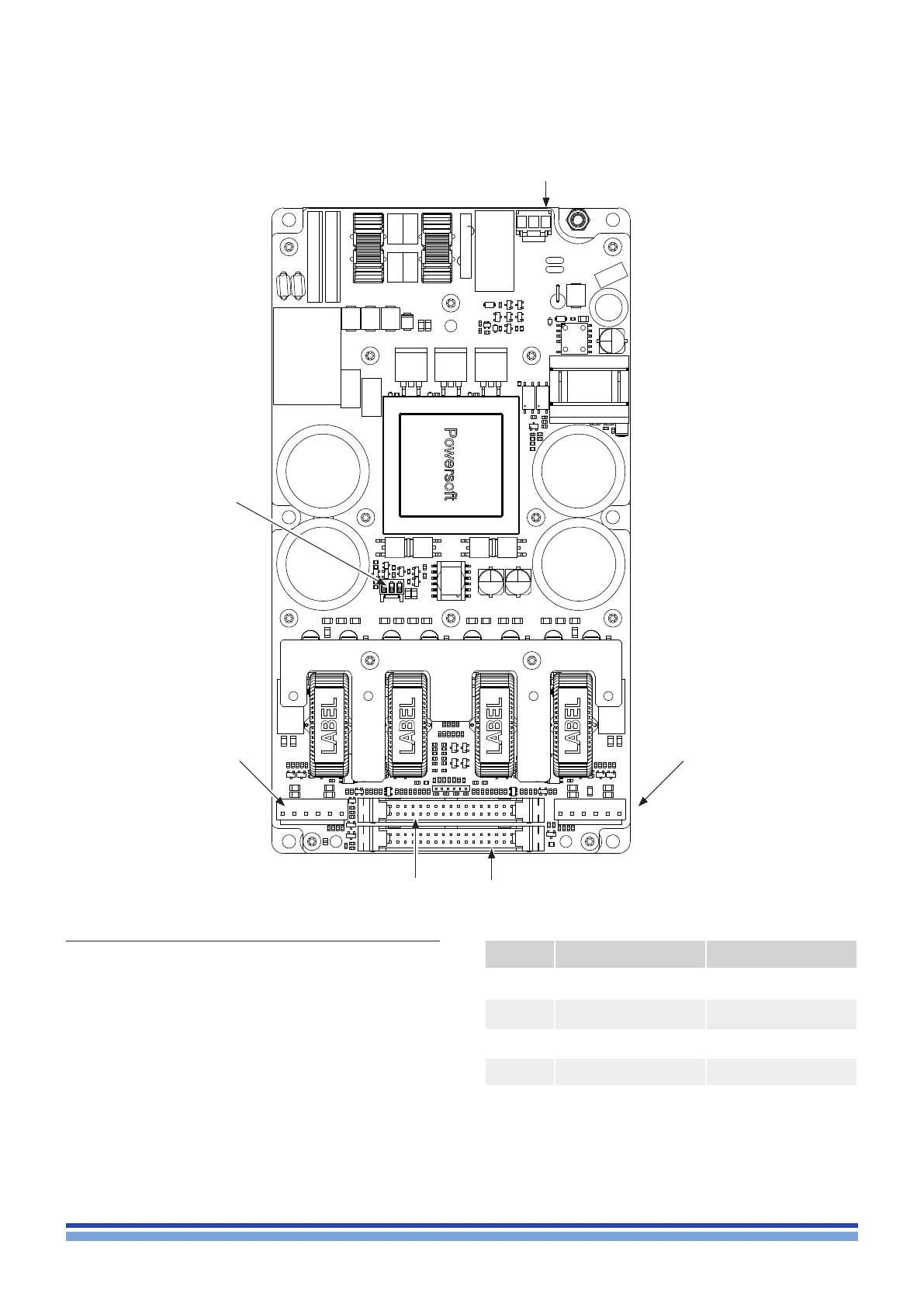

Connections
11 : 1.Grounding
The amplier module is intended to be assembled in an
End Product.
In the End Product, the metal plate of the amplier module
shall be mechanically xed and electrically connected to
conductive parts connected to protective earth – PE.
The main PE connector of the End Product shall be
connected to the chassis, or to the accessible conductive
enclosure parts, with suitable measures according the
standard and applicable national deviations.
Any EMI lter added into the mains cable must be
screwed to grounded metal parts of the chassis and its PE
cable must be connected to grounding point of end product.
11 : 2.Bill of connectors
CODE NAME TYPE
PL1000
PL3000
Input connector IDC socket 34 pin
PL1001
PL3001
Output connector JST B6P-VH
PL1 AC Mains JST B3P-VH
PL2 FAN Molex 22-27-2031
Mating connectors (not provided)
Loudspeaker wires housing: JST VHR-6N
Mains connector housing: JST VHR-3N
Terminals: SVH-41T_P1-1
Fan connector: Molex 22-01-2035
Terminals: KK 254 4809 series
PL1
PL2
PL3000 PL1000
PL1001PL3001
