powersoft LiteMod 4HC User Manual

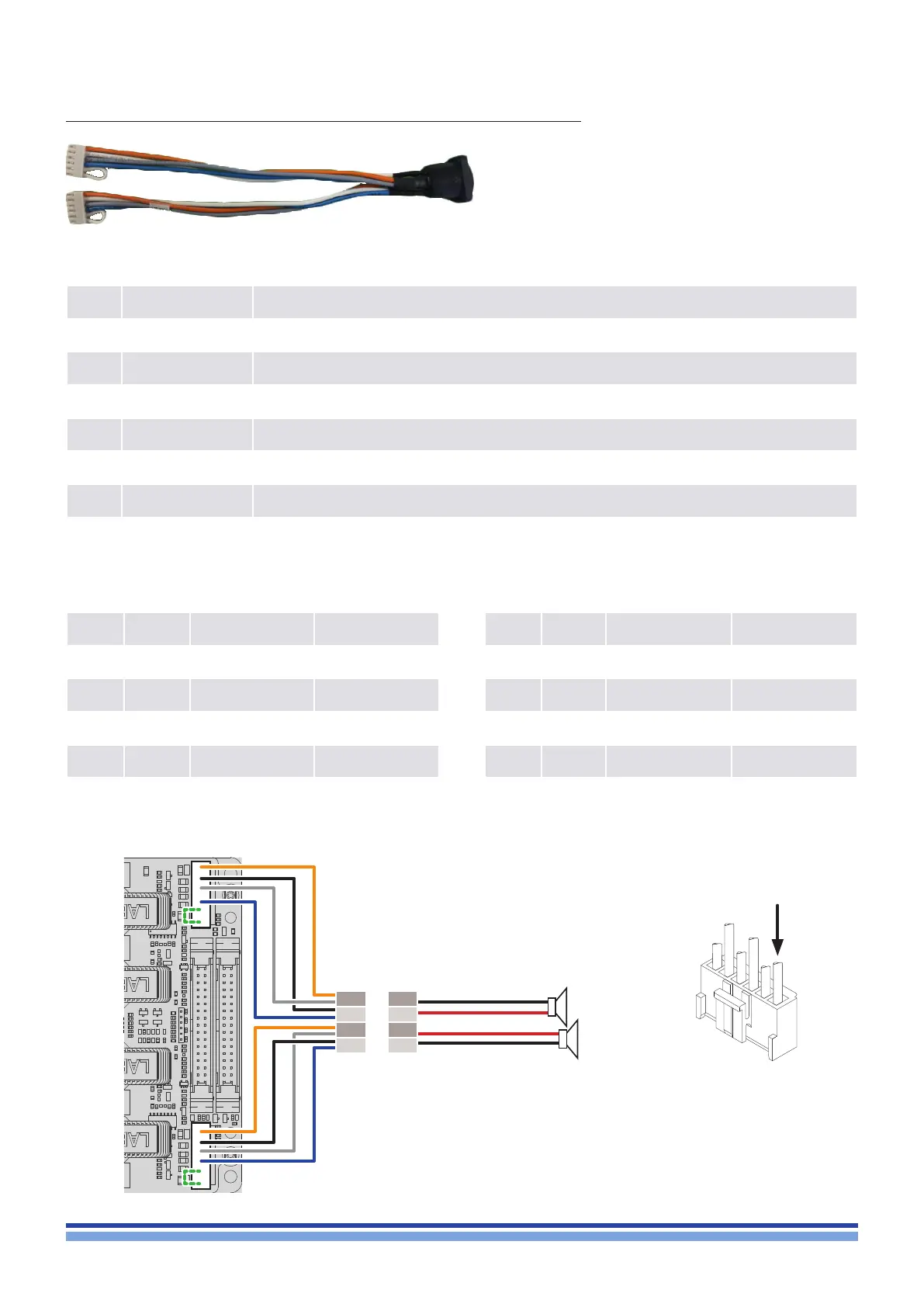

Cable Kit - KT000349 | 17
Bill of Materials
Q Part Description MPN / Specs
1 Speakon NL4MP-UC
2 JST Connector VHR-6N
8 JST Contacts SVH-21T-P1.1 (22 ~ 18 AWG), SVH-41T-P1-1 (20 ~ 16 AWG)
2 White Cable 16 AWG
2 Blue Cable 16 AWG
2 Orange Cable 16 AWG
2 Grey Cable 16 AWG
2 Loop Cable 16 AWG
Pin Out CH 1-3
JST Pin Cable Speakon Pin Speaker Pin
1 ORANGE 1- -
2 WHITE 1+ +
3 GREY 1- -
4 BLUE 1+ +
5 LOOP N.C. N.C.
6 LOOP N.C. N.C.
Pin Out CH 2-4
JST Pin Cable Speakon Pin Speaker Pin
1 ORANGE 2- +
2 WHITE 2+ -
3 GREY 2- +
4 BLUE 2+ -
5 LOOP N.C. N.C.
6 LOOP N.C. N.C.
-
+
+
-
13 : 4.Output cable, 2 x PTL conguration – CB000733
CH 1 - 3
CH 2 - 4
PIN 1
1-
1+
2-
2+
OUT 1
OUT 2
