Bill of Materials
Q Part Description MPN / Specs
1 Speakon NL4MP-UC
2 JST Connector VHR-6N
4 JST Contacts SVH-21T-P1.1 (22 ~ 18 AWG), SVH-41T-P1-1 (20 ~ 16 AWG)
2 White Cable 16 AWG
2 Blue Cable 16 AWG
2 Loop Cable 16 AWG
Pin Out CH 1-3
JST Pin Cable Speakon Pin Speaker Pin
1 N.C. N.C. N.C.
2 WHITE 1+ +
3 N.C. N.C. N.C.
4 BLUE 1+ +
5 LOOP N.C. N.C.
6 LOOP N.C. N.C.
Pin Out CH 2-4
JST Pin Cable Speakon Pin Speaker Pin
1 N.C. N.C. N.C.
2 WHITE 1- -
3 N.C. N.C. N.C.
4 BLUE 1- -
5 LOOP N.C. N.C.
6 LOOP N.C. N.C.
+
-

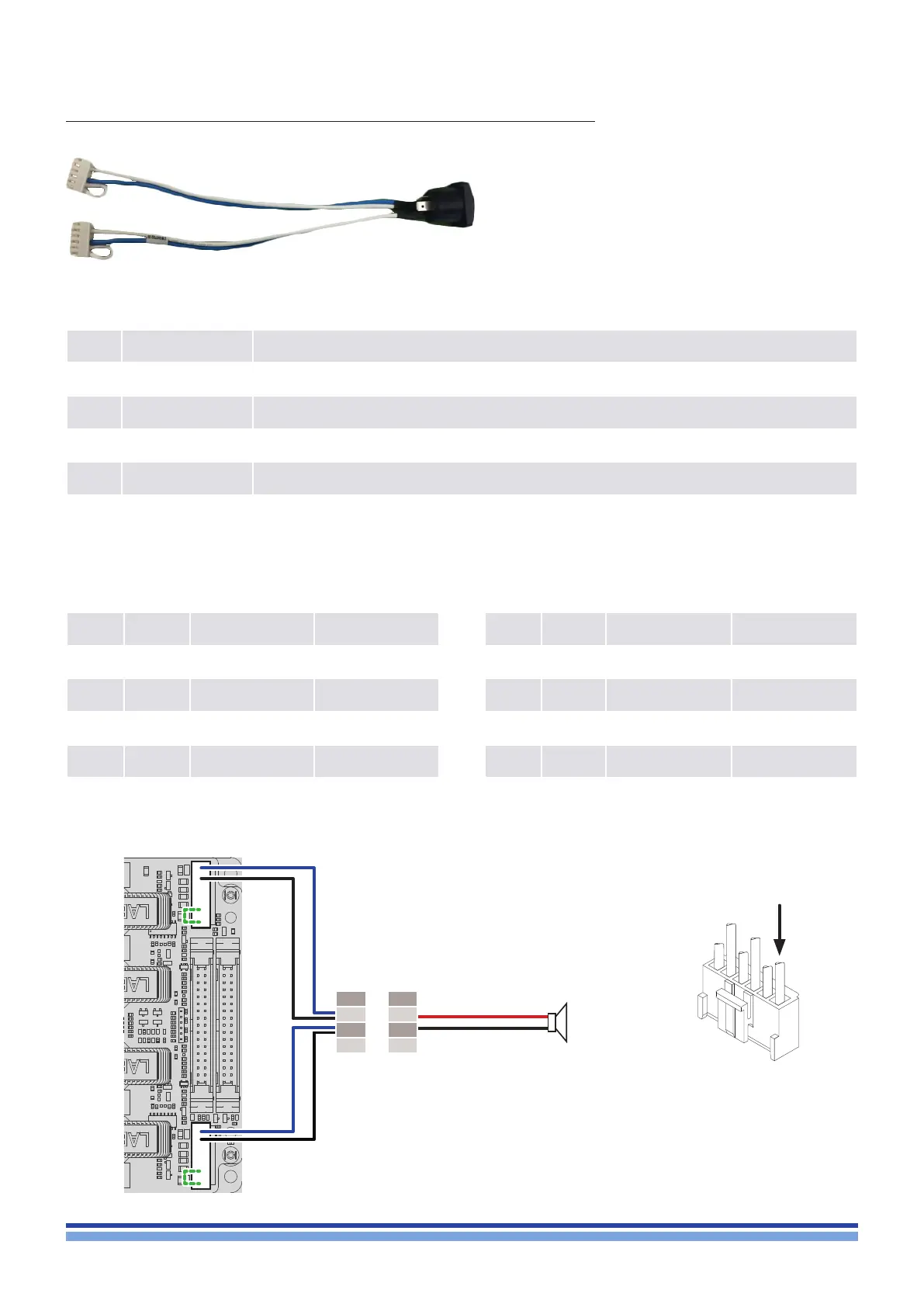

13 : 5.Output cable, 1 x PBTL conguration – CB000732
CH 1 - 3
CH 2 - 4
PIN 1
1+
1-
OUT 1
