powersoft LiteMod 4HC User Manual

16 | LiteMod 4HC | User guide
Bill of Materials
Q Part Description MPN / Specs
1 Speakon NL4MP-UC
2 JST Connector VHR-6N
4 JST Contacts SVH-21T-P1.1 (22 ~ 18 AWG), SVH-41T-P1-1 (20 ~ 16 AWG)
1 White Cable 16 AWG
1 Blue Cable 16 AWG
1 Orange Cable 16 AWG
1 Grey Cable 16 AWG
Pin Out CH 1-3
JST Pin Cable Speakon Pin Speaker Pin
1 N.C. N.C. N.C.
2 ORANGE 1- +
3 N.C. N.C. N.C.
4 BLUE 2- +
5 N.C. N.C. N.C.
6 N.C. N.C. N.C.
Pin Out CH 2-4
JST Pin Cable Speakon Pin Speaker Pin
1 N.C. N.C. N.C.
2 WHITE 1+ -
3 N.C. N.C. N.C.
4 GREY 2+ -
5 N.C. N.C. N.C.
6 N.C. N.C. N.C.
1-
2-
1+
2+
+
+
-
-

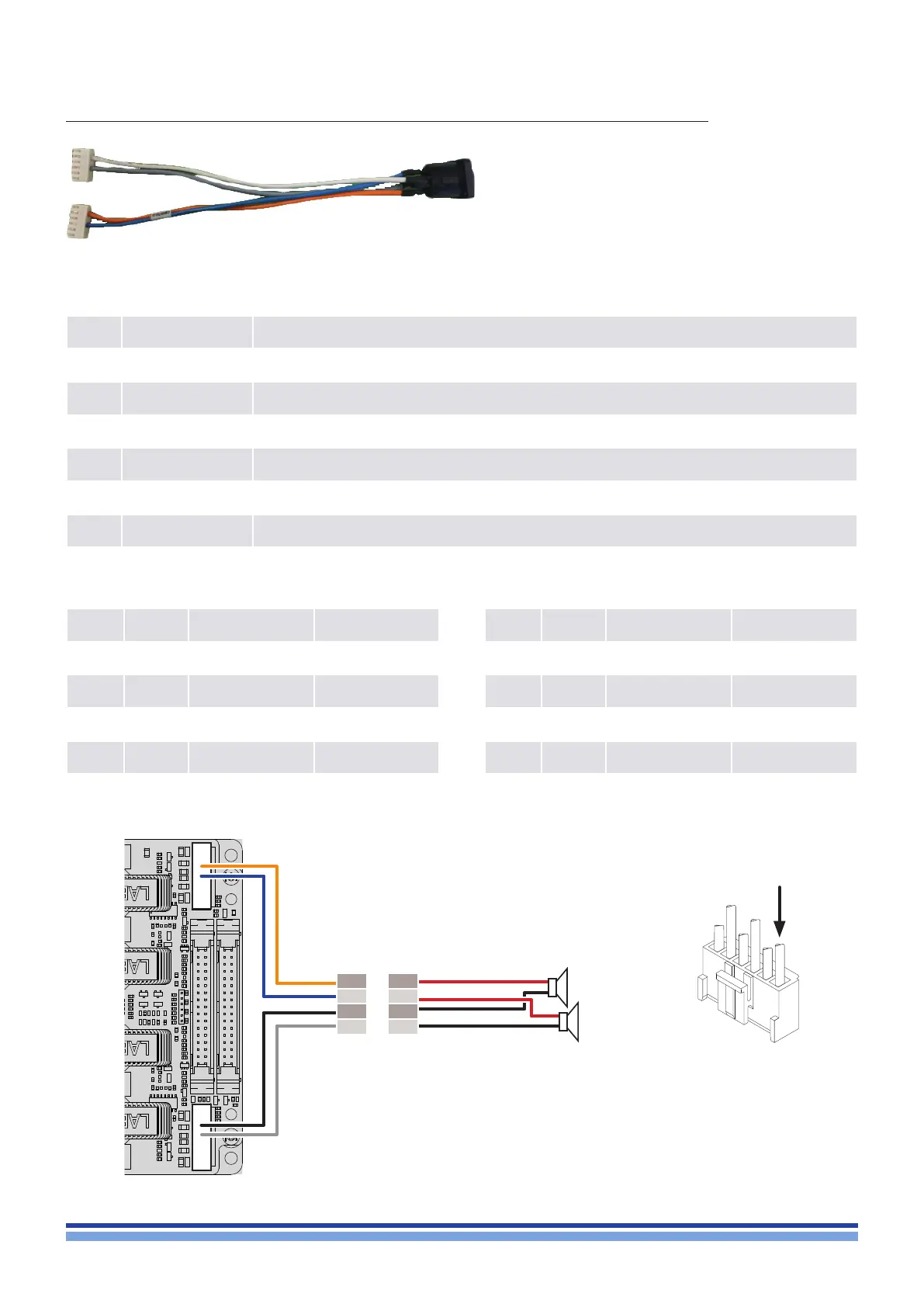

13 : 3.Output cable, 2 x BTL conguration – CB000730
CH 1 - 3
CH 2 - 4
PIN 1
OUT 1+2
OUT 3+4
