Bill of Materials
Q Part Description MPN / Specs
1 PowerCon NAC3MPA-1
1 JST connector VHR-3N
2 JST Contacts SVH-21T-P1.1 (22 ~ 18 AWG), SVH-41T-P1-1 (20 ~ 16 AWG)
1 Fuse Holder SCI R3-32B2
1 Fuse LITTLE FUSE 326 15AT
1 Red cable 14 AWG
1 Blu cable 14 AWG
1 Yellow/Green cable 14 AWG
JST Housing pin-out
PIN 1 AC Mains L (red wire)
PIN 2 Not connected
PIN 3
AC Mains N (blue
wire)
AMP
GND
Ground (yellow-
green wire)
Powercon pin-out
PIN L AC Mains L (red wire)
PIN N AC Mains N (blue wire)
PIN GND Ground

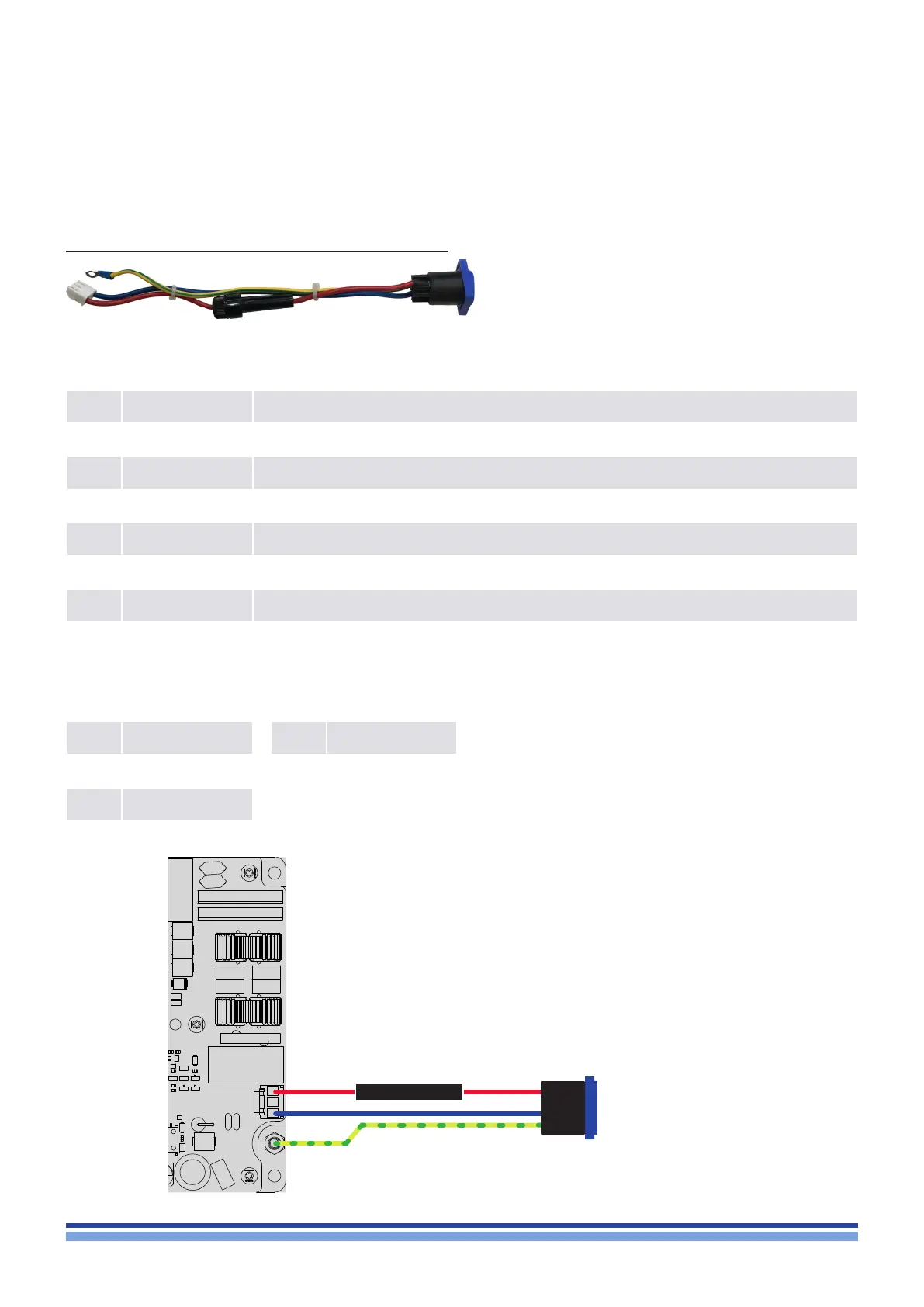

Cable Kit - KT000349
13 : 1.Mains Cable – CB000727
For module evaluation only.
