QUATTROCANALI | SERVICE MANUAL

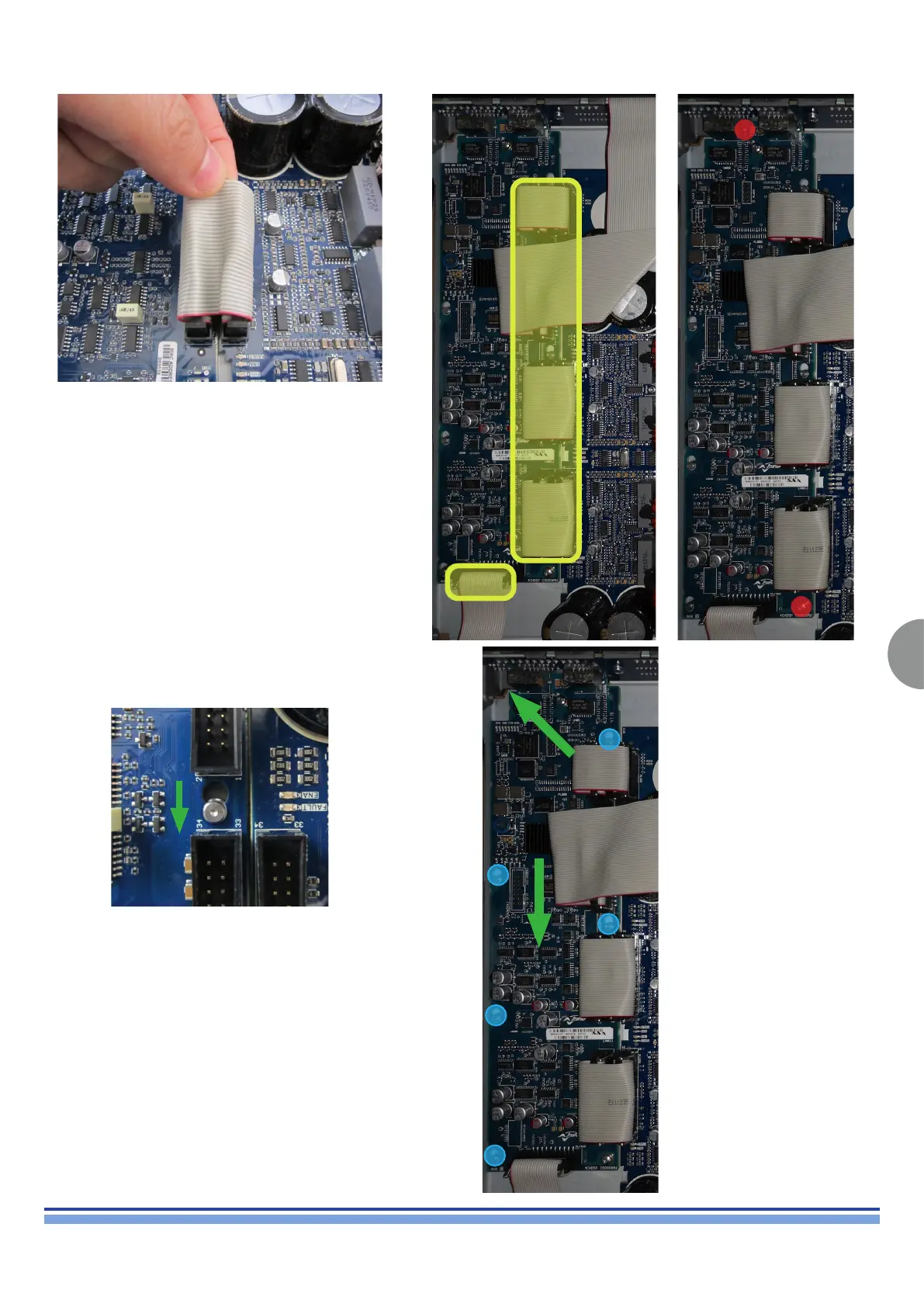

6.4 Disassembling the DSP+D/CONTROL Board
Gently remove all the at cables connectors highlighted
in yellow as indicated.
Unscrew the 2 screws marked in red.
5 retention pins are located on the points highlighted in
light blue.
Gently push the DSP+D Board towards the front of the
amplier, releasing it from all retention pins.
Gently pry the back panel slightly, so that it will become
possible to lift the DSP+D Board out of the chassis
without damaging it.
