6.5 Front Board Disassembling
6.6 Rear Board Disassembling

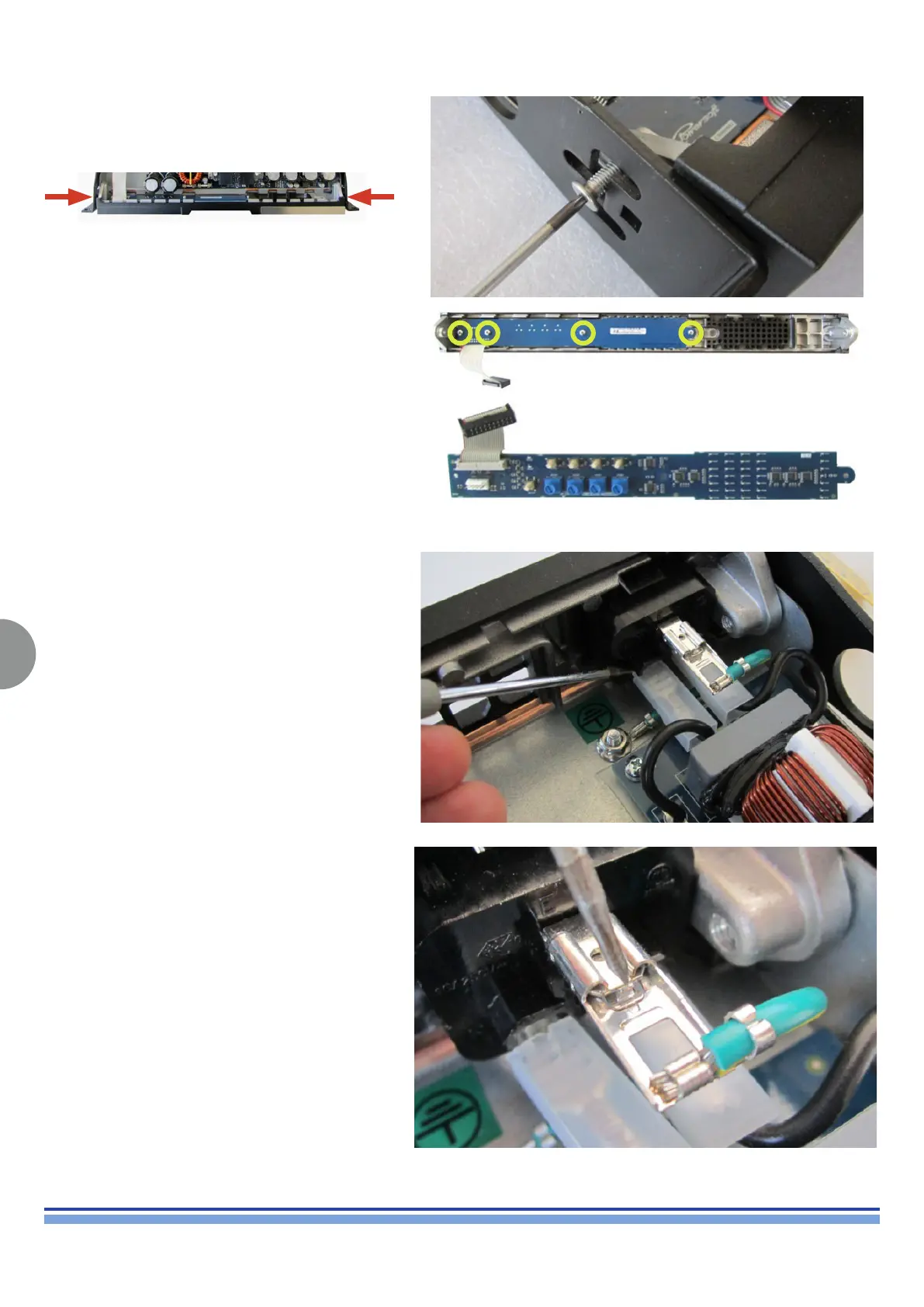

By means of a T10 Torx screwdriver, remove the 2 screws
holding the front panel assembly to the rack ears, one on
each side.
By means of a T10 Torx screwdriver, remove the 4 Torx
screws highlighted in the portrayed picture.
It is now possible to remove the front board from the front
panel.
Unplug the mains’ Faston connectors.
Unclip the safety retainer from the ground connector.
