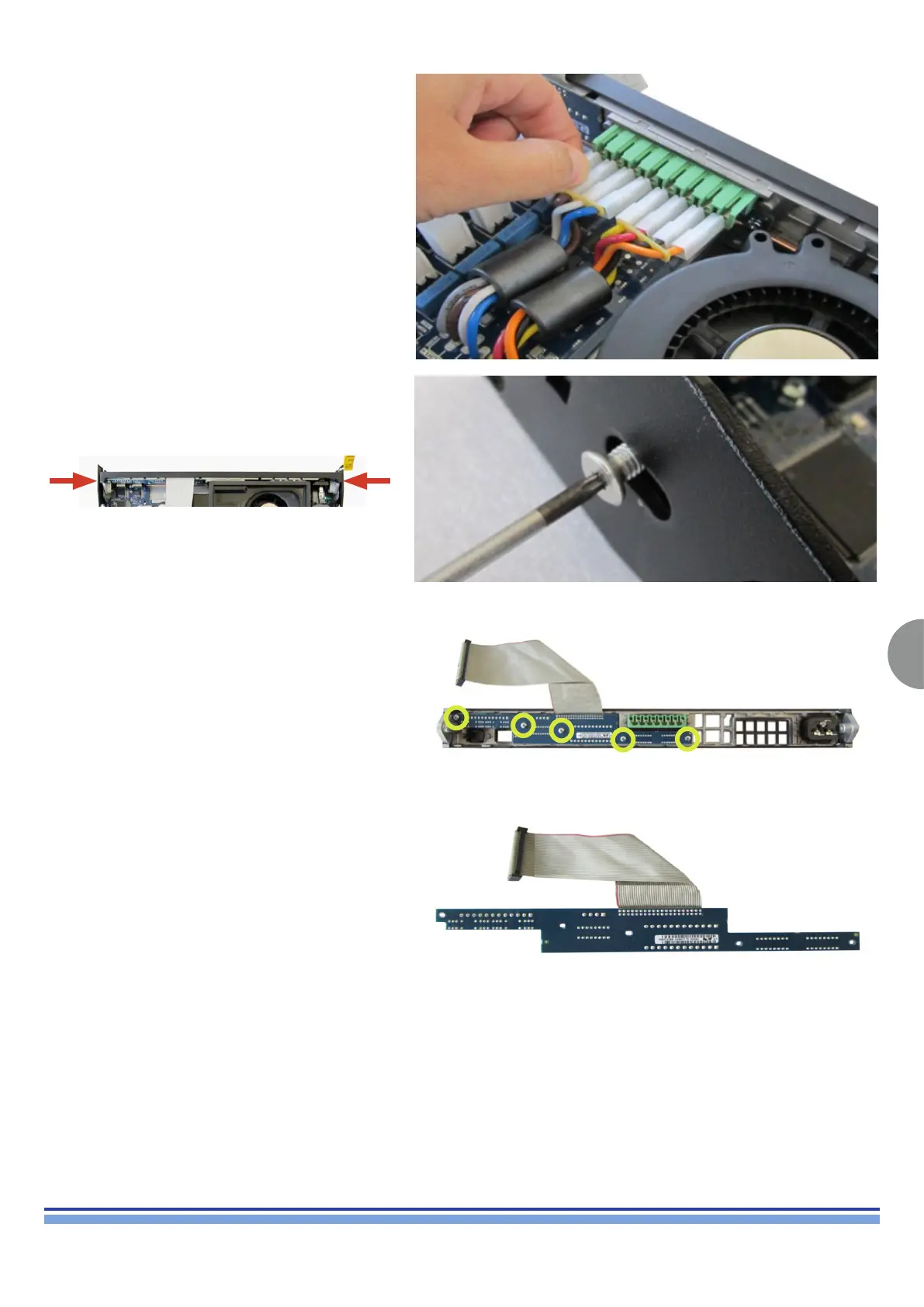

Unplug the Outputs’ connector Fastons.
By means of a T10 Torx screwdriver, remove the 2 screws
holding the rear panel assembly to the rack ears, one on
each side.
By means of a T10 Torx screwdriver, remove the 5 Torx
screws highlighted in the portrayed picture.
It is now possible to remove the rear board from the rear
panel.
