INDEX
47
QUATTROCANALI | SERVICE MANUAL

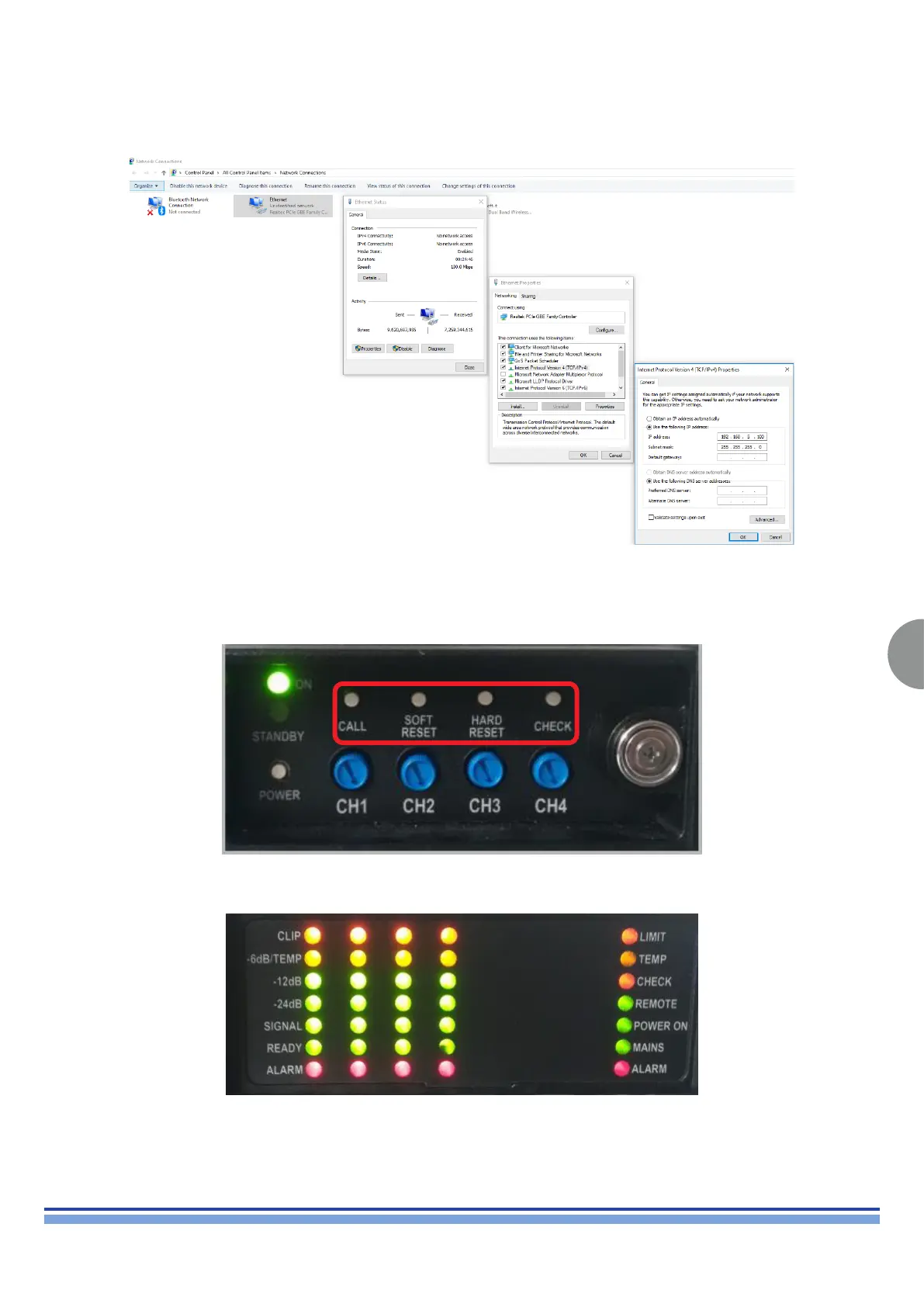

12. 4CH / 2CH Platform DSP Rescue Procedure
1. Connect the PC to the amplier via ETH port
2. Set the PC IP address as 192.168.5.100. The subnet mask will be automatically set.
3. Copy the le “upgrade4-v1.7.6.74.zip” in local PC
4. Rename the le “upgrade4.zip”
5. On the front panel of your amplier keep pressed four (4) push buttons all together:
CALL / SOFT RESET / HARD RESET / CHECK
6. Power up the amp with the 4 buttons still pressed
7. Verify that all front leds turn ON
Don’t worry if some leds are ON / OFF randomly for few seconds
