INSTRUCTIONS PW220/PW230 17
2. Electric Latch:
(If the gate is opened outward)
1) If the gate is opened outward, please change the spring
inside and screw it in the different place.
See Figure 2.3.7 (4), Figure 2.3.7 (5),
Figure 2.3.7 (6) & Figure 2.3.7 (7)

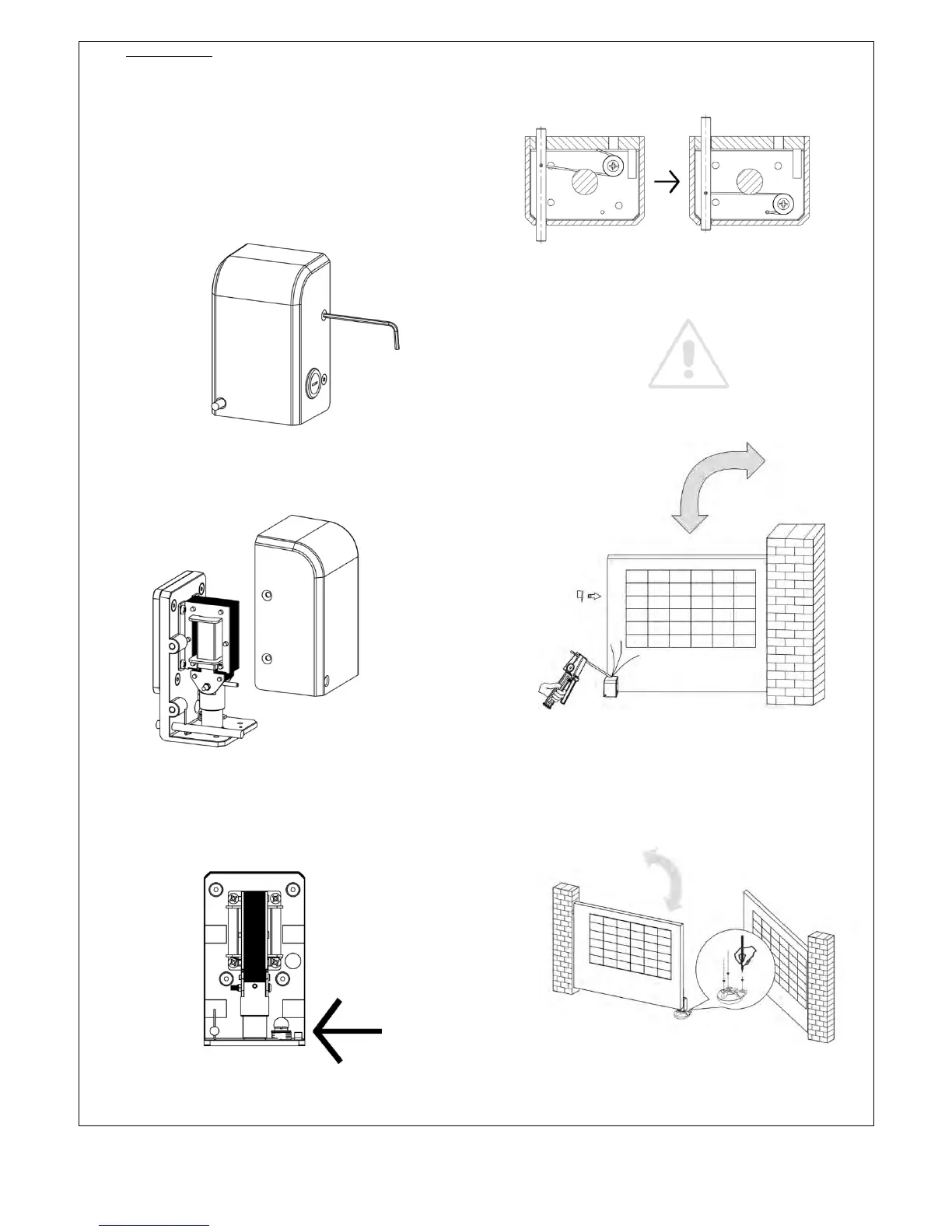

Figure 2.3.7(4) Unscrew the screws.
Figure 2.3.7(5) Take the casing off.
Figure 2.3.7(6) The location of the spring.
Figure 2.3.7(7)
Change the spring and screw it in the different place.
(Installation)
2) Weld the back plate of the electric latch to the surface on
the master gate. See Figure 2.3.7 (8).
Please avoid melting the wires by the heat of the fixed
plate.
Figure 2.3.7(8) For the gate opened inward.
Figure 2.3.7(9) For the gate opened Outward.
