INSTRUCTIONS PW220/PW230 7
2.1.2 Motors, Components and Its Installation in Illustration

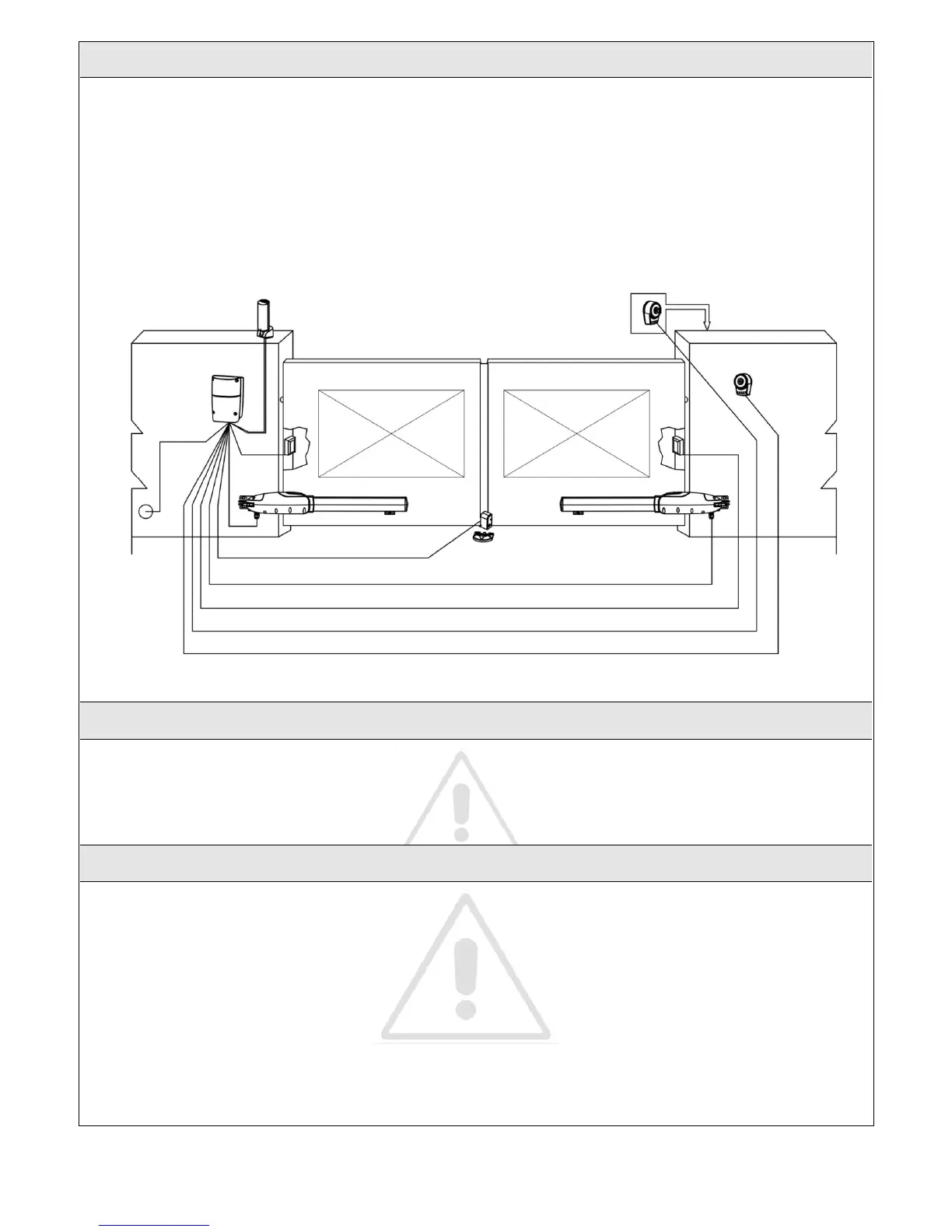

The installation procedure of PW220/PW230 may be changed due to various accessories and quantities installed. The basic wiring
diagram is shown in Figure 12.
No wiring cables for accessories are supplied with KIT PW220/PW230.
Figure 12
2.2 Power Connection
PW220/PW230 is required to connect two cores wires, which requires very low voltage that no professionally trained personnel is
required in installation; however, the users are advised to read the installation manual carefully before going for it. After getting to know
all accessories and their positions, suggest starting from cable conduit arrangement to prevent the cables from being broken or damaged.
2.2.1 Notes for Power Connection
1. The installation of power supply cable to the motor should be carried out by a qualified professional electrician.
2. The power supply cable of the motor should be equipped with short circuit protection and leakage protection. Please make
sure to shut off the power before going installation or maintenance.
