INSTRUCTIONS PW220/PW230 21

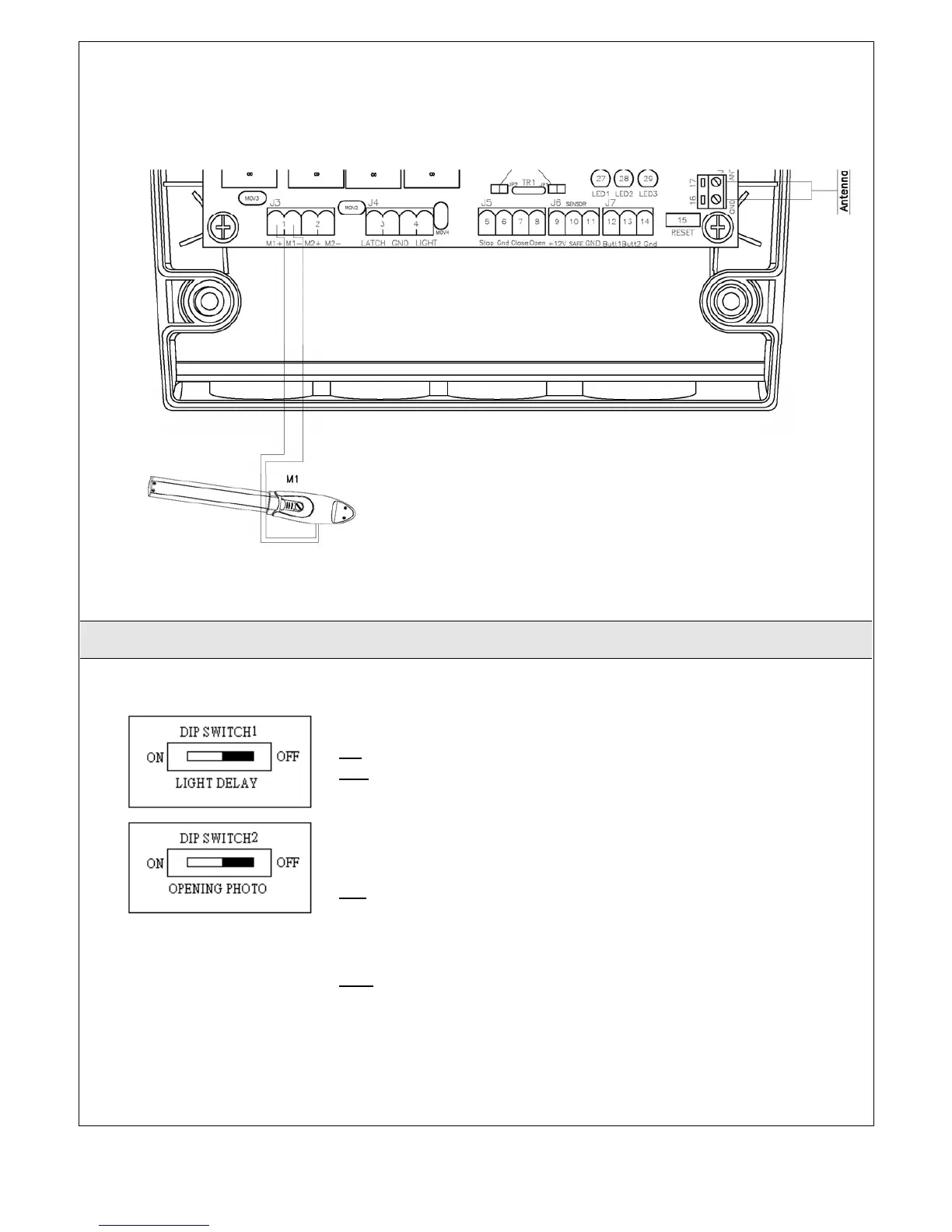

Figure 2.3.8 (5)
3. Dip Switch Setting
LIGHT DELAY:
ON: The flashing light blinks for 5 seconds before the gate moves.
OFF: The flashing light blinks and the gate moves simultaneously.
OPENING PHOTO:
When the gate moves in the opening phase, t
he photo sensor can be selected as
active or inactive.
ON:
In the opening phase, the gate will stop when the photo sensor is activated.
In the closing
phase, the gate will stop and open to the end when the photo
sensor is activated.
OFF:
In the opening phase, the gate will not stop when the photo sensor is
activated.
In the closing phase, the gate will stop and open to the end when the photo
sensor is activated.
