18 INSTRUCTIONS PW220/PW230

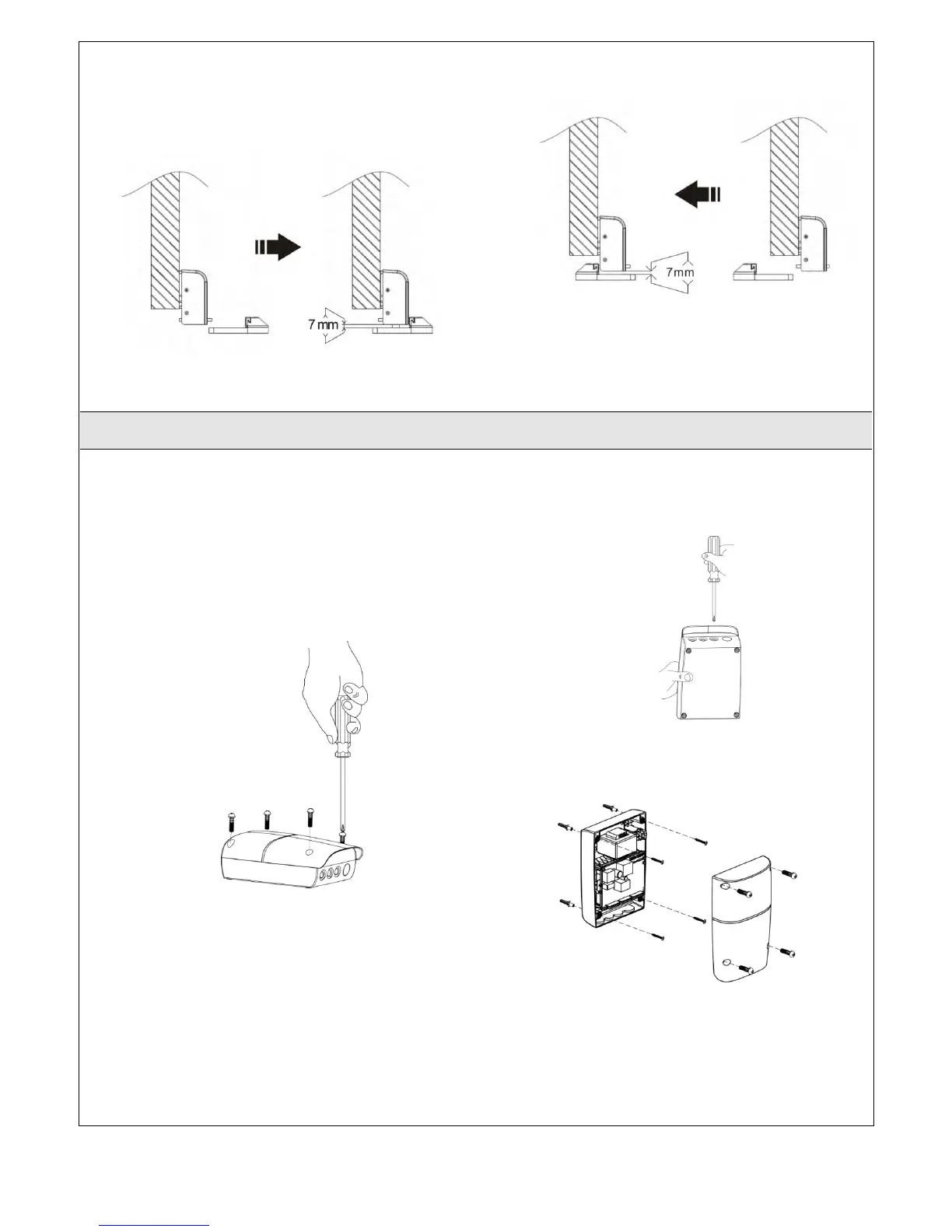

3) The gap between the bottom of electric latch and the
stopper should be less than 7mm. See Figure 2.3.7 (10)
Figure 2.3.7(10) For the gate opened inward.
Figure 2.3.7(11) for the gate opened Outward.
4) Connect the wires of the electric latch to the
terminal LATCH and GND on the PCB.
See Figure 2.3.8 (5)
2.3.8 PC160 Control Box
1. Decide the installation position of PC160 control box
first, it is suggested to be installed near the gate and
should be protected from possible damage. Be aware of
the motor cable length before deciding the installation
position.
2. Remove the cover by unscrewing the four screws on the
cover. See Figure 2.3.8 (1).
Figure 2.3.8 (1)
3. Use a screwdriver to puncture the holes beneath the
bottom of the control box. See Figure 2.3.8 (2).
Figure 2.3.8 (2)
4. Secure it on the wall. See Figure 2.3.8 (3).
Figure 2.3.8 (3)
To Next Page
