28

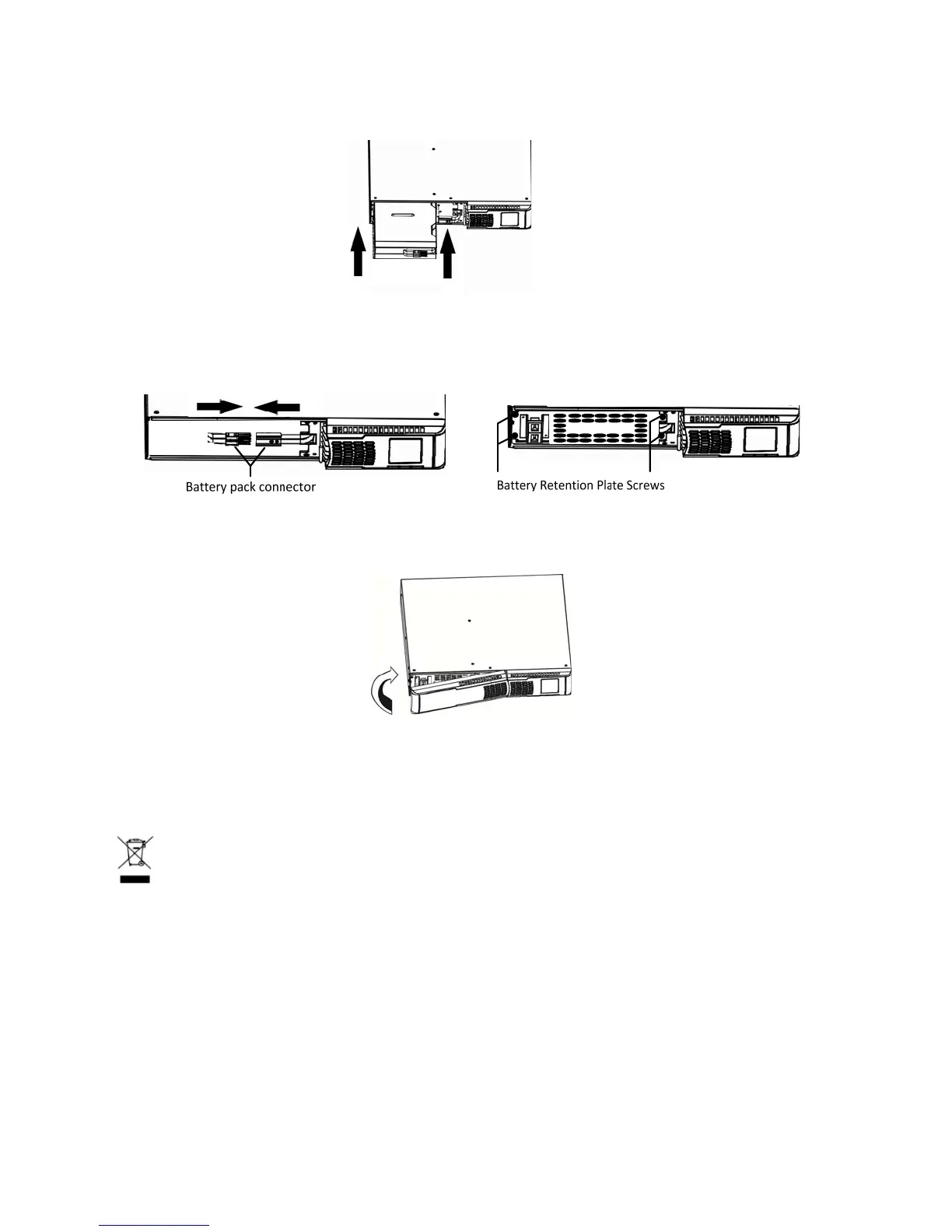

5. Slide in replacement battery pack. Refer to the figure directly below :
6. Reconnect the battery connectors. Use the tie wrap supplied with the replacement battery kit to secure the two
halves of the battery connector together. Re-install the battery retention plate using the screws removed in step 3.
Refer to the figures directly below :
7. Align left plastic front cover and snap into place. Refer to the figure directly below :
9. Carefully pack used battery pack and send to authorized recycle center.
Do not discard waste electrical or electronic equipment (WEEE) in the trash. For proper disposal,
contact your local recycling/reuse or hazardous waste center.
