Powervar E240-22-A - Isolated Relay Contact Card Functional Diagrams

52
11.3 Isolated Relay Contact Card Functional Diagrams

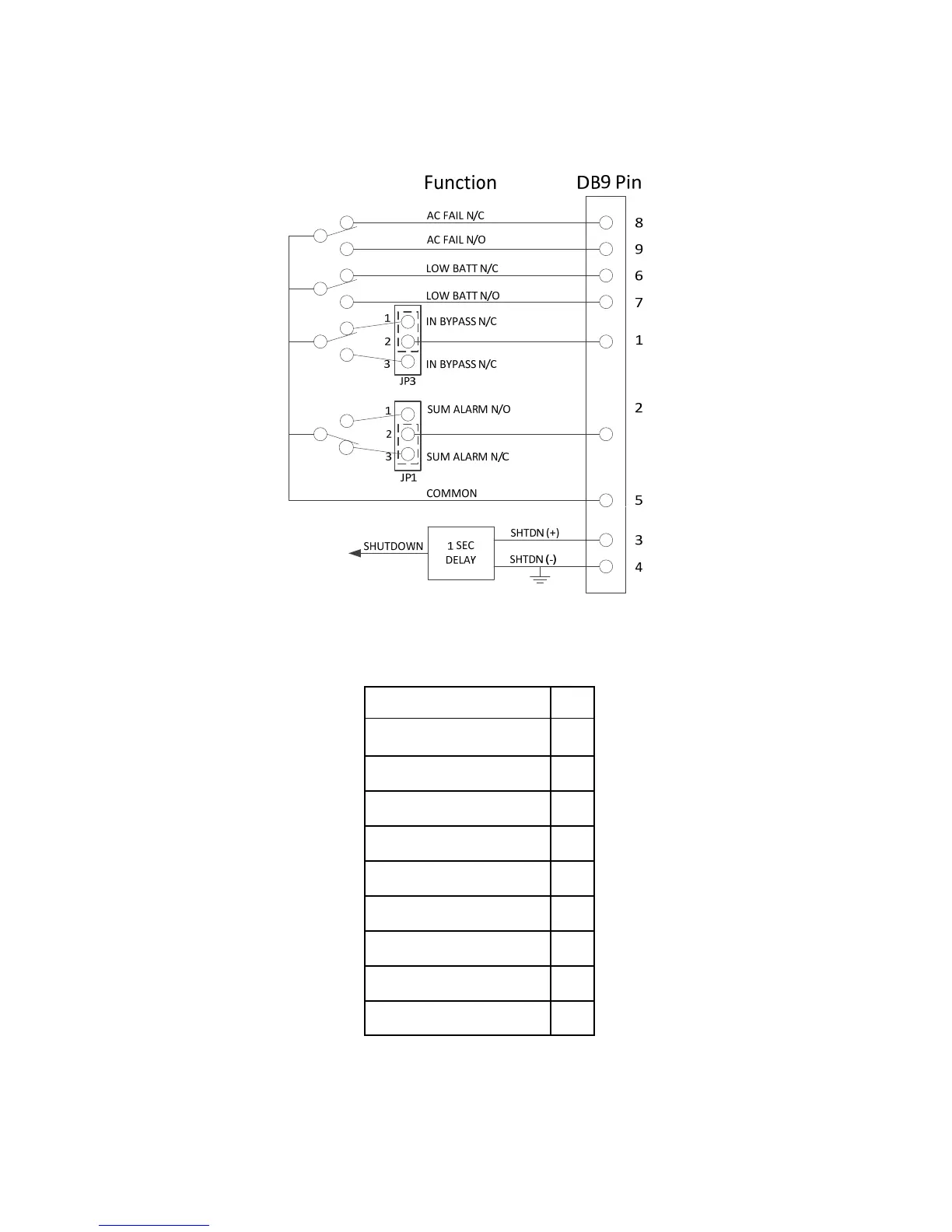

Figure D8 : Simplified Schematic of Interface Connections
Function Pin
AC FAIL NC 8
AC FAIL NO 9
LOW BATTERY NC 6
LOW BATTERY NO 7
BYPASS 1
ALARM 2
COMMON 5
SHUTDOWN (+) 3
SHUTDOWN (-) 4
