6.3 Remote Monitor Panel
As an option, you can install RMPs to monitor the operation of the UPS system from
virtually any location within your facility, up to 500 ft from the UPS. Each RMP contains
backlit status indicators and a local horn. You can flush-mount or surface-mount an RMP
on a desktop, wall, or wherever you have a serial interface line. A maximum of two
monitoring accessories (RMPs, Relay Interface Modules, or Supervisory Contact Modules)
can be installed. See Table 6-1 for the number of accessories permitted. Figure 6-3 shows
an RMP.

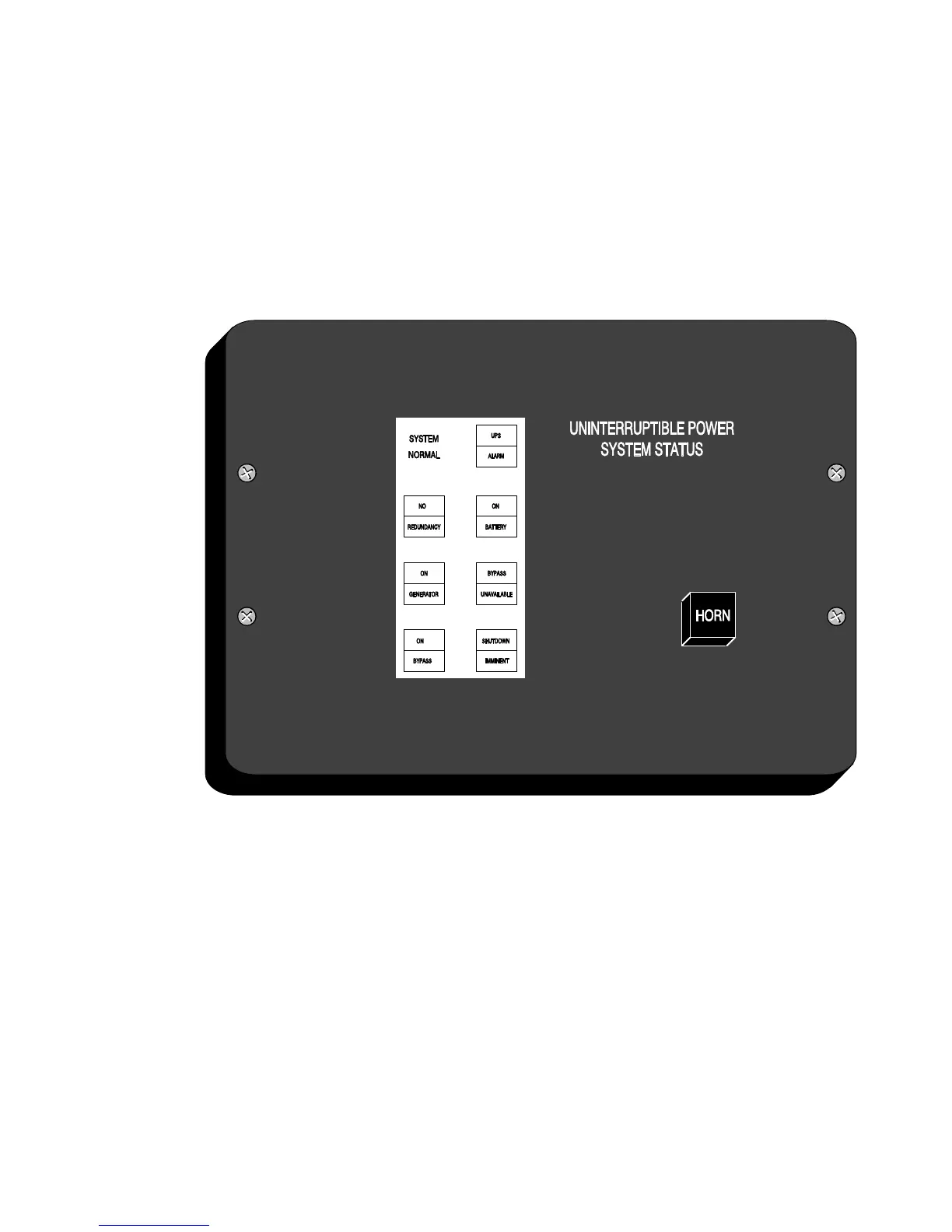

Figure 6-3. Remote Monitor Panel
