Powtran PI7500 Series User Manual

Section III. Operating keyboard
17
once
press PRG key
press
PRG key
once
press
▲ key
twice
press SET key
to affirm
glitter
glitter
glitter
glitter
once
up LED
down LED
press
▲ key
press
PRG key

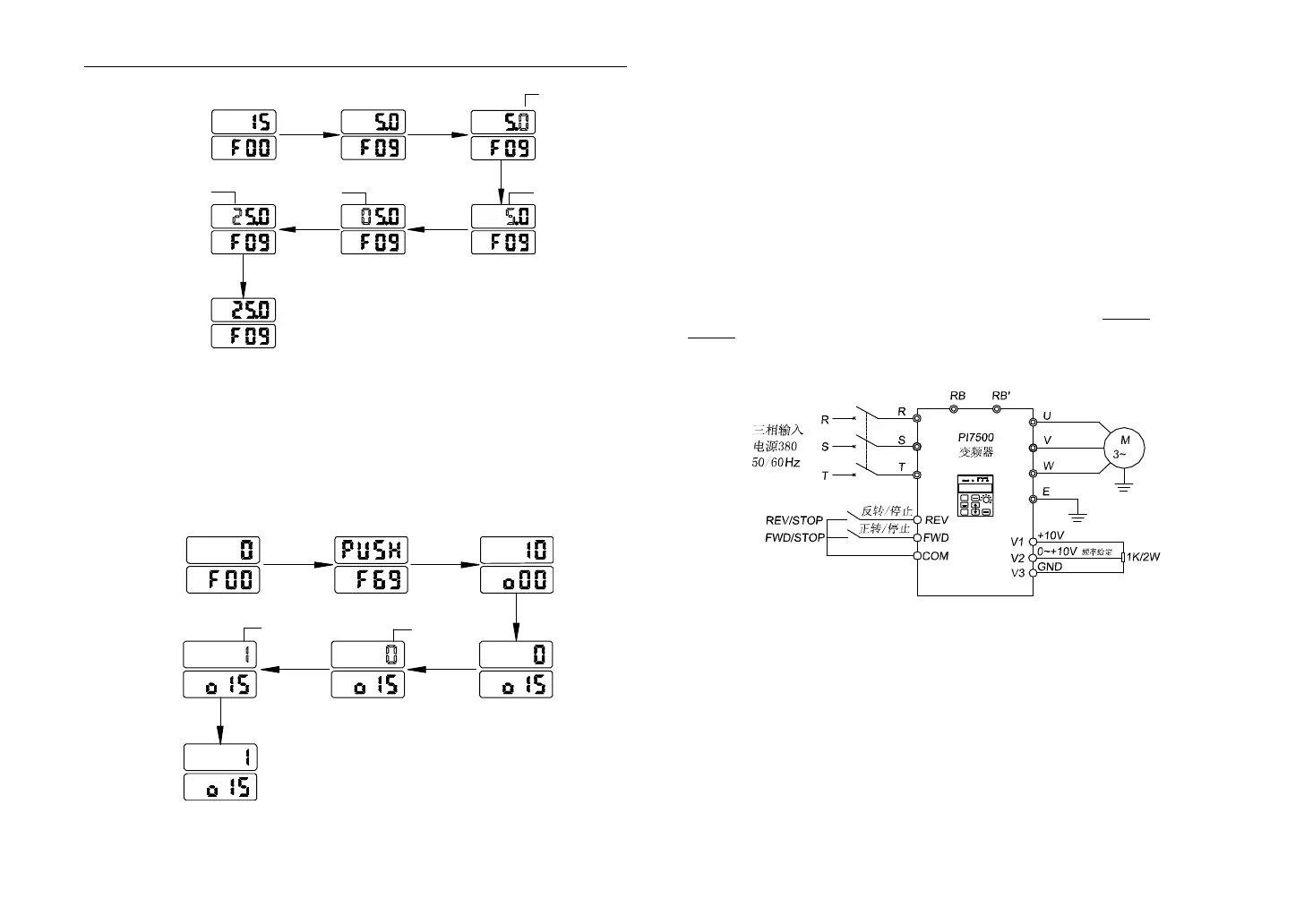

e.g. 2 Modify o15=0 to o15=1
1. With F00, press ▼ selecting F69.
2. Press PRG entering I/O group parameters menu.
3. Press ▼ selecting o15.
4. Press PRG once modifying o15.
5. Press ▲ once, upper LED flashes “1”.
6. Press SET confirming value modification.
up LED
down LED
glitter
press SET key
to affirm
glitter
press
▲ key
press
▼ key
press
PRG key
once
press ▼ key
press
PRG key
once
once
18
Section IV. Test running
● Before connecting the power supply with the frequency converter,
confirm that the input voltage of AC power is within the rated input
voltage of the frequency converter.
● Connect the power supply with the R, S and T terminals of frequency
converter (connect with R and S terminals for single-phase input).
● Select the proper operation control method.
e.g.: analog voltage input + keyboard /terminal operating (Pr.F04=1,
Pr.F05=1).
The frequency command is controlled by terminal V2, and the operation is
controlled by the keyboard and terminal FWD、REV.
ALARMFWD VAHZ
% S
℃
REV
DIGITAL OPERATOR
JP-10
RUN
STOP
RESET
PRG
SET
ESC
DISPL
e.g.: keyboard adjust speed + keyboard operating (Pr.F04=0, Pr.F05=0)
The frequency command is controlled by the key , and operation is
controlled by the key FWD、REV controlling the forward and reverse.
