10 4116V105-UK
PR 45xx display / programming front
Functionality
The simple and easily understandable menu structure and the explanatory help texts guide you
effortlessly and automatically through the configuration steps, thus making the product very easy to
use. Functions and configuration options are described in the section ”Configuration / operating the
function keys”.
Application
• Communications interface for modification of operational parameters in 4116.
• Can be moved from one 4116 device to another and download the configuration of the first unit to
subsequent units.
• Fixed display for readout of process data and status.
Technical characteristics
• LCD display with 4 lines:
Line 1 (H=5.57 mm) shows the input signal.
Line 2 (H=3.33 mm) shows the selected engineering unit.
Line 3 (H=3.33 mm) shows analog output or TAG no.
Line 4 shows status for communication and relays.
• Programming access can be blocked by assigning a password. The password is saved in the device
in order to ensure a high degree of protection against unauthorized modifications to the
configuration.

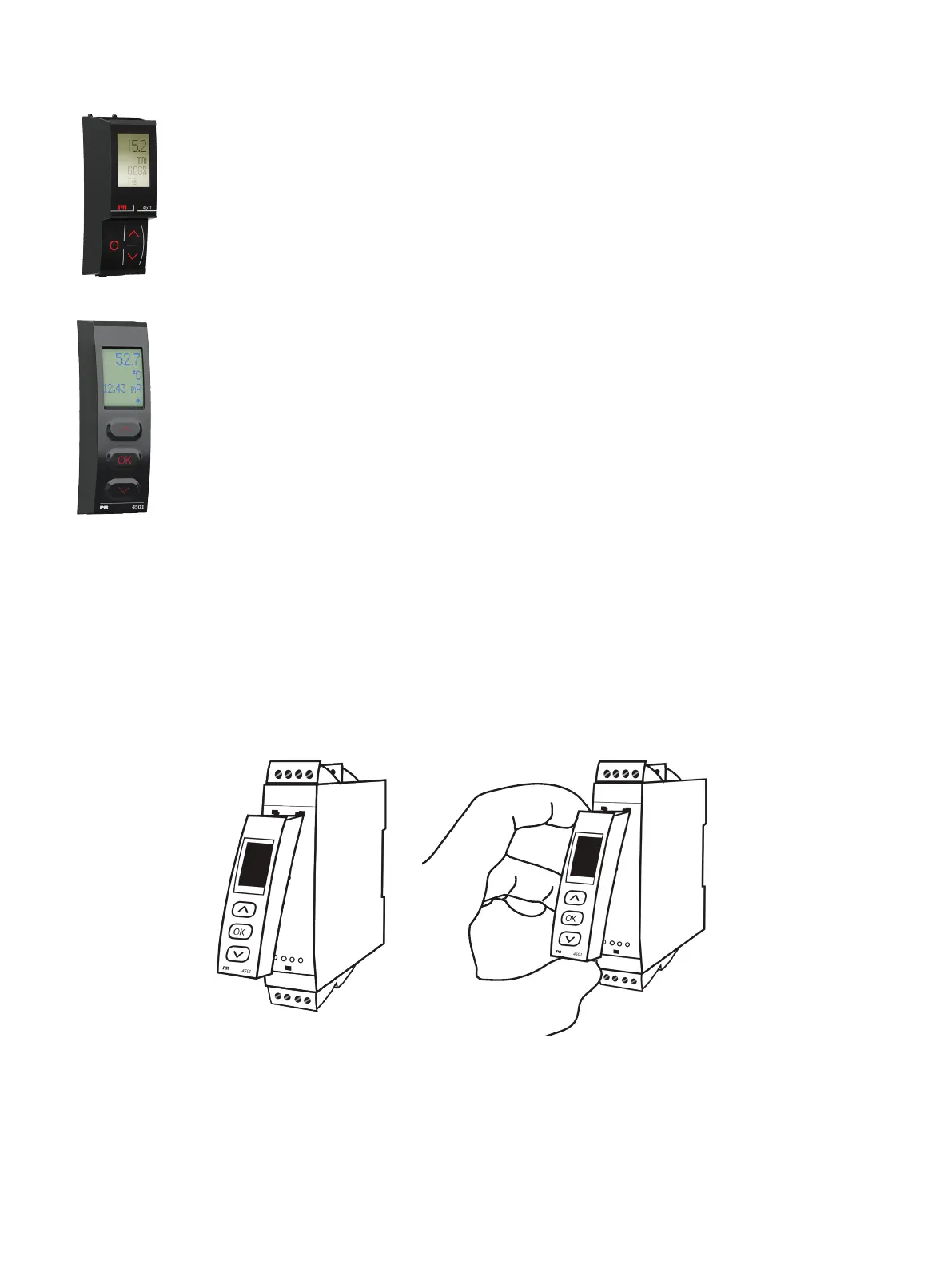

Mounting / demounting the PR 45xx
1: Insert the tabs of the PR 45xx into the holes at the top of the device.
2: Hinge the PR 45xx down until it snaps into place.
Demounting of the PR 45xx
3: Push the release button on the bottom of the PR 45xx and hinge the the PR 45xx out and up.
4: With the PR 45xx hinged up, remove from holes at the top of the device.
