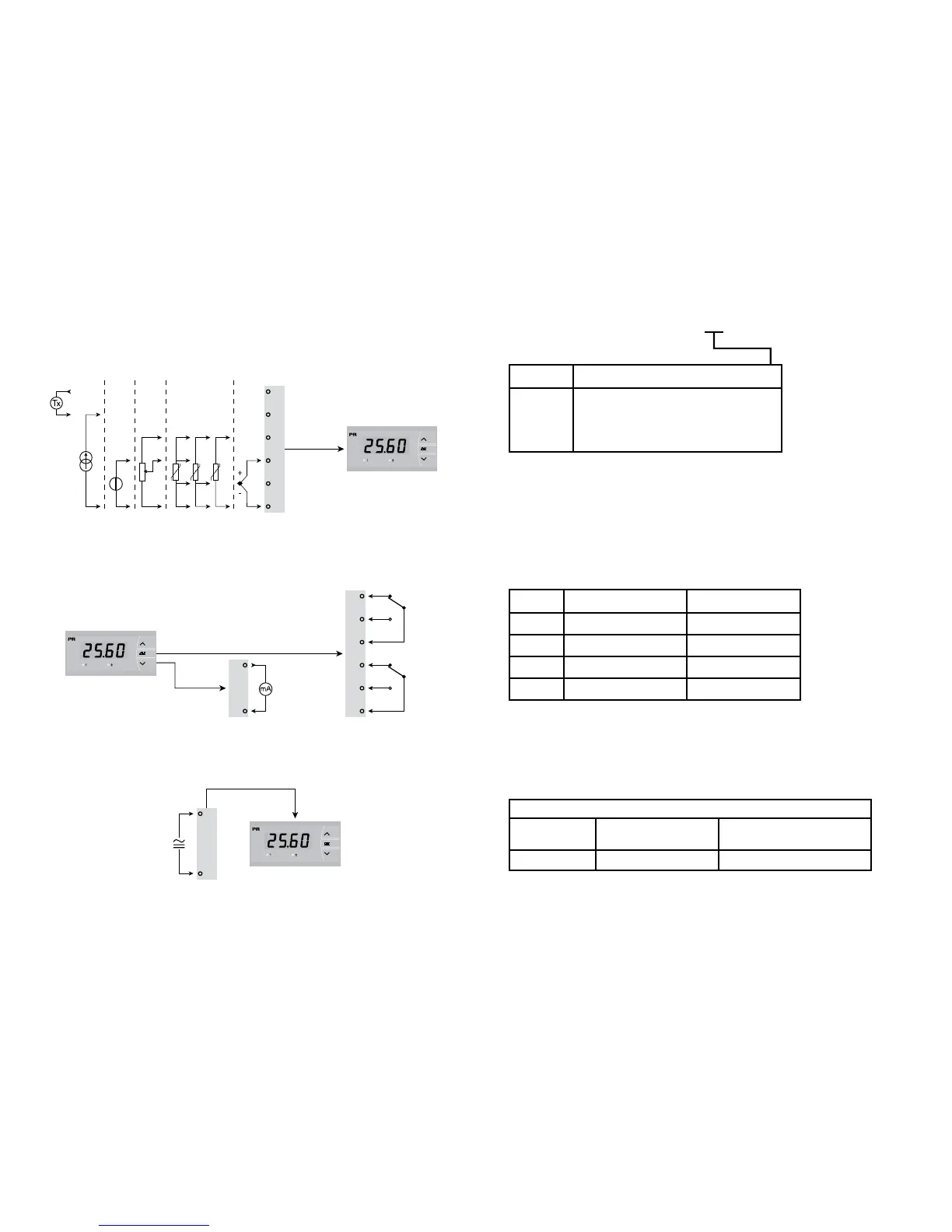

PR electronics 5714 User Manual

+
-
12
11
26
25
24
23
22
21
32
31
1 2
1 2
+
-
+
-
46
45
44
43
42
41
4 3 2
TC
1 2
+
-
30
31
Applications
Input signals:
Current
Potentio-
meter
Output signals:
2 changeover relays
Analogue, 0/4...20 mA
Supply:
21.6...253 VAC
or
19.2...300 VDC
Voltage
RTD -
Connection,wires
2-wiretransmitter
NB! Please order the splash-proof cover seperately. Order No. 8335.
Electrical specifications:
Specifications range:
-20°C to +60°C
Common specifications:
Supply voltage, universal ............................ 21.6...253 VAC, 50...60 Hz or
19.2...300 VDC
Consumption
Isolation voltage, test / operation .............. 2.3 kVAC / 250 VAC
Signal- / noise ratio .................................... Min. 60 dB (0...100 kHz)
Response time (0...90 %, 100...10 %), programmable:
Temperature input ................................. 1...60 s
Current / voltage input.......................... 0.4...60 s
Calibration temperature.............................. 20...28°C
Accuracy, the greater of general and basic values:
General values
Input type
Absolute
accuracy
Temperature
coefficient
All ≤ ±0.1% of reading ≤ ±0.01% of reading / °C
Type Internal consumption Max. consumption
5714A 2.2 W 2.5 W
5714B 2.7 W 3.0 W
5714C 2.7 W 3.0 W
5714D 3.2 W 3.5W
Type Version
5714
Standard. . . . . . . . . . . . . . . . . . .: A
2 relays . . . . . . . . . . . . . . . . . . . .: B
Analogue output. . . . . . . . . . . . .: C
Analogue output and 2 relys . . .: D
Order: 5714

PR electronics 5714 Specifications

General

Brand	PR electronics
Model	5714
Category	Measuring Instruments
Language	English
