CSA Intrinsic Safety Installation Drawing.
5331D, 5333D and 5335D transmitters are approved as intrinsically safe in Zone 0 Group
IIC or Class I,Division1,Group A,B,C,D when installed according to Installation Drawing.

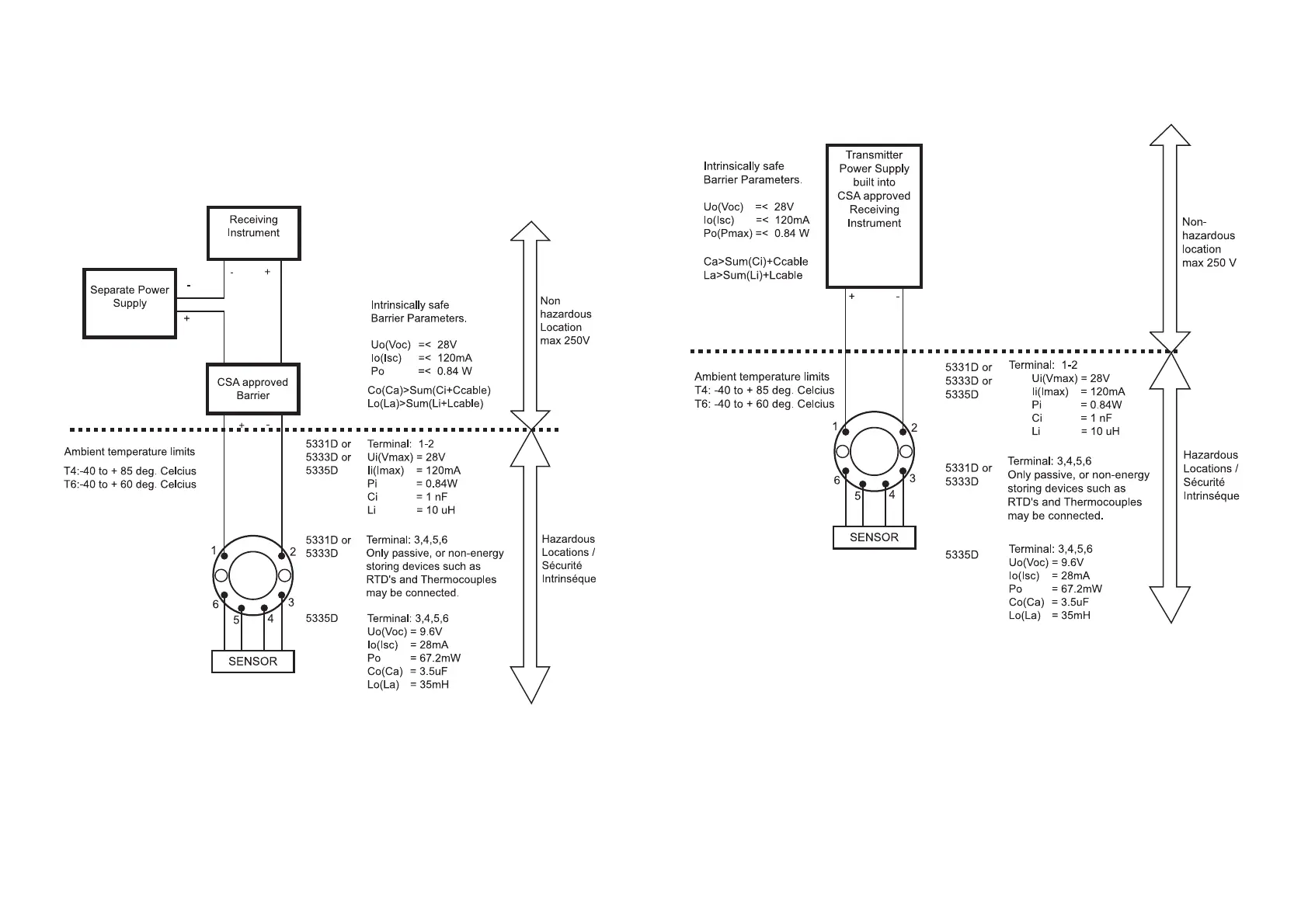

1. Connections with separate power supply and receiver.
Output: Standard 4 - 20mA loop
Warning:
Substitution of components may impair intrinsic safety.
The transmitters must be installed in a suitable enclosure to meet installation codes stipu-
lated in the Canadian Electrical Code (CEC).
2001-08-30 533XQC03 1/2
2. Connection with power supply and barrier built into receiver
Output: Standard 4 - 20mA loop
Warning:
Substitution of components may impair intrinsic safety.
The transmitters must be installed in a suitable enclosure to meet installation codes stipu-
lated in the Canadian Electrical Code (CEC).
2001-08-30 533XQC03 2/2
