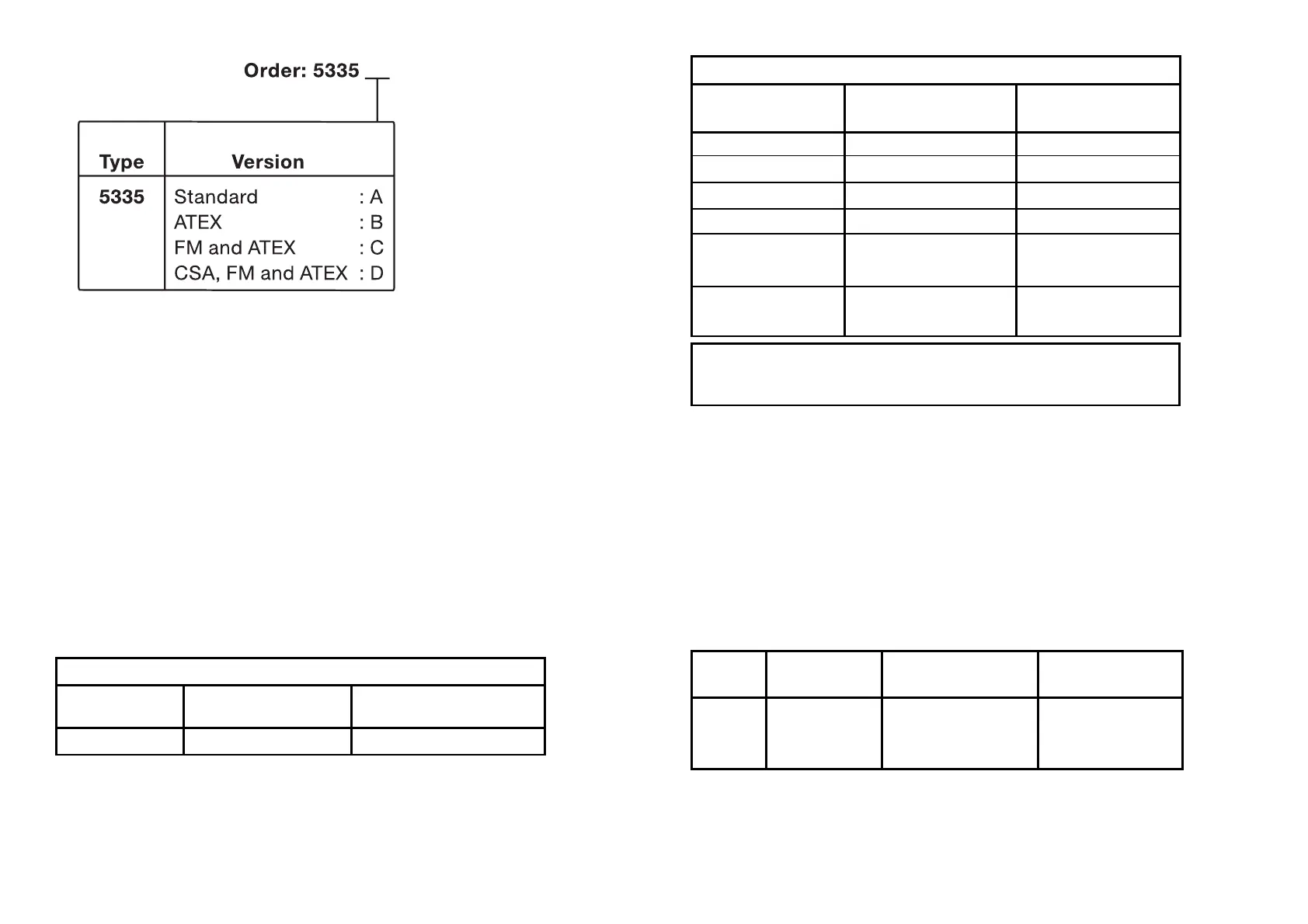

Effect of supply voltage variation................ < 0.005% of span / VDC
Vibration...................................................... IEC 68-2-6 Test FC
Lloyd’s specification no. 1 .......................... 4 g / 2...100 Hz
Max. wire size.............................................. 1 x 1.5 mm
2
Relative humidity......................................... < 95% RH (non-cond.)
Dimensions.................................................. Ø 44 x 20.2 mm
Tightness (enclosure / terminals)................ IP68 / IP00
Weight ......................................................... 50 g
Electrical specifications, input:
Max. offset .................................................. 50% of selec. numerical max. value
RTD and linear resistance input:
21
Electrical specifications:
Specifications range:
(@: -40°C to +85°C)
Common specifications:
Supply voltage, DC
Standard .............................................. 8.0...35 V
ATEX, FM and CSA, 5335B, C and D.. 8.0...28 V
Isolation voltage, test / operation ............... 1.5 kVAC / 50 VAC
Warm-up time.............................................. 30 s
Communications interface.......................... HART
®
and Loop Link 5905A
Signal / noise ratio ...................................... Min. 60 dB
Response time (programmable).................. 1...60 s
EEprom error check .................................... < 10 s
Signal dynamics, input................................ 22 bit
Signal dynamics, output ............................. 16 bit
Calibration temperature .............................. 20...28°C
Accuracy, the greater of general and basic values:
20
RTD Min. Max. Min.
type value value span
Pt100 -200°C +850°C 10°C
Ni100 -60°C +250°C 10°C
Lin. R 0 Ω 7000 Ω 25 Ω
Basic values
Temperature
coefficient
Basic
accuracyInput type
Pt100 and Pt1000
Ni100
Lin. R
Volt
TC type:
E, J, K, L, N, T, U
TC type:
B, R, S, W3, W5
≤ ±0.1°C
≤ ±0.2°C
≤ ±0.1 Ω
≤ ±10 µV
≤ ±0.5°C
≤ ±1°C
≤ ±0.005°C/°C
≤ ±0.005°C/°C
≤ ±5 mΩ/°C
≤ ±0.5 µV/°C
≤ ±0.025°C/°C
≤ ±0.1°C/°C
EMC immunity influence..................................... < ±0.1% of span
Extended EMC immunity:
NAMUR NE 21, A criterion, burst ....................... < ±1% of span
General values
Temperature
coefficient
Absolute
accuracyInput type
All
≤ ±0.05% of span ≤ ±0.005% of span / °C
