5/16
POWER SUPPLY CONNECTIONS
Connect the power cord as follows:
L (live) =brown
E (earth) =yellow/green
N (neutral) =blue
Please be advised to notice power supply’s voltage and frequency meet what are described on the nameplate of the
product. It is recommended that each unit be power connected separately so that they may be individually switched on
and off.
IMPORTANT
It is essential that each unit(yellow/green twin wire) is correctly earthed and the electrical installation conforms
to all relevant standards.

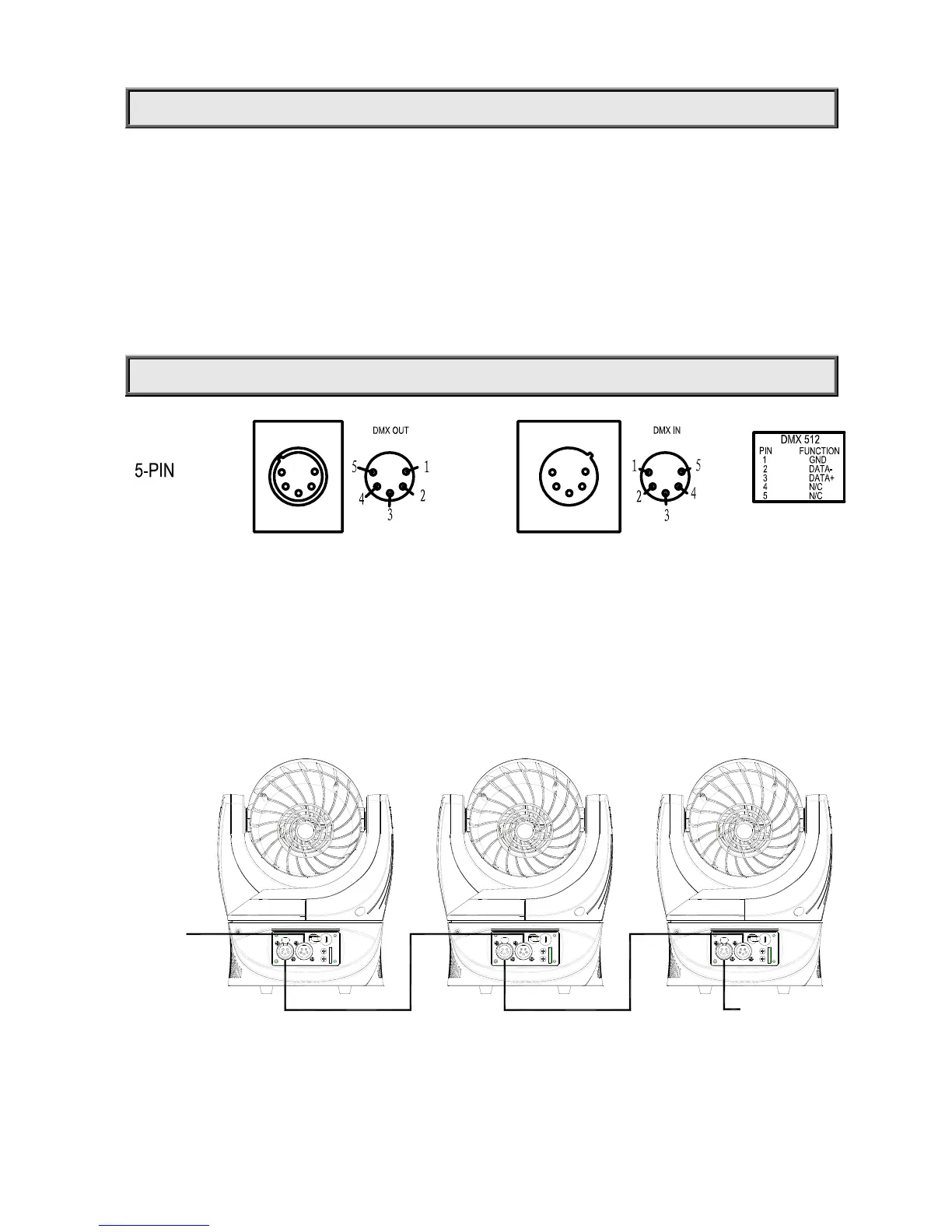

DMX CONTROL CONNECTION
Connection between controller and unit and between one unit and another must be made with a 2 core-screened cable,
with each core having at least a 0.5mm diameter. Connection to the DMX512 input and output ports of the unit is via 5
pin XLR plugs and sockets(which are included with the unit). The XLR's plugs and sockets are connected with wires as
shown in the figure above. Note: care should be taken to ensure that none of the pins touch the metallic body of the plug
or each other. XLR’s plug and socket must not be connected with XLR control wire in any way other than shown as
above. The fixture accepts digital control signals in protocol DMX512 (1990).
Connect the controller’s output to the first fixture’s input, and connect the first fixture’s output to the second fixture’s input
and connect the rest fixtures in the same way. Eventually connect the last fixture’s output to a DMX terminator as shown
in the figure below.
MASTER
DMX IN FROM
CONTROLLER
DMX OUT
DMX IN
TERMINATOR
SLAVE SLAVE
DMX OUT
DMX IN
