6/16

DMX TERMINATOR

In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This

prevents electrical noise from disturbing and corrupting the DMX512 control signals.

The DMX terminator is simply a Canon connector with a 120Ω (ohm) resistor connected across pins 2 and 3, which is

then plugged into the output socket on the last fixture in the chain. The connections are illustrated below.

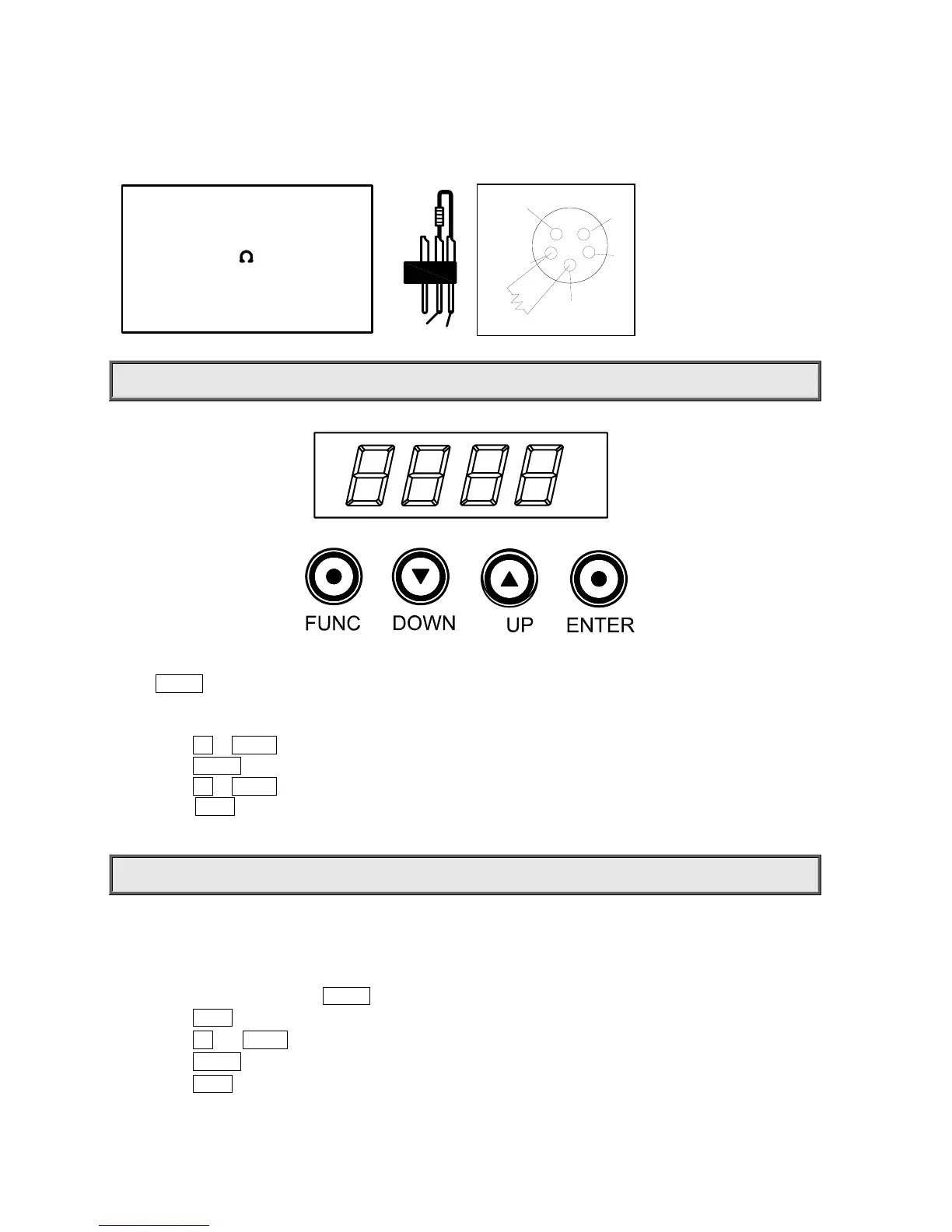

DMX TERMINATOR

CONNECTION

Connect a 120 (OHM) resistor

across pins 2 and 3 in an XLR plug

and insert into the DMX out socket

on the last unit in the chain.

PIN 3

PIN 2

PRODUCT FUNCTION SETUP

Fixture’s address and function code configuration can be set conveniently via button switch and LCD display. Press

button ENTER more than 5 seconds to unlock panel. LED display shows the fixture’s function menu. Each Option of the

main menu has its own sub-menu. Each menu stands for specified function of the fixture, please see the details in the

following:

Press button UP or DOWN if you want to set or browse through the various Setup Options.

Press button ENTER to save your settings or enter the sub-menus.

Press button UP or DOWN to change the parameters(increase or decrease the numbers)

Press button FUNC, it will return to the upper menu one by one. If the button not pressed, the system will go back to

display status automatically.

TO SET THE DMX START ADDRESS

If many fixtures are controlled by the controller, each fixture should be set with a start address to receive signals sent by

the controller and respond to it. The fixture have 2 DMX modes. There are standard mode and extended mode For

example standard mode has 12 channels, so set the No. 1 Fixture’s address 001, No. 2 Fixture’s address 013, No. 3

Fixture’s address 025 and so on.

Switch on the Fixture. Press button ENTER more than 5 seconds to unlock panel.

Press button FUNC to display DMX address;

Press button UP and DOWN, you can set the address;

Press button ENTER to confirm; when powered on next time, it will show the latest number you saved.

Press button FUNC, it will return to the upper menu one by one.

120

PR Lighting PR-8110 User Manual
