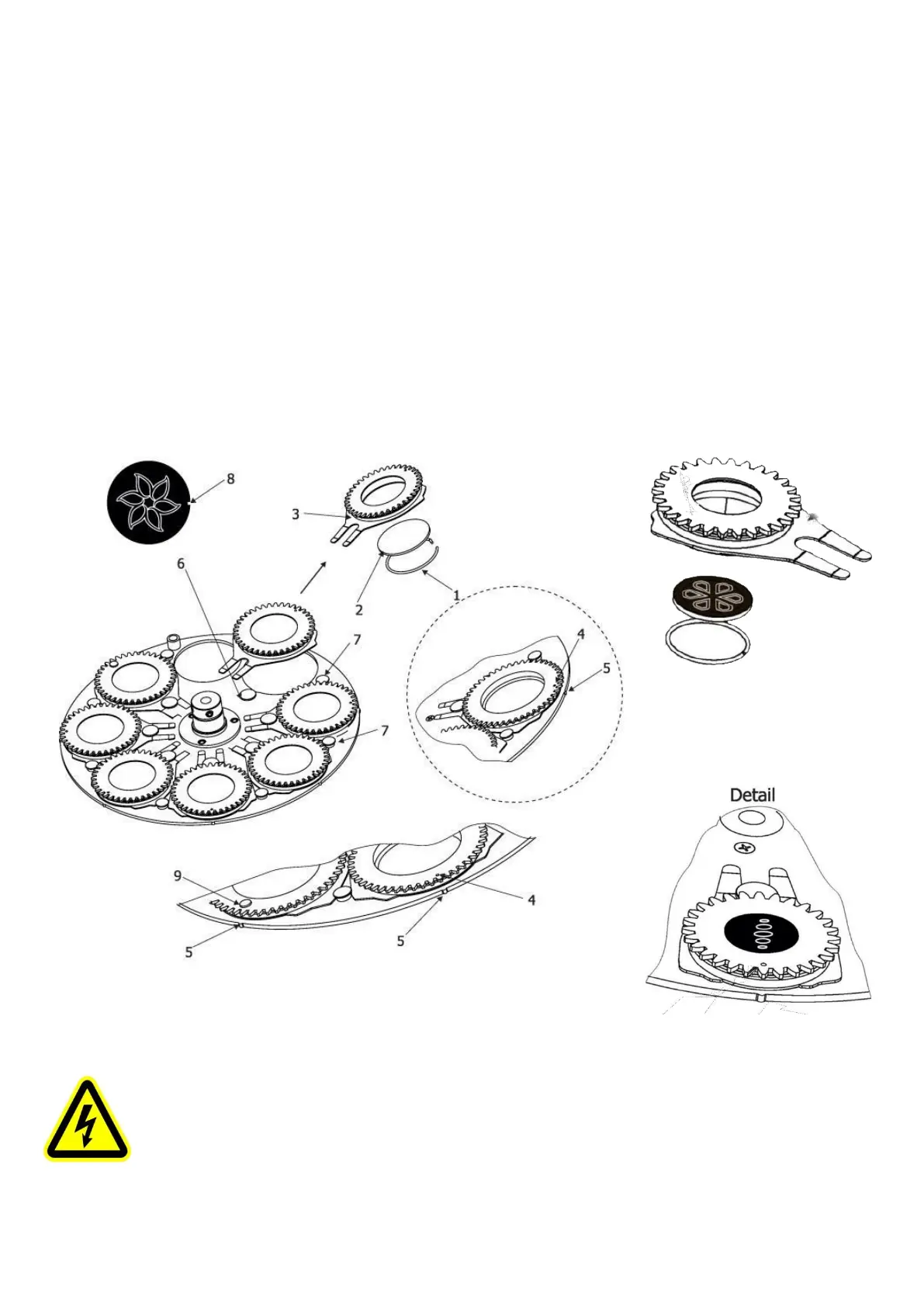

● GOBO REPLACEMENT
1. Disconnect the projector with mains power and let it cool
2. After loosening 4 1/4 fasteners of the head cover, remove it
3. Gently pull the gobo holder(3) from rotating gobo wheel upward.
4. Use appropriate tool like flat screwdriver of small size to remove spring lock(1). Do not use bare hand to touch pattern side of the
gobo.
5. Remove the old gobo(2) and insert new one with the smooth side facing light source. At the edge of the Gleelite gobo, there is
small positioning point(8), which must overlap with gobo holder’s positioning point(4). Insert spring lock and fix the gobo inside
the gobo holder.
6. Insert the gobo holder into the rotating gobo wheel via locking pins (6 and 7) and ensure positioning point (4) overlaps extruding
point in the shape of tooth at the edge of the rotating wheel(5). Important! After inserting rotators into the wheel, the neighboring
rotators must be positioned based on same rules, which means positioning point(4) must overlap extruding point(5) at the edge of
the wheel. With 2 markings (4) and (5), when the wheel is at proper position where the rotators can be inserted, the rotators can be
placed one by one.
7. Before power on, please install the head cover.
8. Use menu to fine tune replaced gobos( Service->Calibration->Standard effect->R. Gobo Indexing 1…R Gobo Indexing(6)
Note: The magnet(9) in the gobo holder is of the same function as the positioning point(4).
DANGER！
BEOFORE GOBO REPLACEMENT, IT MUST BE OFF POWER！
