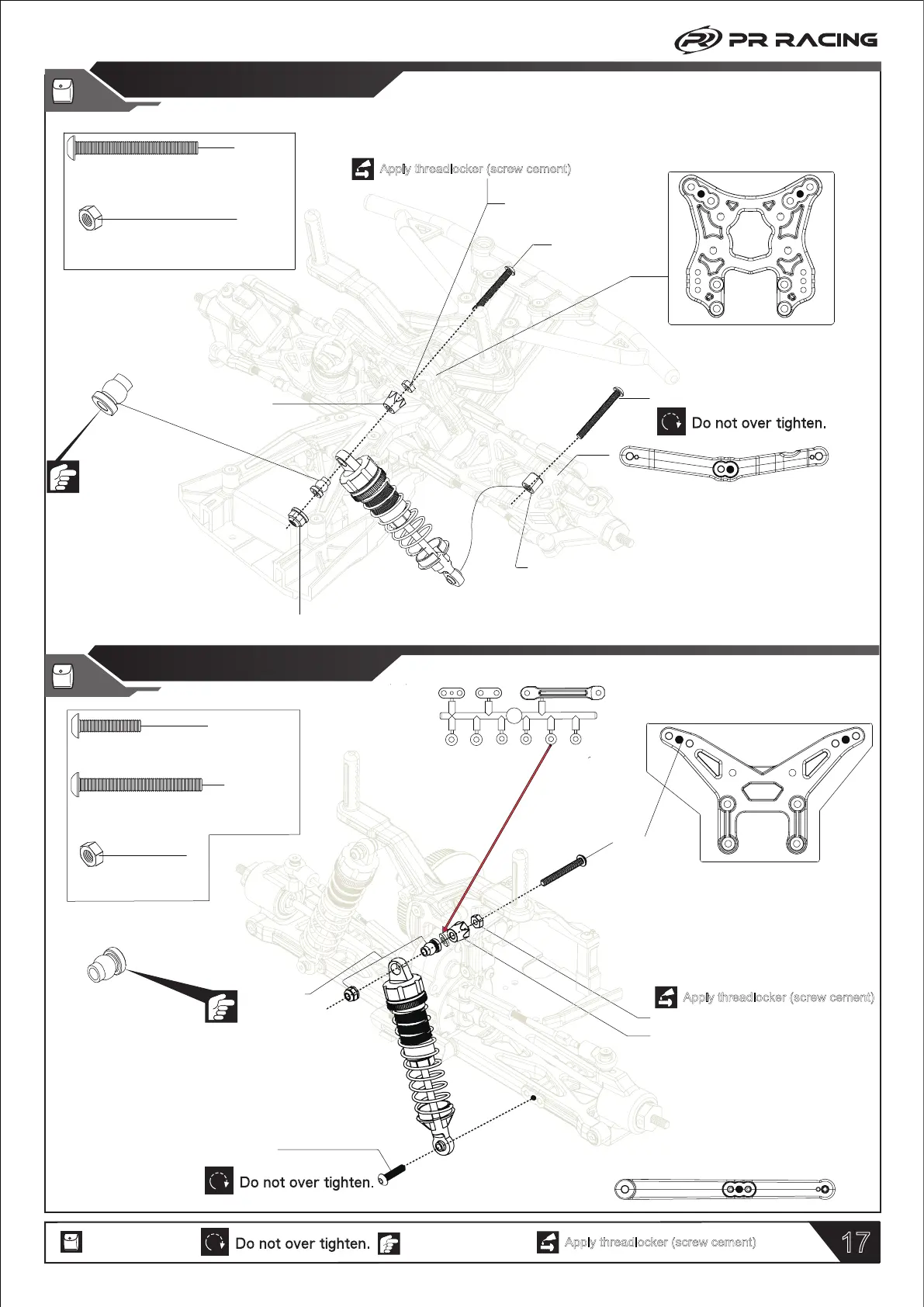

Part Bags used.
Front Shock Assembly
E2
Rear Shock Assembly
E3
BAG
E
BAG
E
M3X28mm Button Head Hex Screw
4
M3X28mm
68410066
68410066
67400036
Plastic
69440010
66400246
M3X28mm
80400126
83480016
M3 Nut
2
One side is reverse
threaded.
Note the direction.
17
Apply threadlocker (screw cement)
Apply threadlocker (screw cement)
80400056
M3X14mm Button Head Hex Screw
2
83480016
M3 Nut
2
80400126
M3X28mm Button Head Hex Screw
2
One side is reverse
threaded.
66430200
1mm
Apply threadlocker (screw cement)
(A BAG)
M3X14mm
68410066
83480016
M3X28mm
69440010
螺絲鎖入勿緊迫
