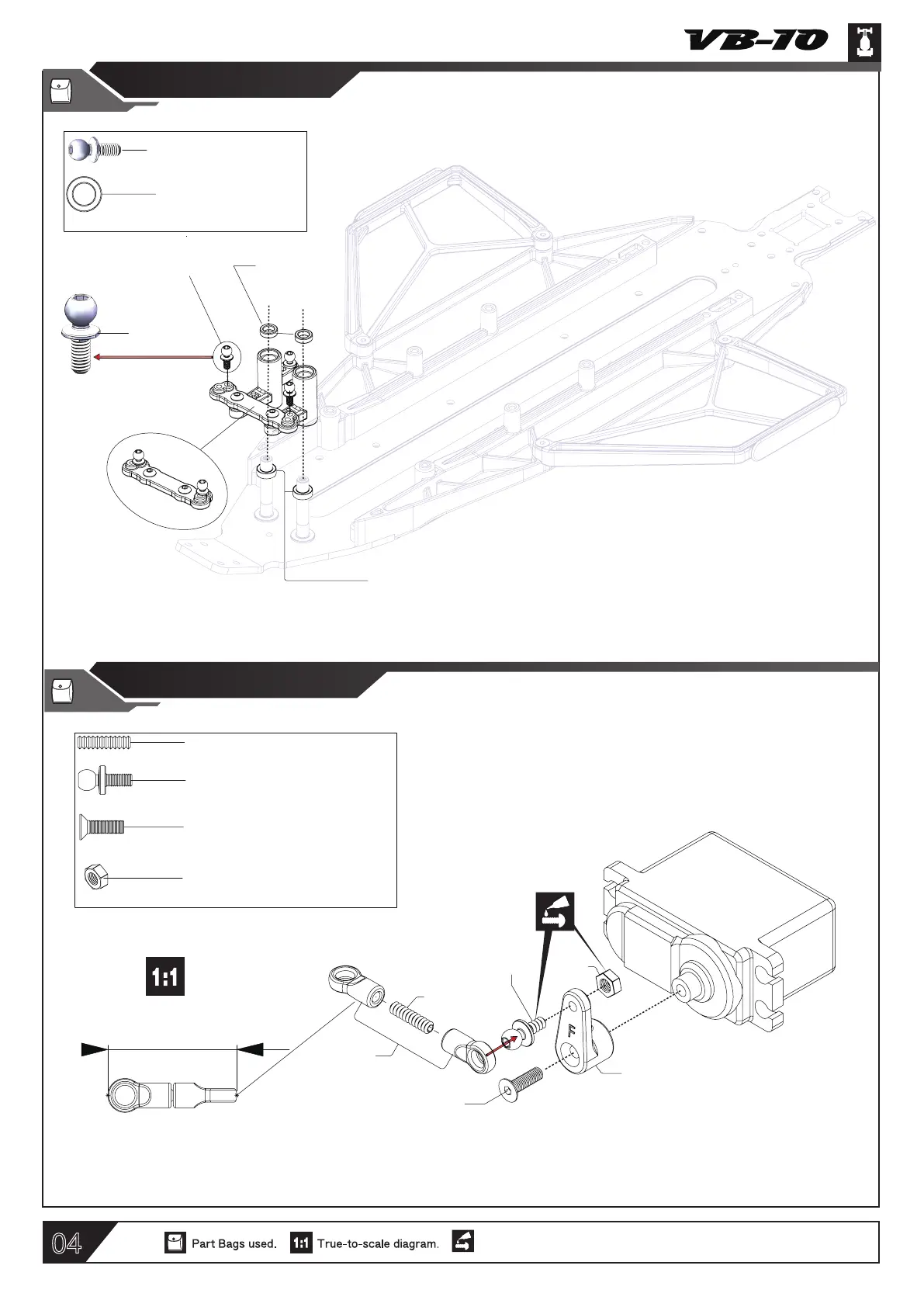

PR RACING VB-10 - PR VB-10 龜殼 說明書-內頁-04

Servo saver
A3
Steering Servo
A4
BAG
A
BAG
A
04
M3X10mm
66402466
66400066
M3X10mm
M4.8X6mm
M3
83480016
29.3mm
M3x10mm Set Screw-87400026
1
M4.8mmx6mm Ball Studs-68430036
1
M3x10mm Flat Head Hex Screw-82400106
1
83480016 M3 Nut
1
Apply threadlocker (screw cement)
2
66402106
4
M4.8X6mm
(-0.8mm)
5x8x2.5mm
Plastic Bearing
5x8x2.5mm
Plastic Bearing
-5x8x2.5mm Plastic Bearing
68430086-
M4.8X6mm(-0.8mm)
3:1
分辨缺角
Distinguish
