PRD 700

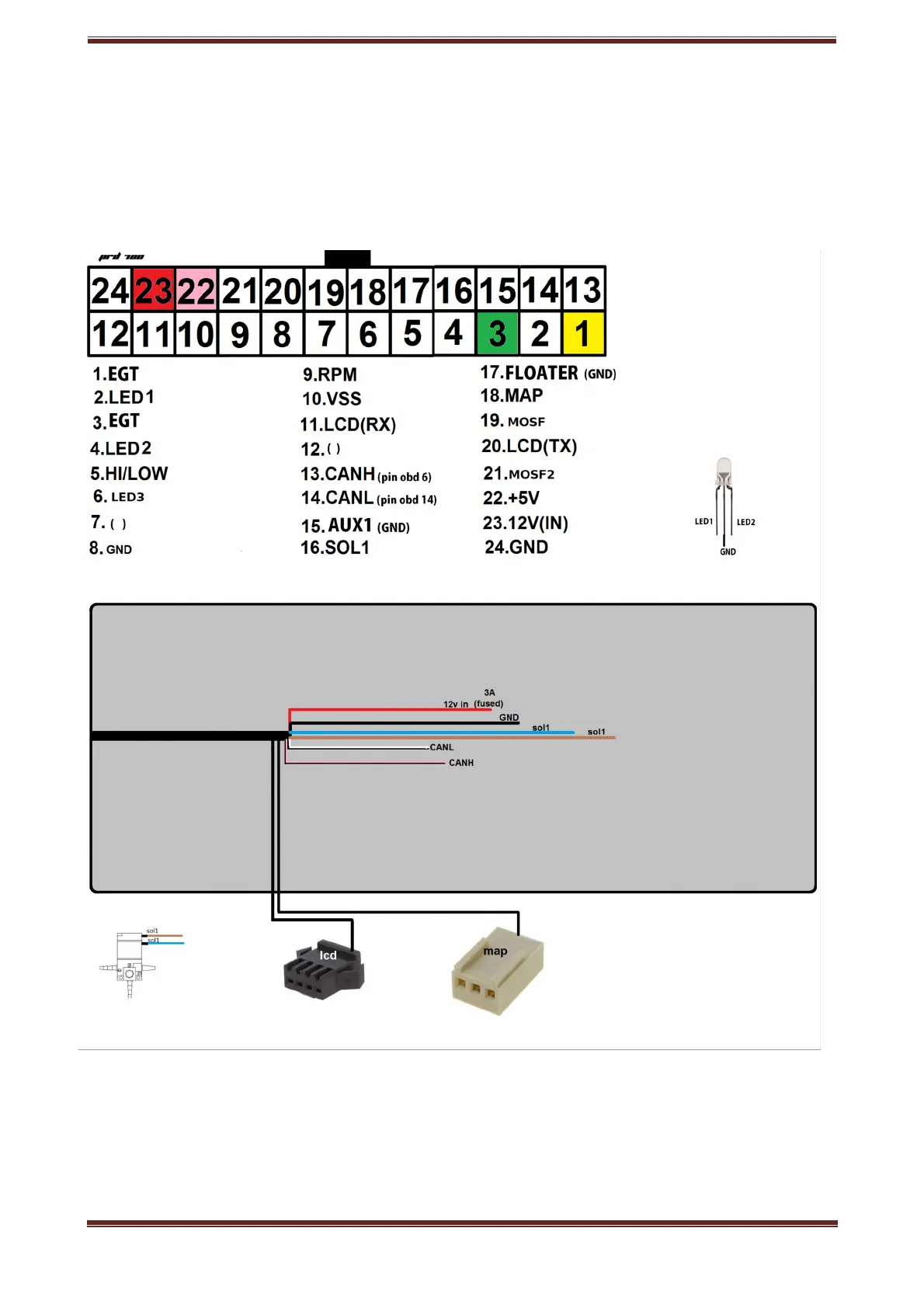

INSTALLATION INSTRUCTIONS / WIRING
(24pin)
WARNING! When connecting Lambda sensor (LSU 4.2 – standard) follow the colored
code not the numbered one.
Prd.com.gr - PRD 700 Manual page 43
