Wiring List, Pump(s)

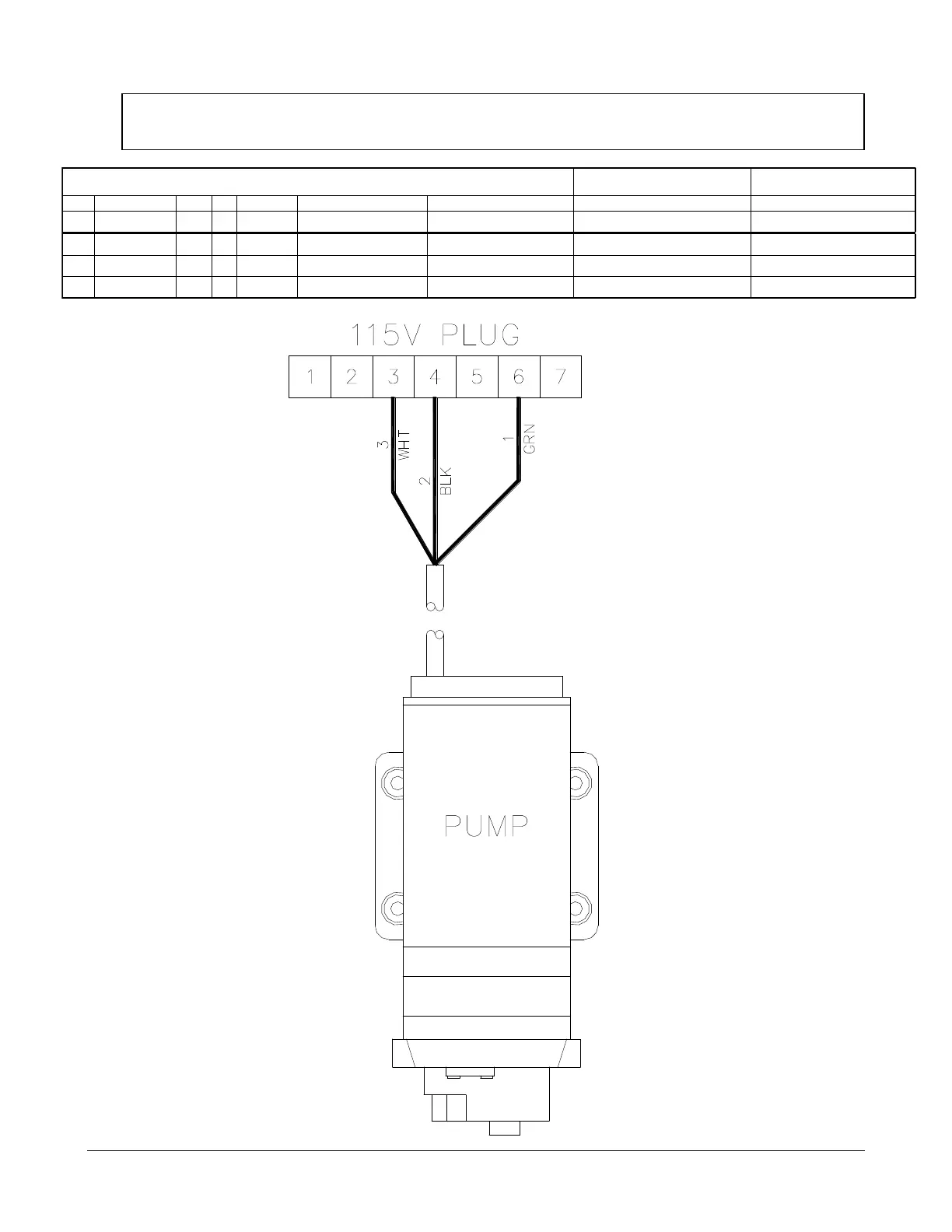

Wiring List (7 Pin Circular Plug Pump)

No. Part# Color Ga Length From Conn. ToConn. From Location To Location

1 XXXXXX GRN 16 FULL MPIN PUMP CORD 7 PIN PLUG #6 PUMP CORD

2 XXXXXX BLK 16 FULL MPIN PUMP CORD 7 PIN PLUG #4 PUMP CORD

3 XXXXXX WHT 16 FULL MPIN PUMP CORD 7 PIN PLUG #3 PUMP CORD
