5.21i Elliptical Fitness Crosstrainer
Page 23
Procedure 6.2 - Troubleshooting the Keypad and Upper PCA
If the function keys on the electronic console are unresponsive, the problem may be either the
upper PCA or keypad. The keys on this unit are touch sensitive keys. It is necessary to use the
keypad diagnostics to troubleshoot the key functions.
Procedure
1. Set the on/off switch in the “off” position.
WARNING
Before continuing with this procedure, review the Warning and Caution statements listed in
Section One.
2. If the EFX powers up and functions normally until a particular key(s) is pressed, skip to step
11.
3. If a “error 5 (key depressed)” message is immediately displayed when the EFX is powered
up, continue with the next step.
4. This condition may be caused by either the keypad or upper PCA. Set the on/off switch in
the “off” position.
5. Remove the four screws that fastens the display housing front panel to the display housing
backing plate. These screws are located on the rear of the display housing backing plate.
6. Lift the display housing front panel off of the display housing backing plate. Remove the
keypad connector from the upper PCA. See Diagram 6.2.

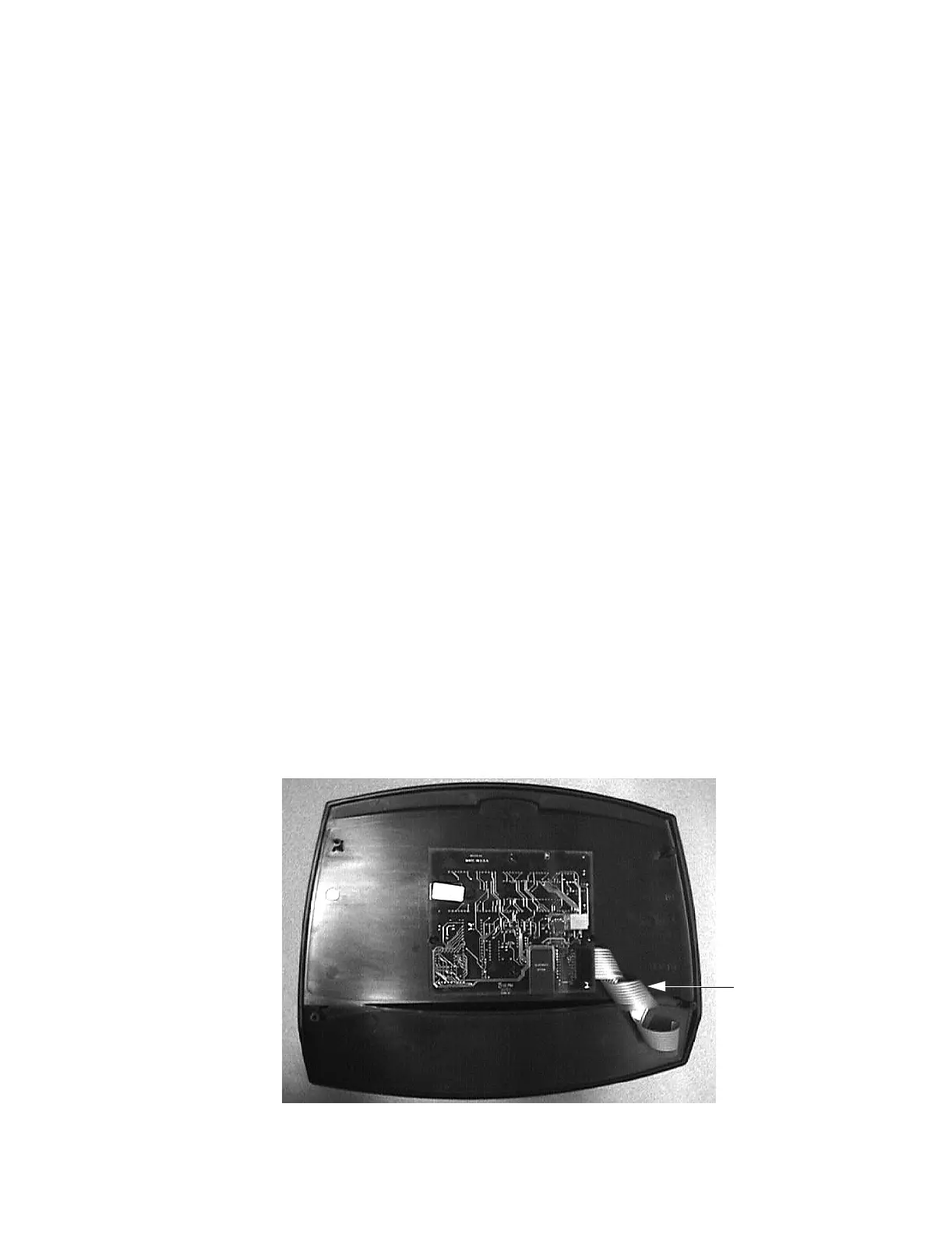

Diagram 6.2 - Upper PCA & Keypad
Keypad
Connector
To Next Page
