5.21i Elliptical Fitness Crosstrainer
Page 41
Procedure 7.4 - Replacing a Lower or Upper Interconnect Cable
Procedure
Note: Before you install a new interconnect cable, ensure that the interconnect cable is
defective. Refer to Procedure 6.1.
1. Set the on/off switch in the off position.
2. Pry the end cap out the front of the frame base tube with a thin bladed screwdriver (See
Diagram 7.6).
3. Carefully withdraw both cables and mid-point connector.

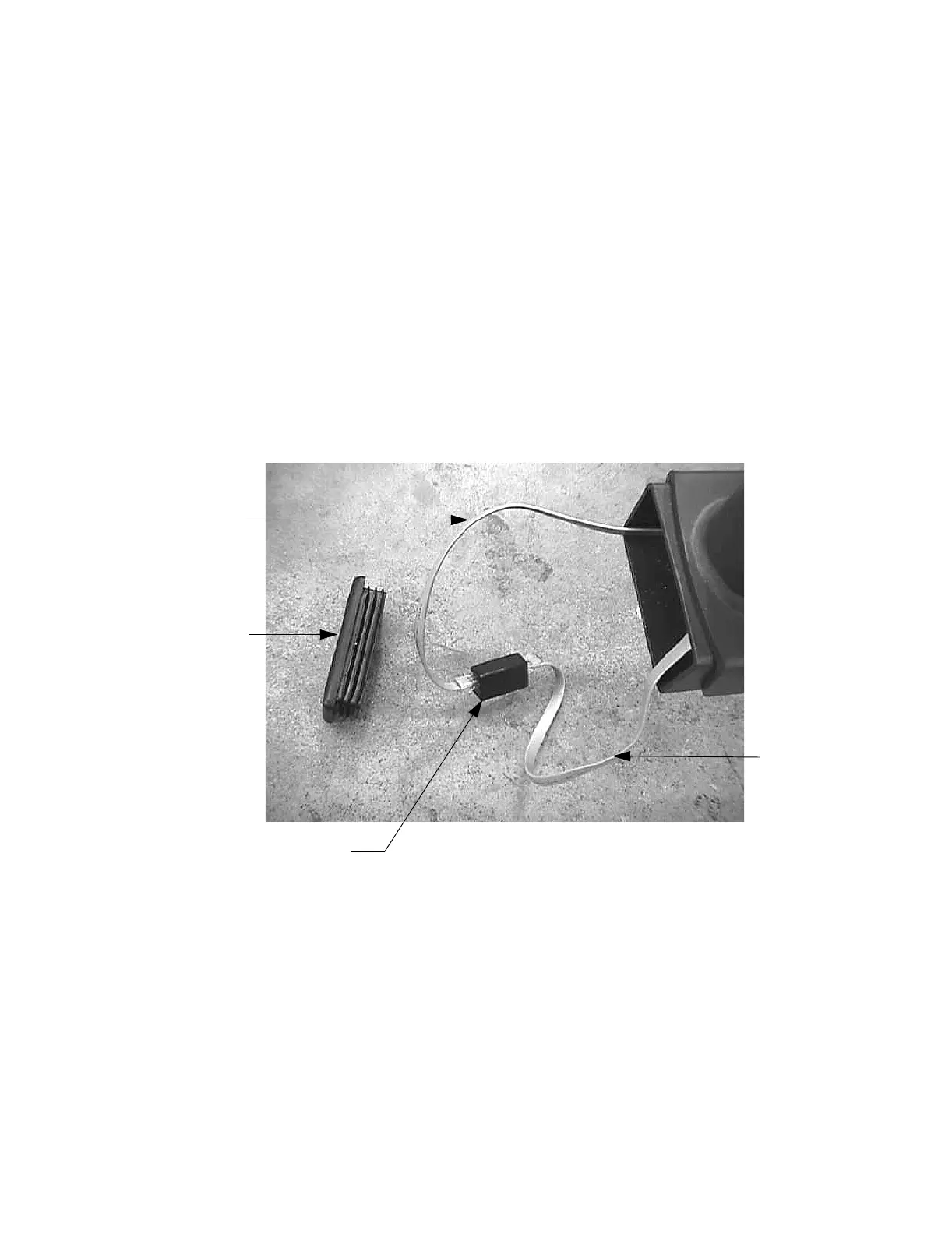

Diagram 7.6 - Interconnect Cables and Mid-Point Connector
4. If you are replacing the upper interconnect cable skip to step 9. If you are replacing the
lower interconnect cable continue with step 5.
5. Remove the left and right rear cover sections. Remove the two screws that fasten the lower
PCA mounting bracket to the frame. See Diagram 7.4. Rotate the lower PCA mounting
bracket to expose the interconnect cable. Disconnect the interconnect cable from the lower
PCA.
Lower
Interconnect
Cable
Mid-point
Connector
End Cap
Upper
Interconnect
Cable
To Next Page
