Precor Discovery Series Assembly Guide

Route the cable on the weight tower
The weight tower ships with the kick cover and pulley cover attached.

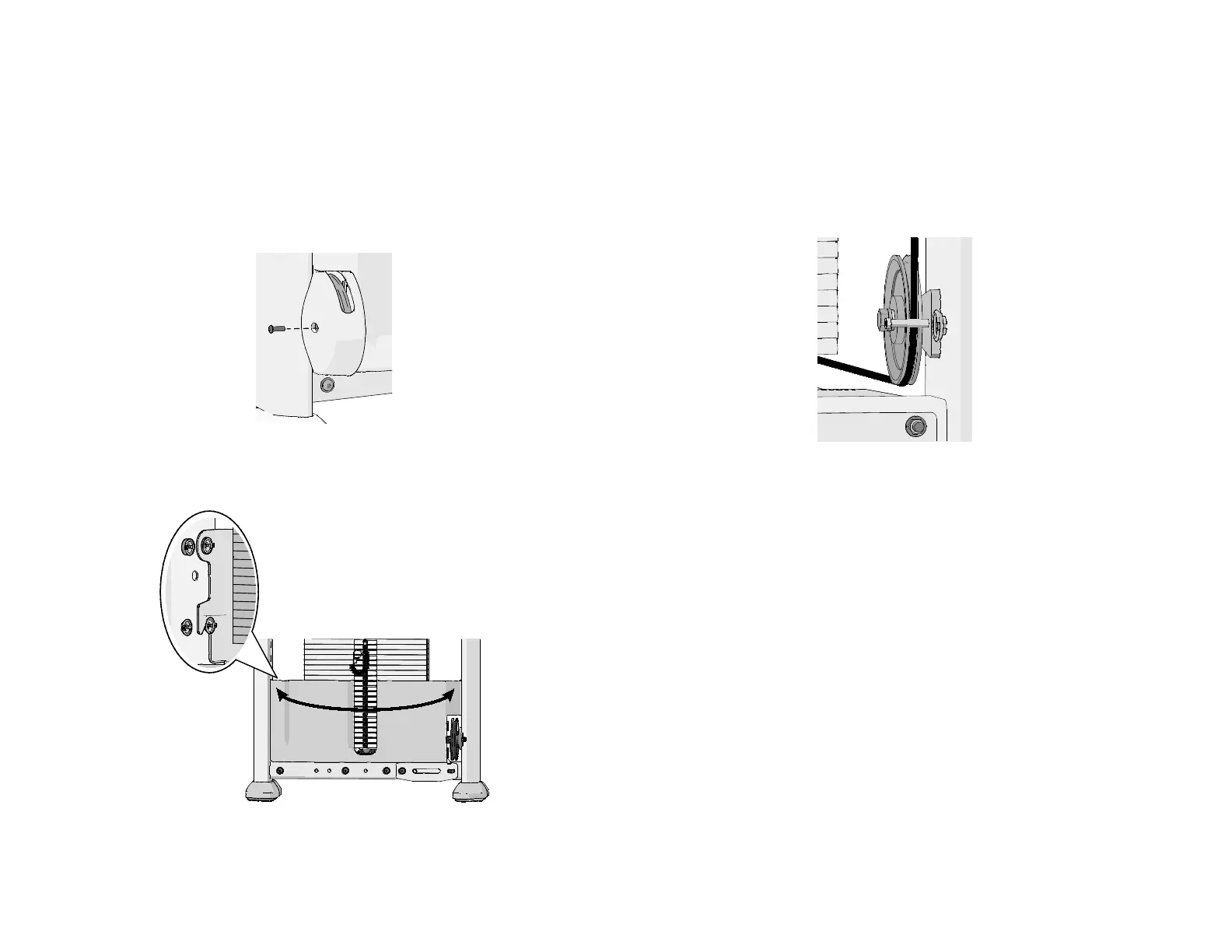

To route the cable on the weight tower:
1. Using a 5/32-inch hex bit, remove the screw and pulley cover and set them
aside.
2. Grasp the kick cover on either side and press inward slightly so that the
notches on the back of the kick cover unlock from their mounts (see arrows in
the following figure).
3. Gently lift the kick cover and set it aside.
4. Using a 5/32-inch hex bit, remove the shoulder bolt next to the pulley. Route
the cable around the pulley, then replace and tighten the shoulder bolt with 8
ft-lb (11 N-m) of torque.
5. Replace the kick cover and then the pulley cover using a 5/32-inch hex bit.
