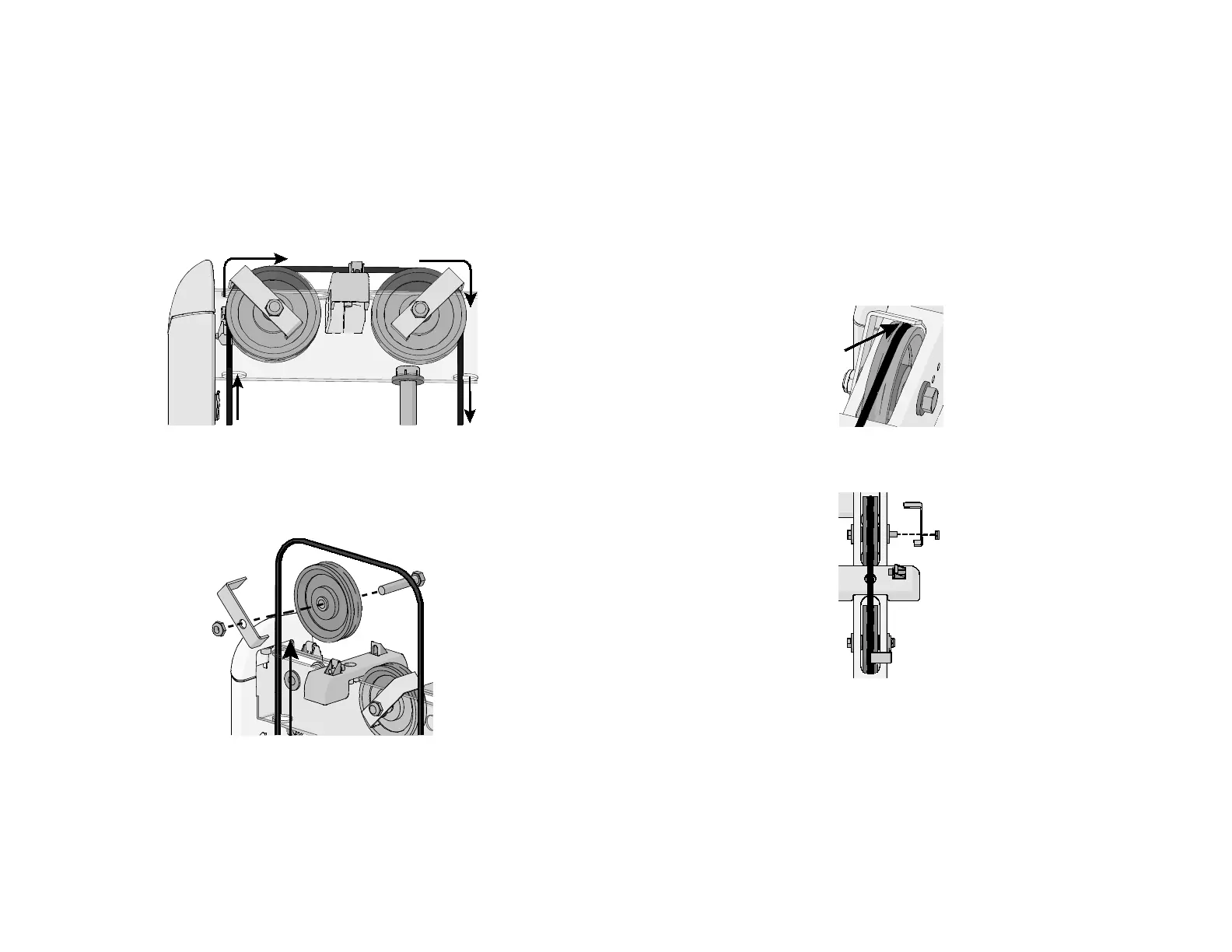

Thread the cable through the top frame of the weight tower
The cable passes through an opening in the top of the weight tower frame, over
the pulleys and then back down through the frame to the weight stack. Use the
following procedure to remove both cable retainers and the pulley that covers the
opening where the cable passes upward through the frame.
To route the cable through the weight tower:
1. Locate the pulley positioned over the opening where the cable will thread up
through the weight tower. Using a 3/8-inch hex bit and a 3/4-inch wrench,
remove the bolt, and then remove the pulley and cable retainer.
2. Thread the cable up through the weight tower frame. Replace the pulley and
cable retainer making sure that the cable is positioned in the pulley trough and
under the cable retaining bracket. Tighten the bolt with 124 ft-lb (168 N-m) of
torque.
Note When properly installed, the cable retainer keeps the cable securely
seated in the pulley. However, the retainer must not contact the cable while
the cable is under load (for example, during a workout).
3. Using a 3/8-inch hex bit and a 3/4-inch wrench, remove the nut and cable
retainer on the second pulley.
4. Thread the cable over the pulley and replace the cable retainer, making sure
that the cable is positioned in the pulley groove and under the cable retainer.
Using a 3/8-inch hex bit and a 3/4-inch wrench, tighten the nut with 124 ft-lb
(168 N-m) of torque.
9
