EFX5.25 Elliptical Fitness CrossTrainer Assembly Guide 2

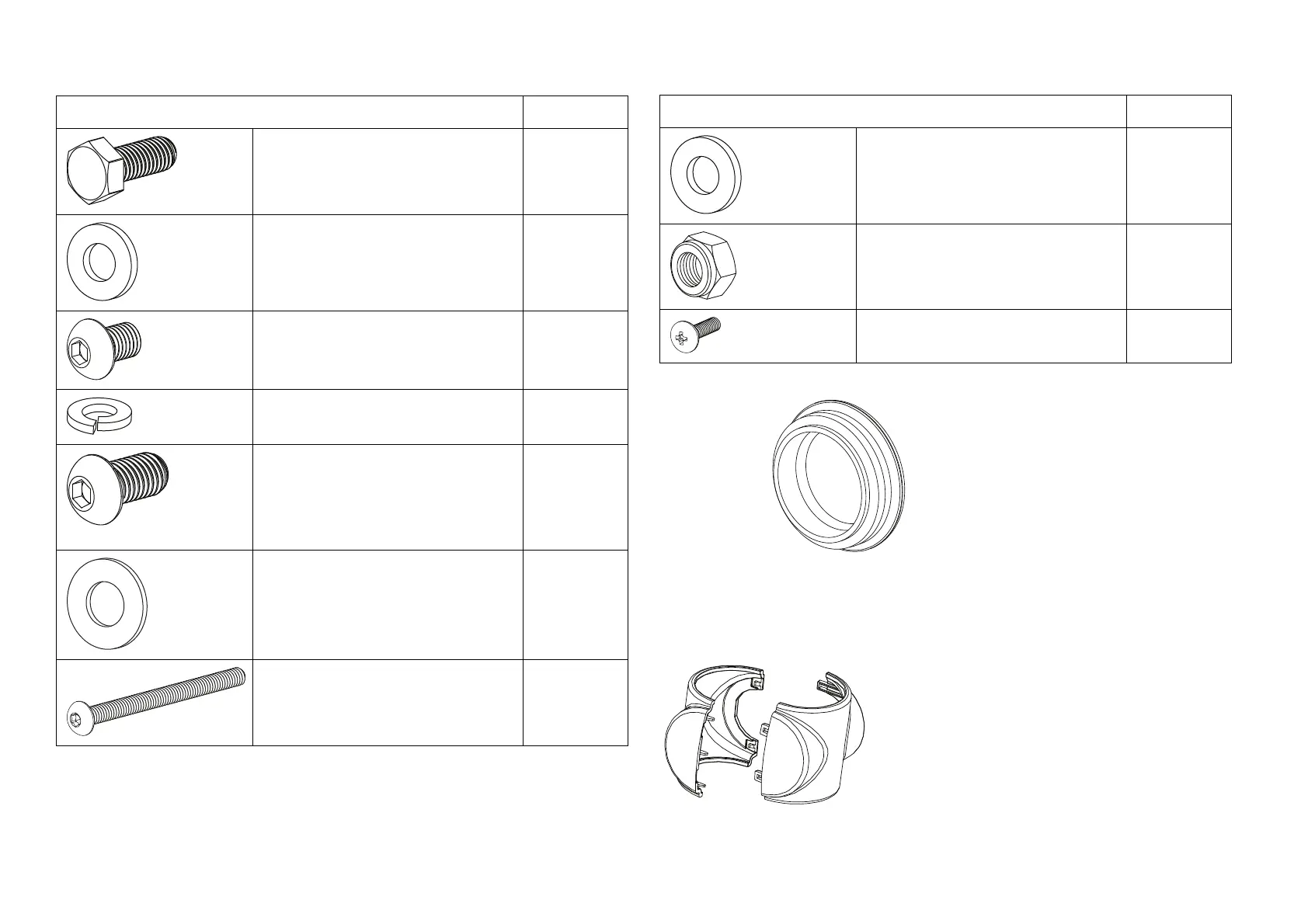

Hardware Kit
Fasteners Quantity
(A) Hex head screw (M8 x 20 mm)
8
(B) Flat washer (M8)
8
(C) Buttonhead screw (M8 x 12 mm)
6
(D) Lock washer (M8)
6
(E) Buttonhead (M10 x 20 mm)
2
(F) Flat washer (M10)
2
(G) Buttonhead screw (M5 x 50 mm)
2
(H) Flat washer (M8)
4
(J) Locknut (M8)
2
(K) Phillips-head screw (M5 x 16 mm)
3
Fasteners Quantity
2 —
Handlebar
caps (L)
2 - Moveable arm cuffs (each cuff is
two pieces) (M)
1 — Double-ended box wrench (N)
1 — Hex key (P)
1 — Power cord
To Next Page
