EFX5.25 Elliptical Fitness CrossTrainer Assembly Guide 5

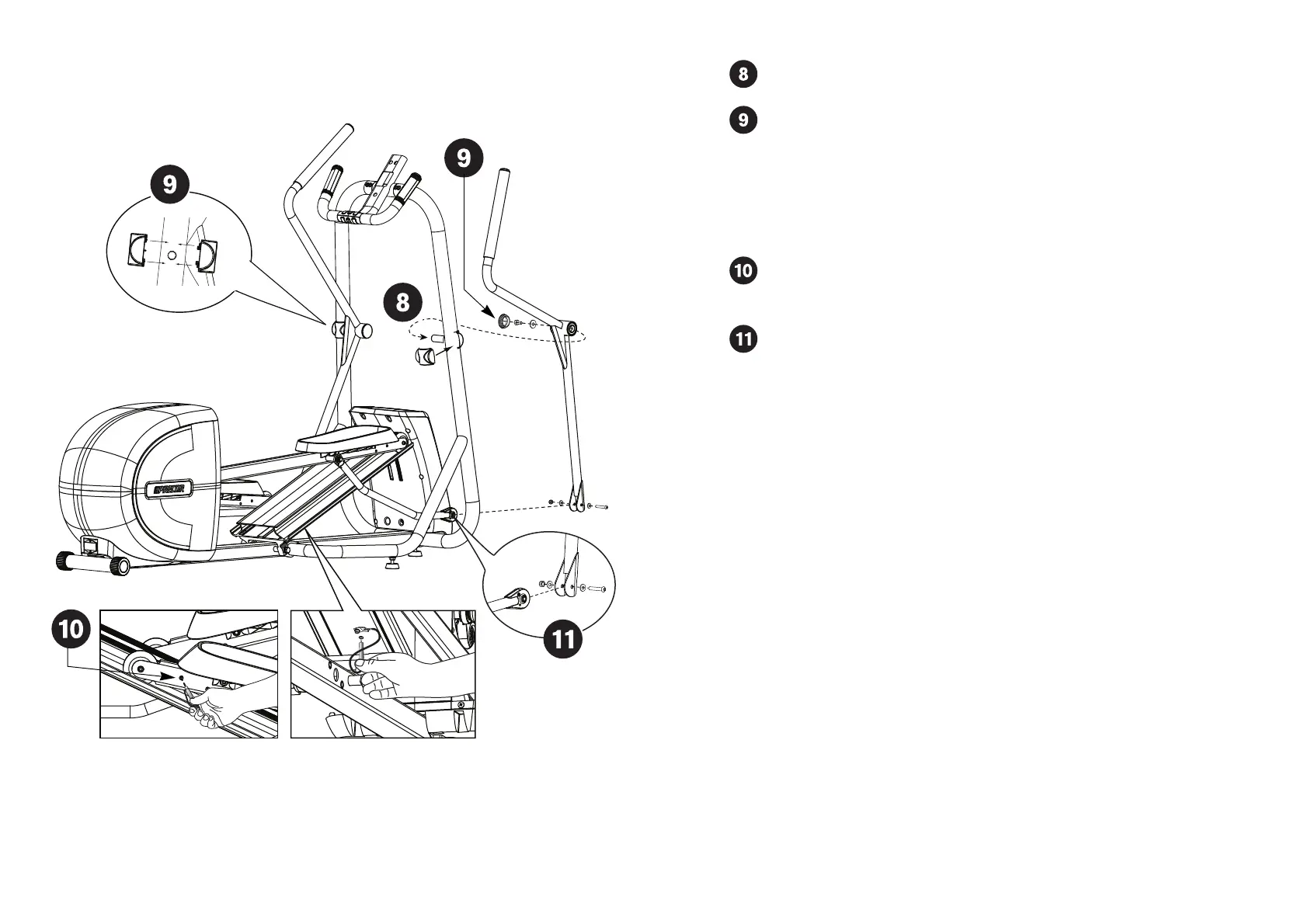

Attach the right moving handlebar. Slide the handlebar pivot joint
onto the stabilizer axle (use a rubber mallet if needed).
Secure the handlebar using one hex head screw (E) and one
washer (F). Fully tighten. Snap the moveable arm cuff (M) into
place and then place a handlebar cap (L) onto the connection.
CAUTION: Guide the handlebar to its balance point and let it rest
there. When attaching the lower link arms, have your assistant
hold the moving handlebar for safety. Failure to do so could
result in injury.
Remove the locking pin so you can move the foot pedals to a
convenient location to attach the moving handlebars. Store the
locking pin underneath the ramp.
Attach the handlebar to the lower link arm using one buttonhead
screw (G), two washers (H), and one locknut (J). Fully tighten.
Repeat steps 8, 9, and 10 to secure the left handlebar.
To Next Page
