Precor EFX534i t User Manual

page 13
COMMERCIAL PRODUCTS DIVISION
8. Position the upright support over the base. Diagram 6. Have your assistant
move the upright support close to the front of the base assembly while you
thread the cable through the grommet hole and out the front of the base tube
(see inset #1). Make sure that the display console (on the upright support)
faces the rear of the unit (see inset #2).
CAUTION: As you assemble the unit, do not fully tighten the fasteners
until instructed to do so. Finger tighten the fasteners or use the hex key so
that the unit is stable, but the fasteners still allow room for adjustments.
9. Secure the upright support to the base assembly. Diagram 6. Align the
mounting holes and thread the two bolts (G) with washers (H) through
opposite sides of the upright support and into the base assembly. Finger
tighten each bolt. Do not fully tighten the fasteners until the entire unit has
been assembled.

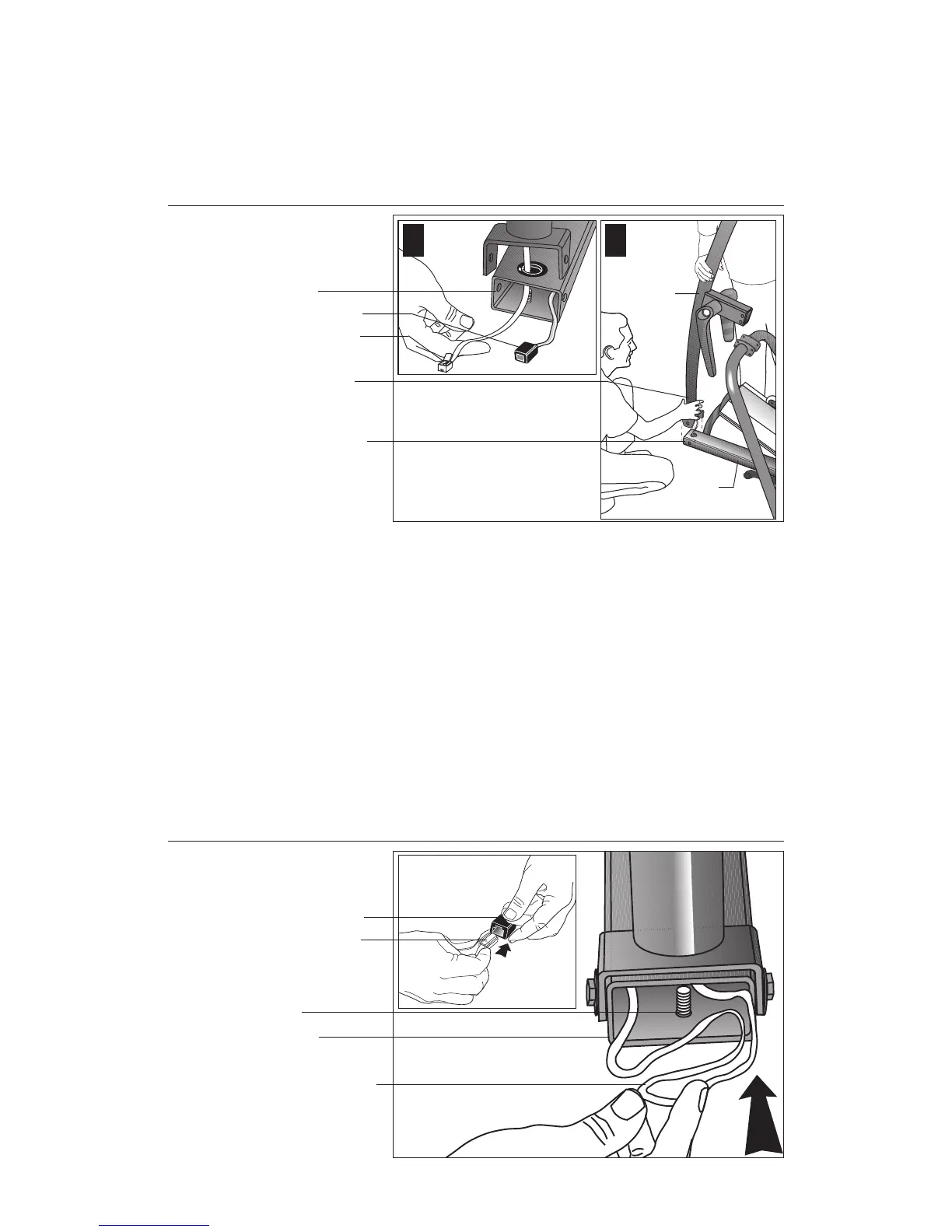

Diagram 6
Route the cable
through the grommet
and attach the upright
support.
Cable connector
Have your assistant
hold the upright
support while you
secure it to the base.
2
1
Two bolts (G) with
washers (H)
Cable receptacle
Upright
support
Base
assembly
Diagram 7 Connect the
cables.
Cable connector
Cable receptacle
Place excess cable
into the base tube.
Height adjuster
threads
Base tube
Base tube

Precor EFX534i t Specifications

Frame and Construction

crossramp	20° (fixed)
frame	Powder-coated steel
regulatory approval	FCC, ETL, CE

Weight and Dimensions

length	80 inches (203 cm)
width	32 inches (81 cm)
height	64 inches (162 cm)
weight	207 lbs (94 kg)
shipping weight	255 lbs (116 kg)
stride length	18 inches (46 cm)
