2.

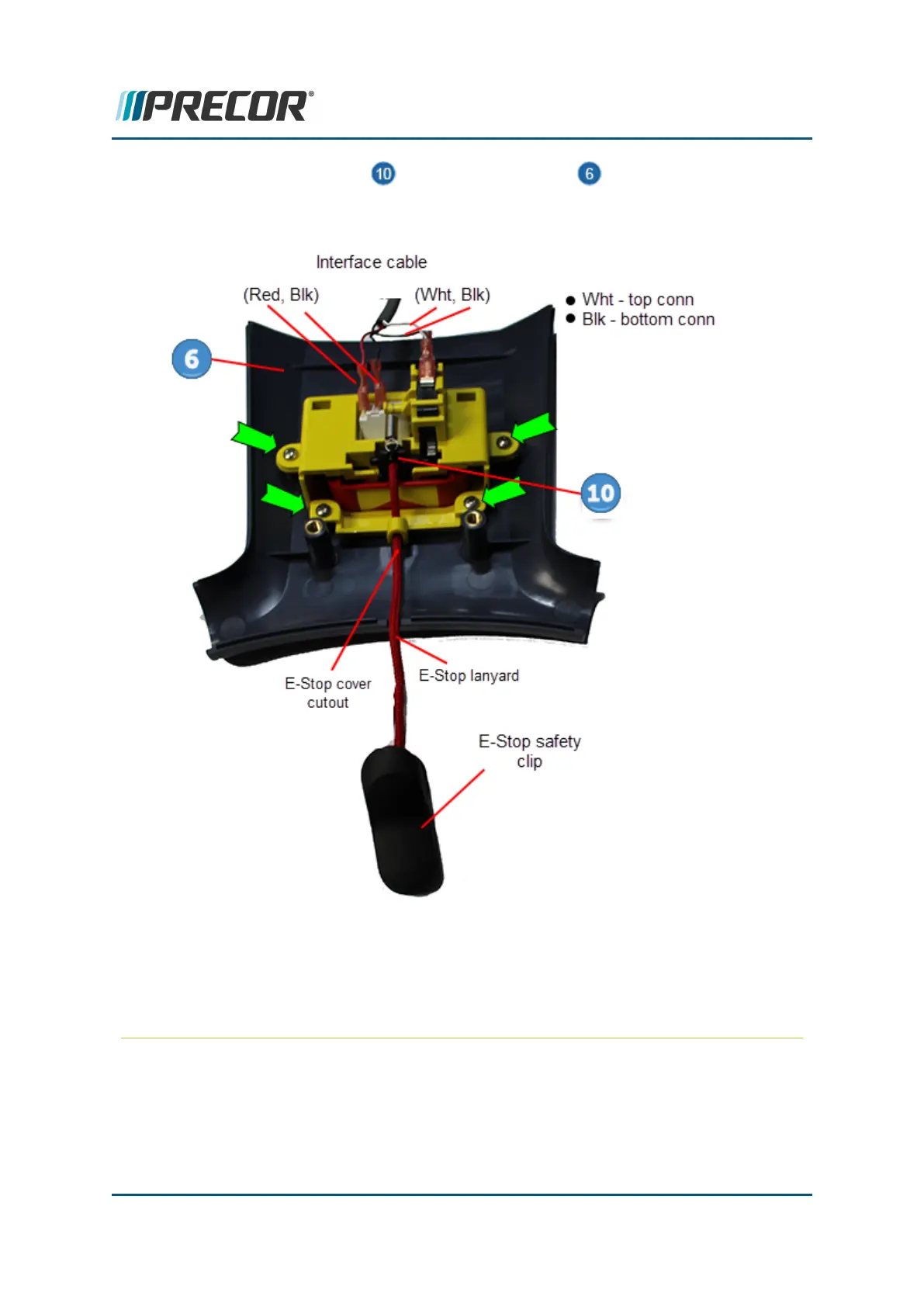

Reinstall the E-Stop switch onto the dash top cover and secure using the four
#2 Philips fasteners. Make sure the interface cable electrical (red/black, white/black)
connections are correctly attached and secure.
3. Position the dash top cover onto the dash bottom cover and secure using the two #3
Phillips fasteners. Make sure the interface cable is routed correctly and not pinched.
Make sure that the stop safety clip lanyard is correctly positioned in the cover cut out,
is not pinched, and freely moves when pulled and retracted.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 98
6 Replacement Procedures
Covers and Panels Replacement
