Precor Experience 600 Series - Page 142

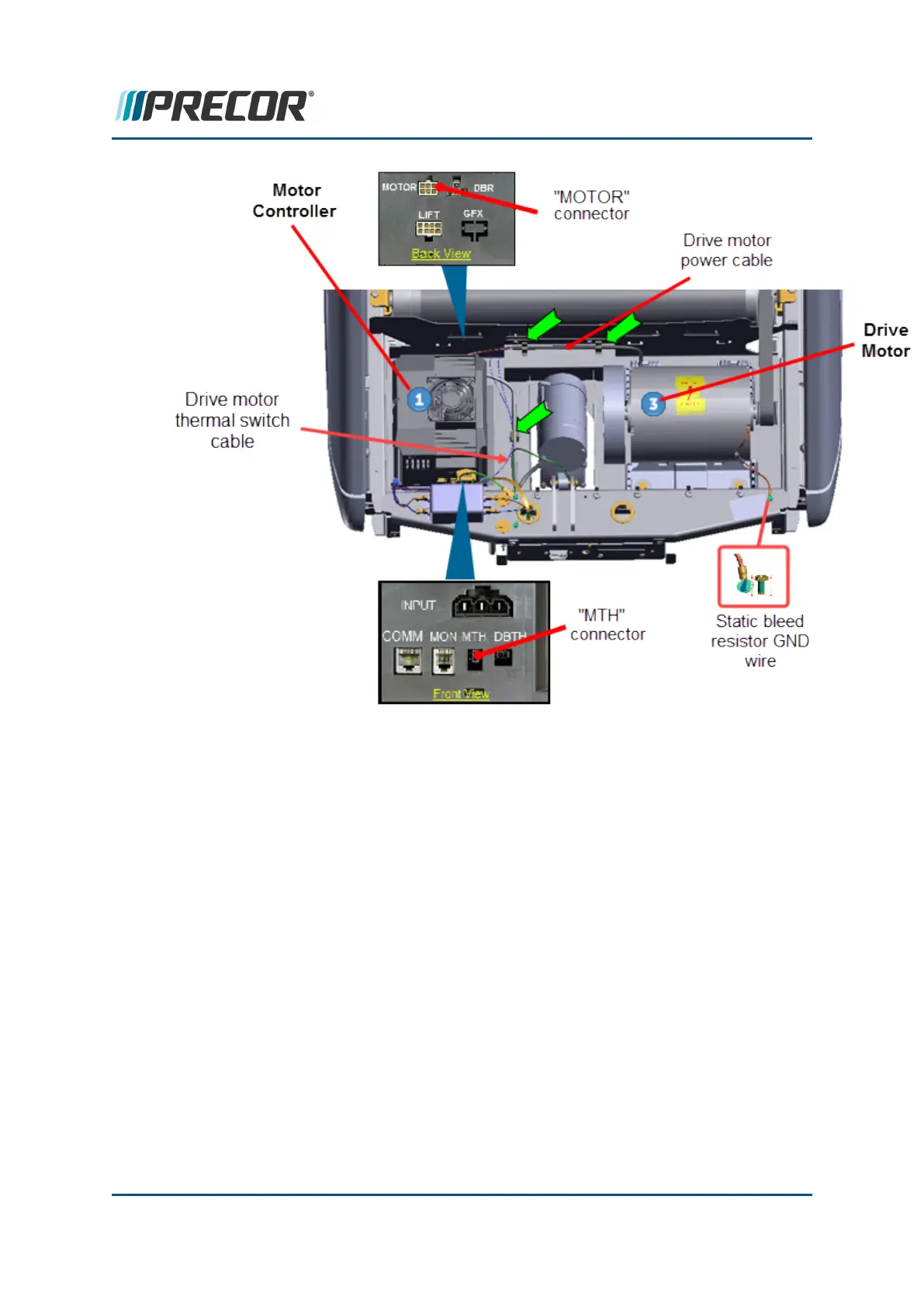

4. Remove the Drive Motor static bleed resistor frame chassis ground wire (Orange
wire). Use a 5/16" socket (or nut driver) to remove the green ground screw and two
tooth lock washers. Retain part(s) and/or fastener(s) for installation.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 132
6 Replacement Procedures
Drive Motor Replacement
