6. Move the running belt so that the seam is positioned on the bottom side of the deck.
7. Center and square the running belt on the deck and the Drive and Take-up rollers.
8. Attach two running belt tension gauges, one on each side of the running belt and posi-
tioned so that they are opposite each other. Place the gauges so that the trim landing
mounting brackets do not interfere with the gauge movement.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with

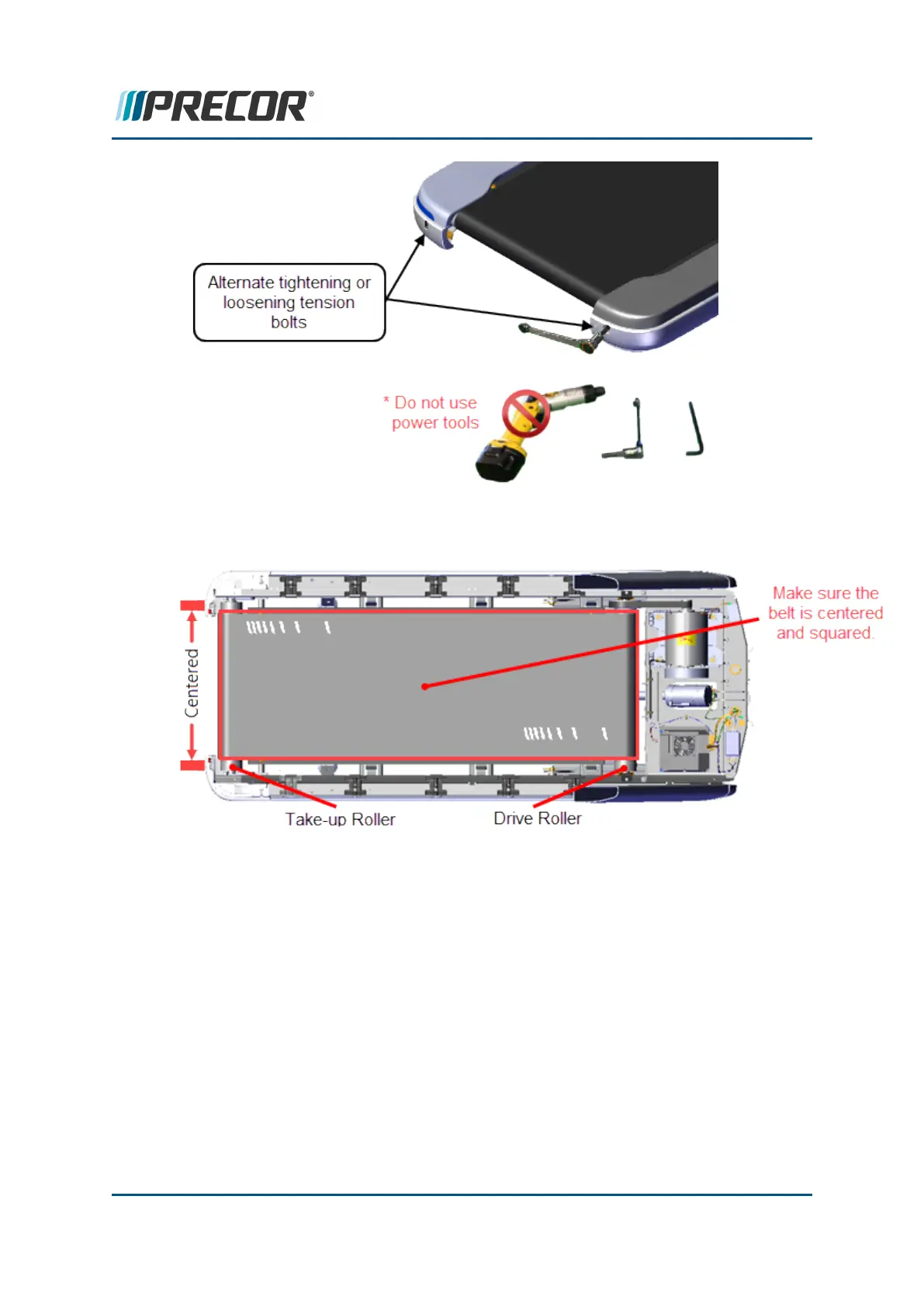

any questions.
Page 64
5 Adjustment Procedures
Running Belt Tension and Tracking Adjustment
