Assembling the AMT 23
8. On the opposite side of the center support from the
handles of the screwdrivers, insert the four ⁵₁₆-inch x
3¹₂-inch hex head bolts. Attach a ⁵₁₆-inch nylon lock nut
to each bolt. Partially tighten the fasteners, then remove
the screwdrivers.

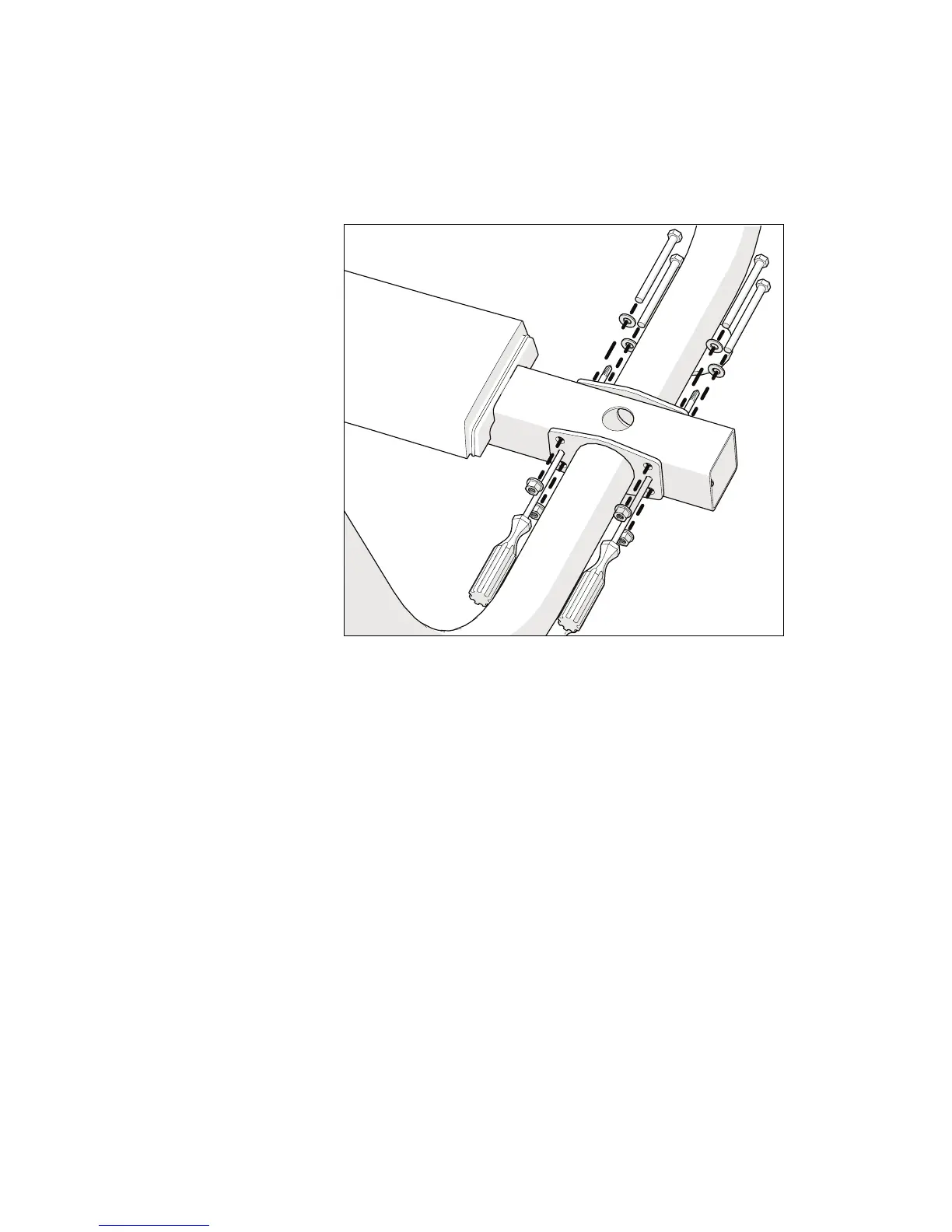

Figure 6: Lower side arm attachment
