24 Assembling and Maintaining AMT 800-Series Adaptive Motion Trainers
9. Adjust the side arm supports as needed, then tighten all
of its fasteners to 160 inch-pounds of torque.
10. Extend the adjustable feet on the side arm supports until
they touch the floor, then remove the spacer block from
under the back end of the AMT.
Note: If necessary, use a ⁹₁₆-inch open-ended wrench to
loosen the jam nuts on the adjustable feet.
11. Remove the two #10 x ³⁄₄-inch Phillips-head screws
securing the upper back corner of the inner plastic
molding to the end of the right side arm.

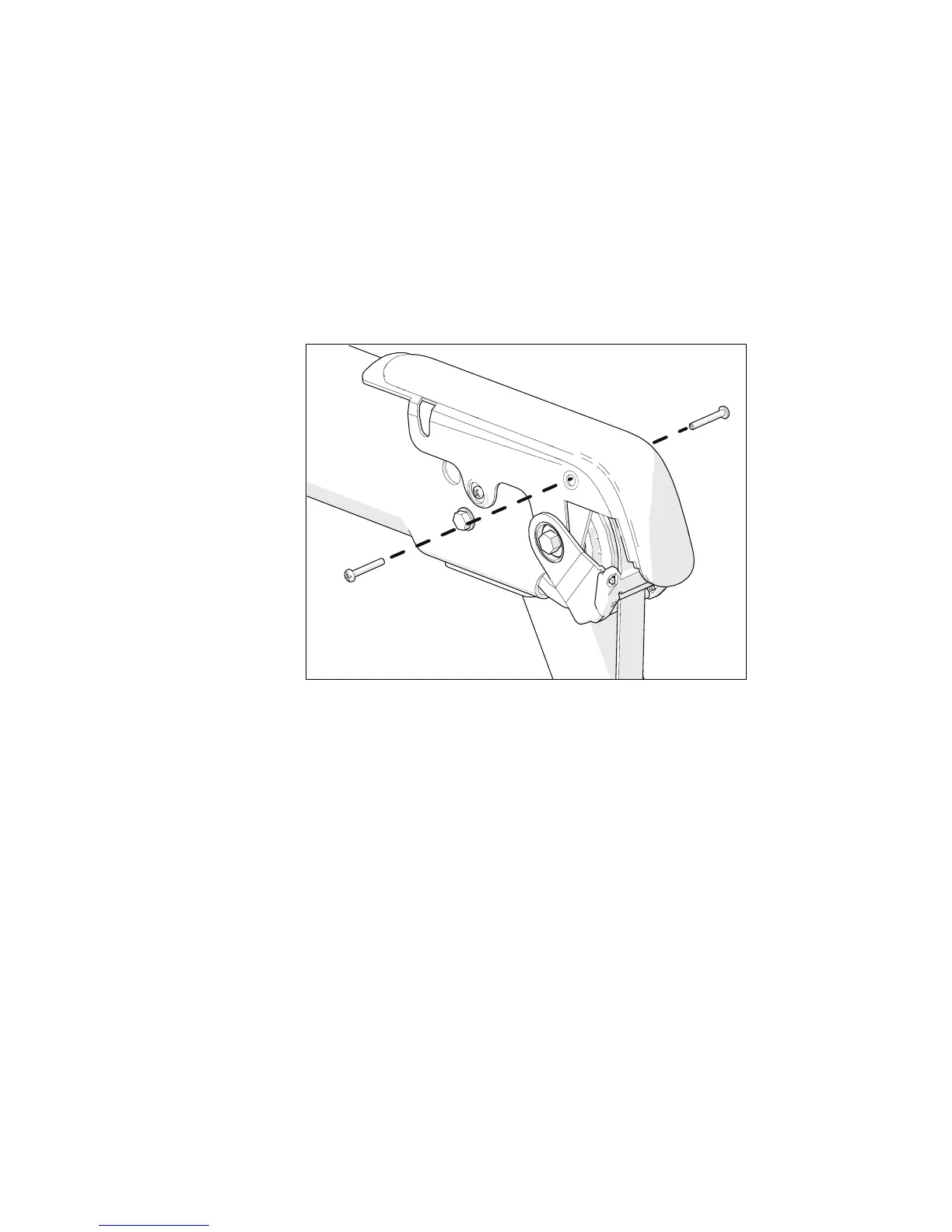

Figure 7: Removal of screws from inner plastic molding
