Assembling the AMT 25
12. Fit the right-hand inner and outer side arm covers to the
right side arm. Insert three #10 x 1¹₄-inch self-tapping
screws and the two #10 x ³₄-inch screws you removed in
the previous step, then tighten all of the screws
completely using a #2 Phillips screwdriver.
Note: Tighten the screws to between 8 and 12
inch-pounds. Alternatively, tighten the screws until the
two side arm covers are in full contact, then turn the
screws an additional quarter turn.

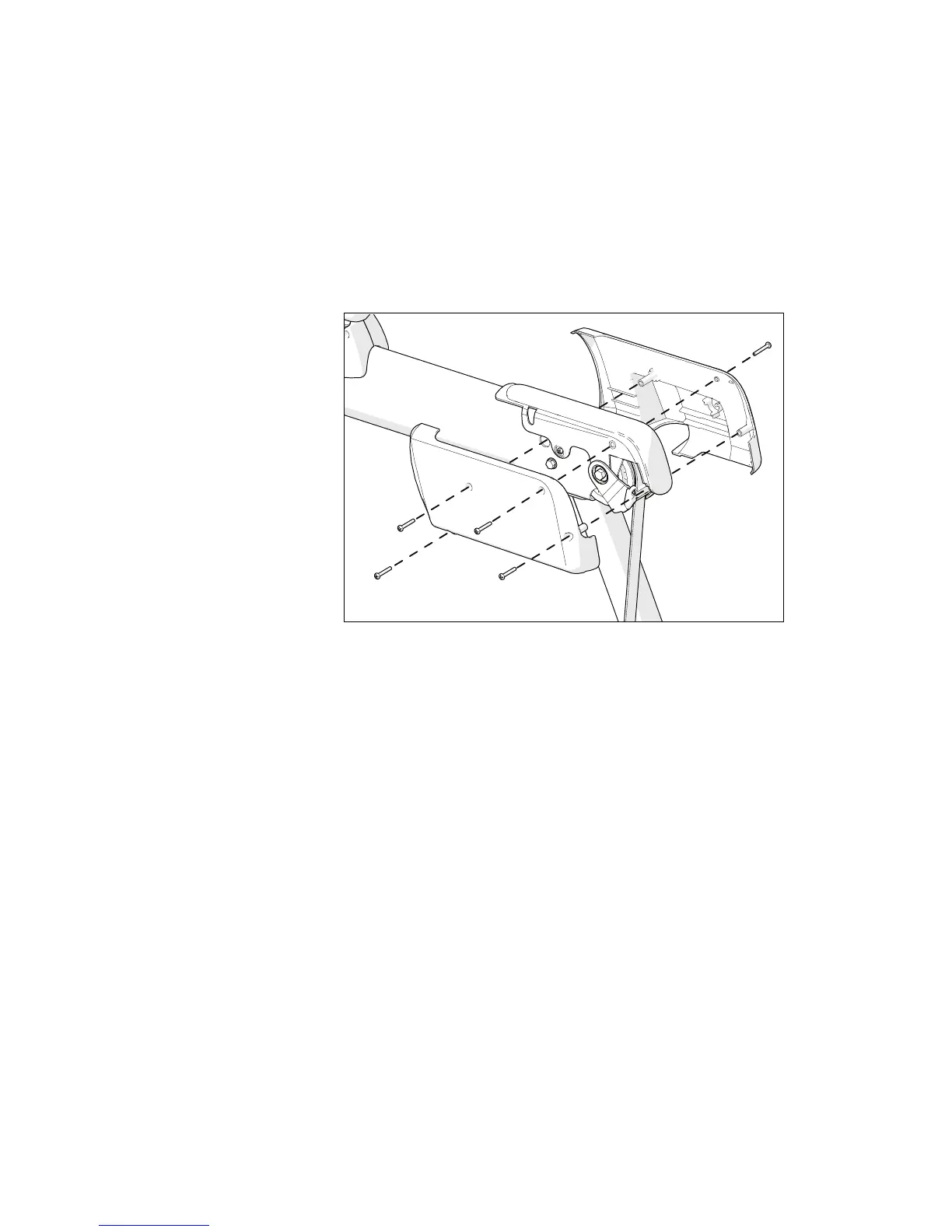

Figure 8: Side arm cover attachment
13. Repeat the previous two steps for the left side arm.
After the side arm supports are secured, move the AMT off of
its shipping pallet to the location where you intend it to be
used.
