Item Code Description
10800018 Room thermostat ACV 22
1x 1x
10510100
Outside temperature sensor, 12kΩ — AF120
1x 1x
10800104
2 circuit manifold DN32:
With built-in wall mounts.
1x
10800107
High temperature kit DN32:
Includes: a circulator, two isolation valves,
the check valve and two thermometers.
1x 2x
10800142
Manifold connection kit DN32
Includes: two stainless steel hoses Ø 6/4"
with two reducers Ø 5/4"
1x 1x
5476G003
Sensor NTC 12kΩ:
Monitors the external domestic hot water tank.
1x
INSTALLATIoN
The heating system (radiators or floor) is controlled by an
On/Off room thermostat.
The domestic hot water tank is controlled by an intermediate
NTC sensor. The domestic hot water priority is always
active.
In this configuration, the boiler constantly adapts its operation
to the outdoor temperature, if an outside temperature
sensor is connected.
The circulator is triggered as soon as the room thermostat
generates a heat demand.
Advantages for the user:
- Comfort
- Maximum output
- Simplicity of the system

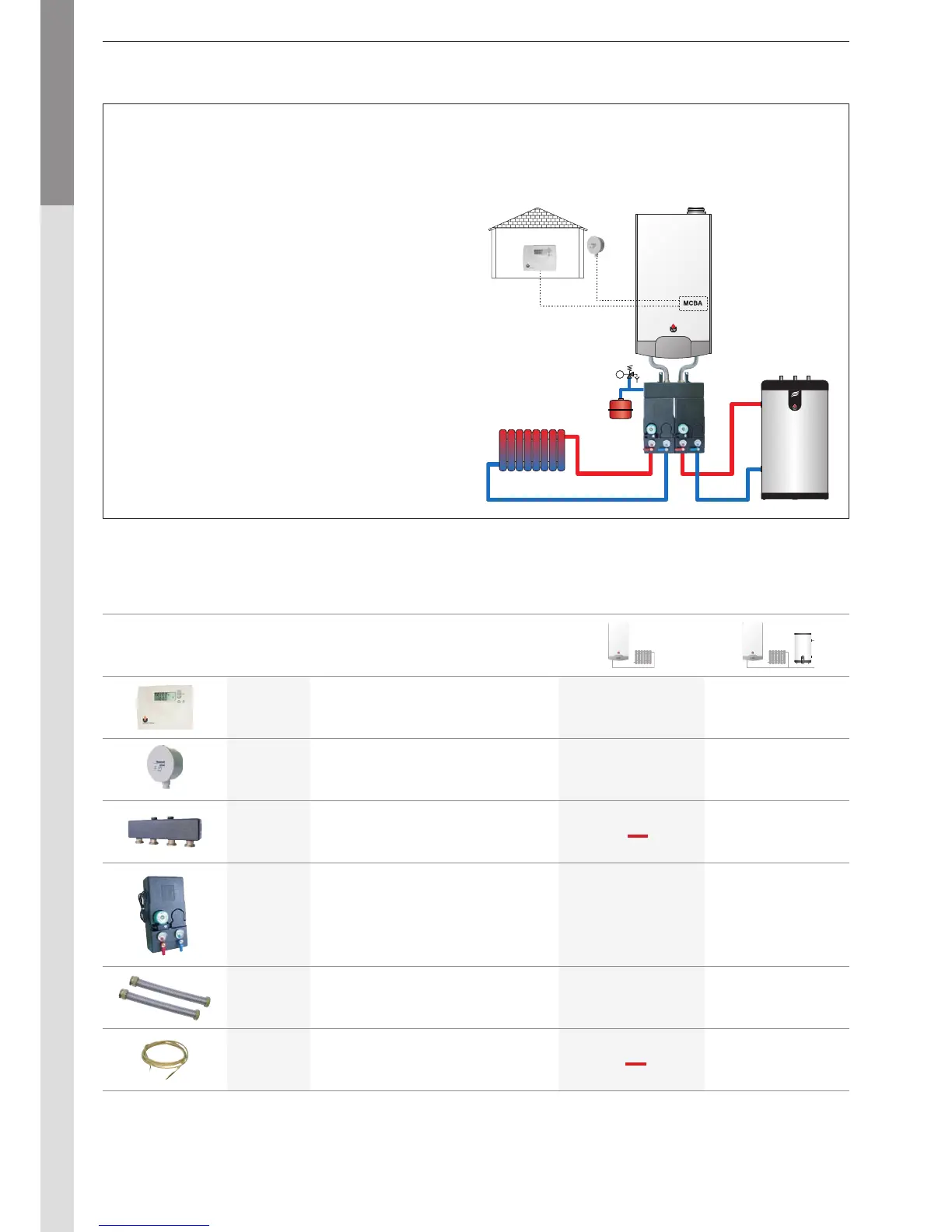

CONFIGURATION 1:
Installing a heating circuit and, optionally, a domestic hot water tank with regulation by a room
thermostat and an outdoor sensor.
